J-Dream Owner’s Manual
Install Back Wall

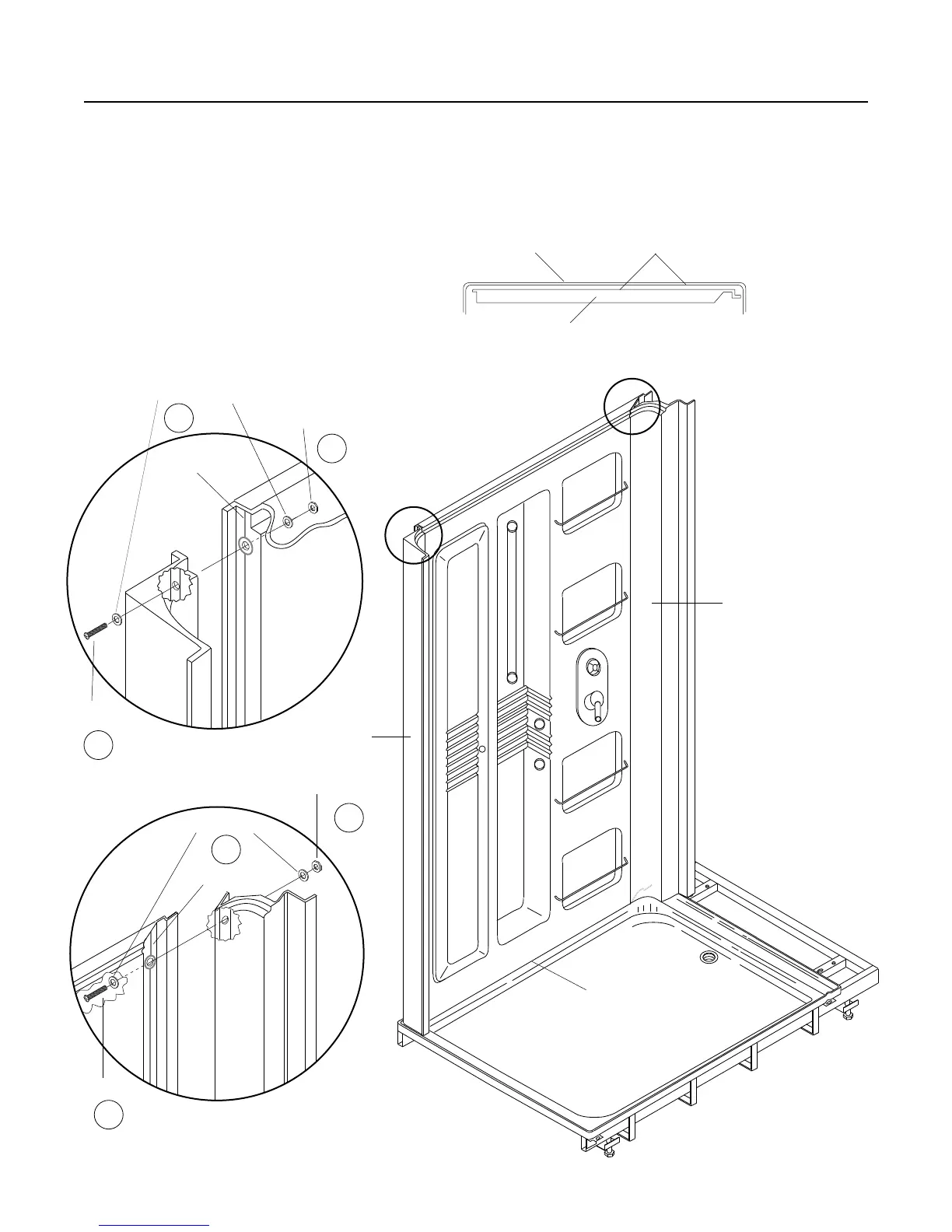

Caulk the bottom and sides of back wall where indicated in the illustrations below. Install fasteners. Now align the
back wall parallel to the pan lip to center the back wall between the seat wall and the end panel.
Screw (4)
B
Washer (8)
C
Nut (4)
D
Caulk
A
A
Screw (4)
B
B
Caulk
Washer (8)
C
Nut (4)
D
B
Seat wall not
shown in this
illustration for
clarity.
Caulk
Panel #3
Panel #2
Back wall
Pan lip
Parallel
