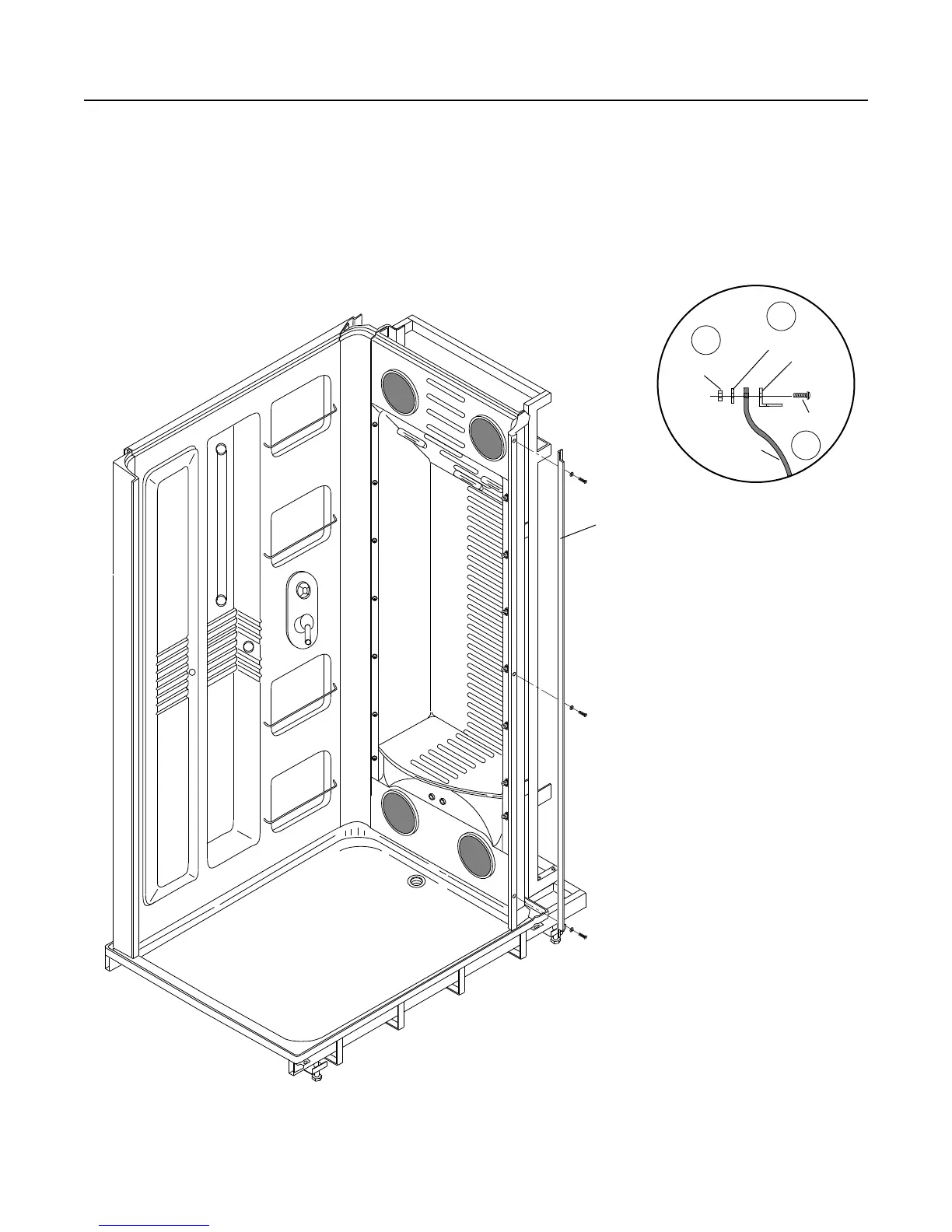

Attach Angle Bracket to Panel #1
Note that the angle bracket has a notch on the top and bottom. This notch does not get screwed against the side panels
but faces out as shown in the side view. Do not tighten the screws at this time as the angle bracket will have to
be aligned with the door frame holes.
J-Dream Owner’s Manual
17
B
Screw (3)
C
Washer (3)
Nut (3)
D
Top View
Angle Bracket
Angle
Bracket
Panel #1
