J-Dream Owner’s Manual
18

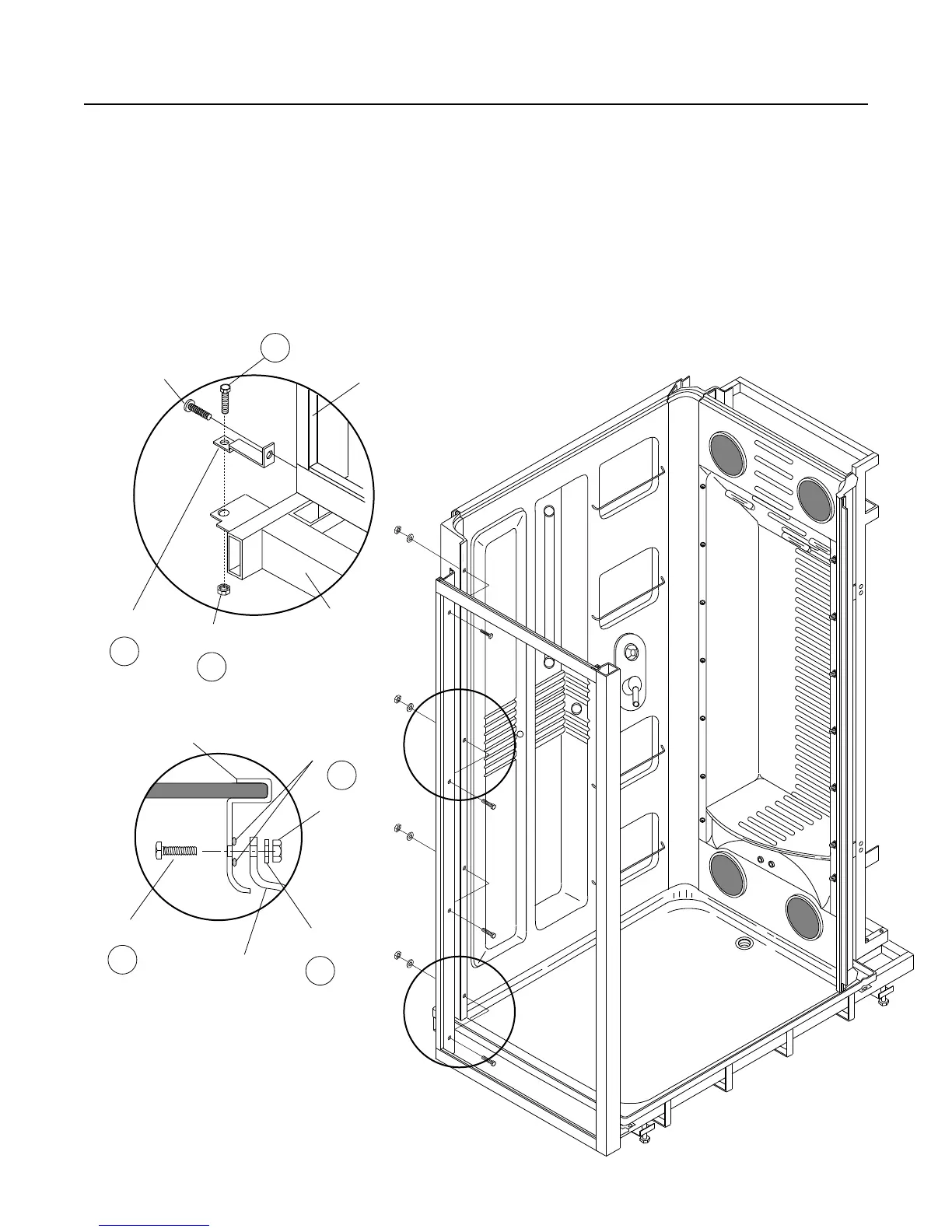

Attach End Panel
Note: End panel is glass for corner version and color-matched acrylic for niche version. Remove the screw located
on the bottom left side of the end panel (Illustration A). Attach the bracket to the end panel using this screw. Lift the
end panel onto the pan and align with Panel #3. Secure the End Panel and Panel #3 as shown in Illustration B. The
bracket is secured to the base frame as in Illustration A.
Screw removed
from end panel.
Bolt (1)
G
Bracket (1)
N
Nut (1)
J
End Panel
Base
Frame
Bolt (4)
B
Washer (4)
K
Nut (4)
D
End Panel
Panel #3
B
B
A
A
Caulk
