Page 16 of 32 IS2303VSP3J Rev-A
This pump can be controlled by third party pool controllers that are not software compatible using relay contacts to select
the speeds set in the Timer Menu (see section 6.7). In addition to this section you may also consult the applicable pool
control installation manual for electrical connection details. Once installed, Remote Control Mode must be set to Relay
Control in the pump Configuration Menu (see section 6.6). Preset Speeds 1-4 and Quick Clean are disabled when the pump
is remotely controlled. When inputs INP1-3 are activated via the pool control relay contacts, timer speeds 1-8 are selected
according to the following table (see section 6.7):
The number of speeds available depends on the number of auxiliary relays used as noted below:
1. Filter pump relay plus 1 auxiliary relays allows control of 2 speeds
2. Filter pump relay plus 2 auxiliary relays allows control of 4 speeds
3. Filter pump relay plus 3 auxiliary relays allows control of 8 speeds

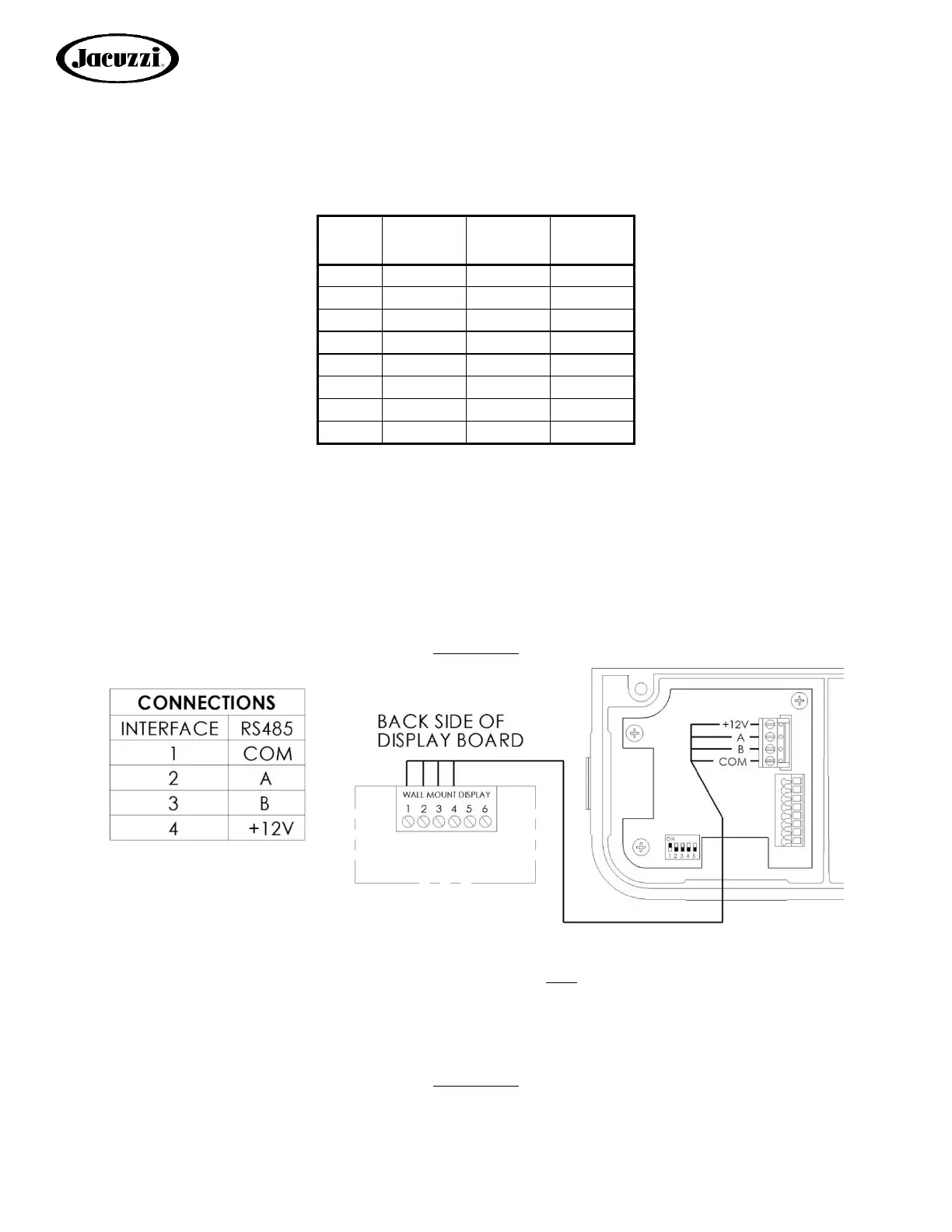

5.4. Wall Mounted Digital Control Interface Wiring (Optional)
Figure 5.4-1
Connection wire must be rated for a minimum of 300V, and may be up to 500 feet in length. Use removable 4-position
terminal block connectors for wiring connection to interface and motor drive PCB’s taking care to note the wire colors
and corresponding numbers next to the connectors. Terminal block must be installed with screws facing up to ensure
proper connection. DIP switch #1 must be “ON”.
