Jacuzzi Whirlpool Bath EL21000B 10/06
Electronic Control Panel Operation (with standard Chromatherapy lighting)
All tubs in this product line (except the Mito™ 6) come with electronic controls and standard Chromatherapy lighting. Read
and follow the operation instructions for the control system of your unit.
General Functions

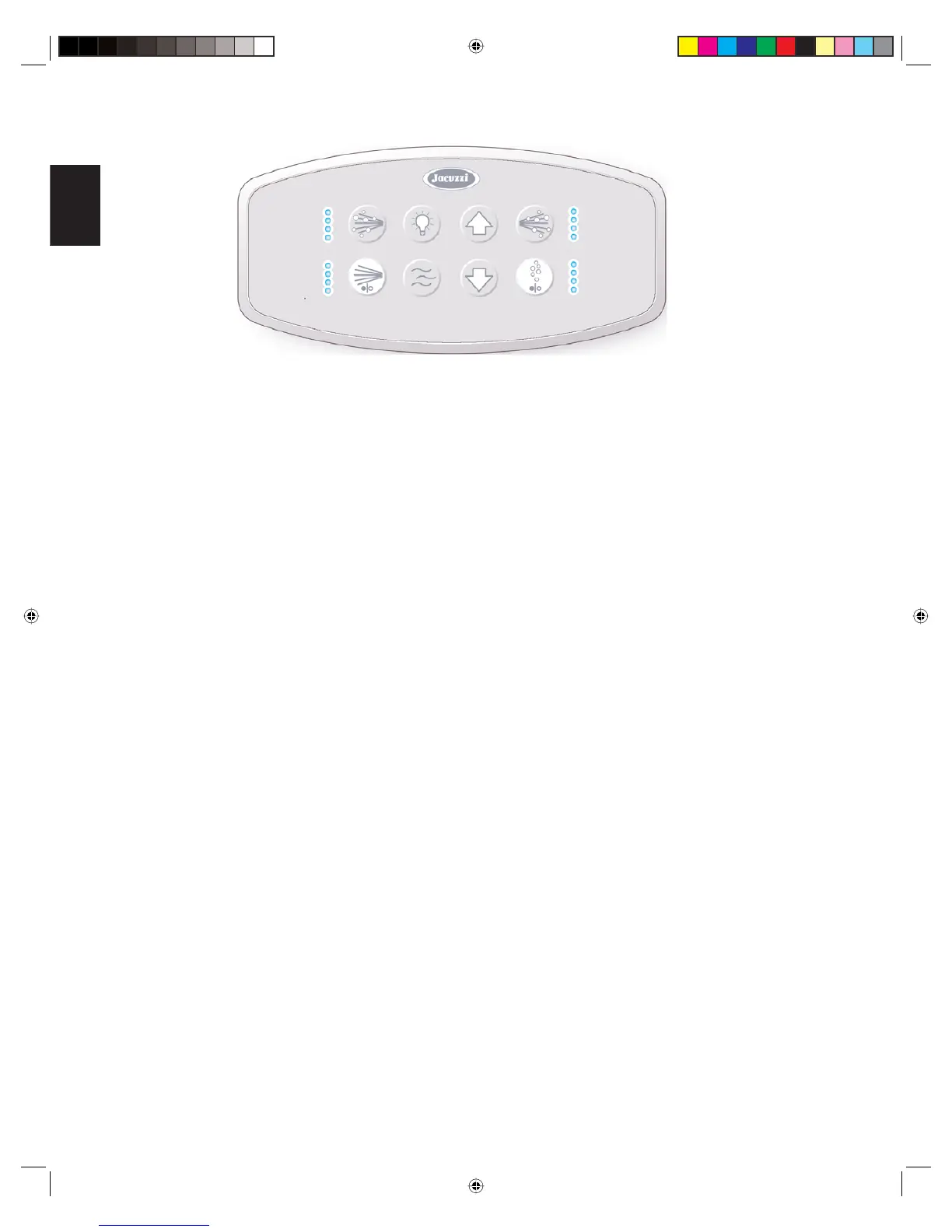

This Jacuzzi tub is equipped with a eight button electronic control panel. The eight button panel controls a two speed pump/
motor, Chromatherapy lighting, air controls, blower, and wave control. LED lights (on the control panel) indicate function levels.
When switching between functions, the LED for the inactive functions will dim and the active function will brighten.
The bath is equipped with two water level sensors. When the water level is below the sensors, the pump/motor can not be
activated. If the ON/OFF pump/motor button is pressed at this time, the pump/motor will not operate. When the water goes
above the water level sensor, the pump/motor can be activated. If the water level drops below the level sensor, the pump/motor
will shut OFF. To restart the pump/motor after the water level goes above the level sensor, the ON/OFF pump/motor button must
be pressed. The pump/motor will automatically shut off 30 minutes after the pump/motor was turned on.
When the water level is below the sensors, the blower cannot be activated using the control panel. The blower will activate
a Drain cycle and a Purge Cycle when two conditions are met: the water level is below the sensors and the controls have been
shut down. See Drain Cycle - Air Bath on page 21 for an explanation of these cycles.
NOTE: Ensure the water level sensors located inside the bath are free of any soap or dirt buildup.
CONTROL PANEL OPERATION (WHIRLPOOL AND AIR BATH) [EXCEPT MITO™ 6]
