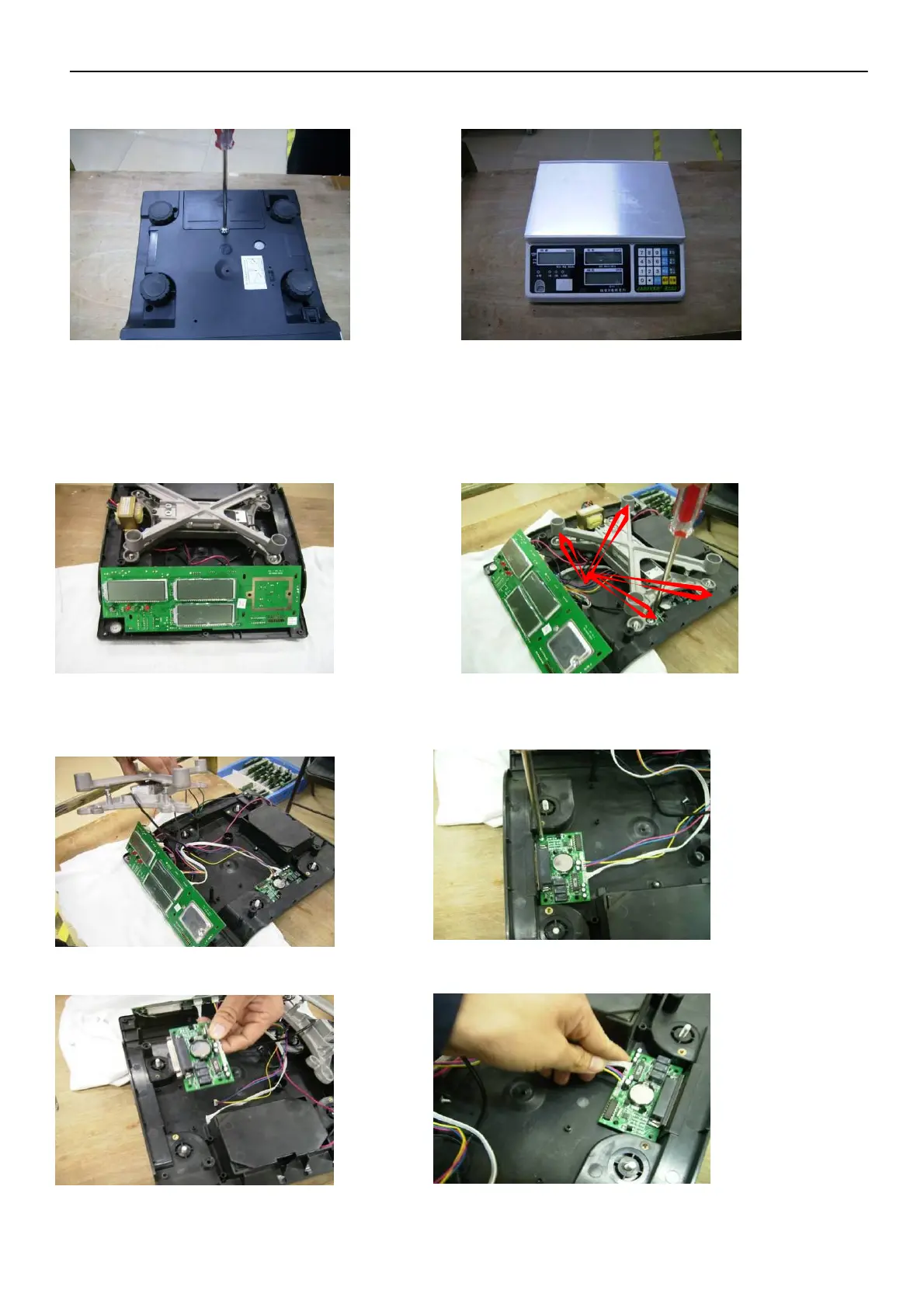

7.Install the battery cover and tighten 8. Install the stainless weighing pan
the fixing screw. properly.
6-4 RS-232 Replacement
1.Remove the upper housing(refer to 2. Loosen and remove the 4 fixing screws
5-1, step 1-4) to remove the load cell support module.
3.Lift the whole load cell support 4.Loosen and remove the fixing screw on the
Module out of the scale. RS-232 board.
5.Remove the old RS-232 board and 6. Install the wire connection(refer to 2 – 2)
install a new one.
