Page 2 WEIGHING SCALE

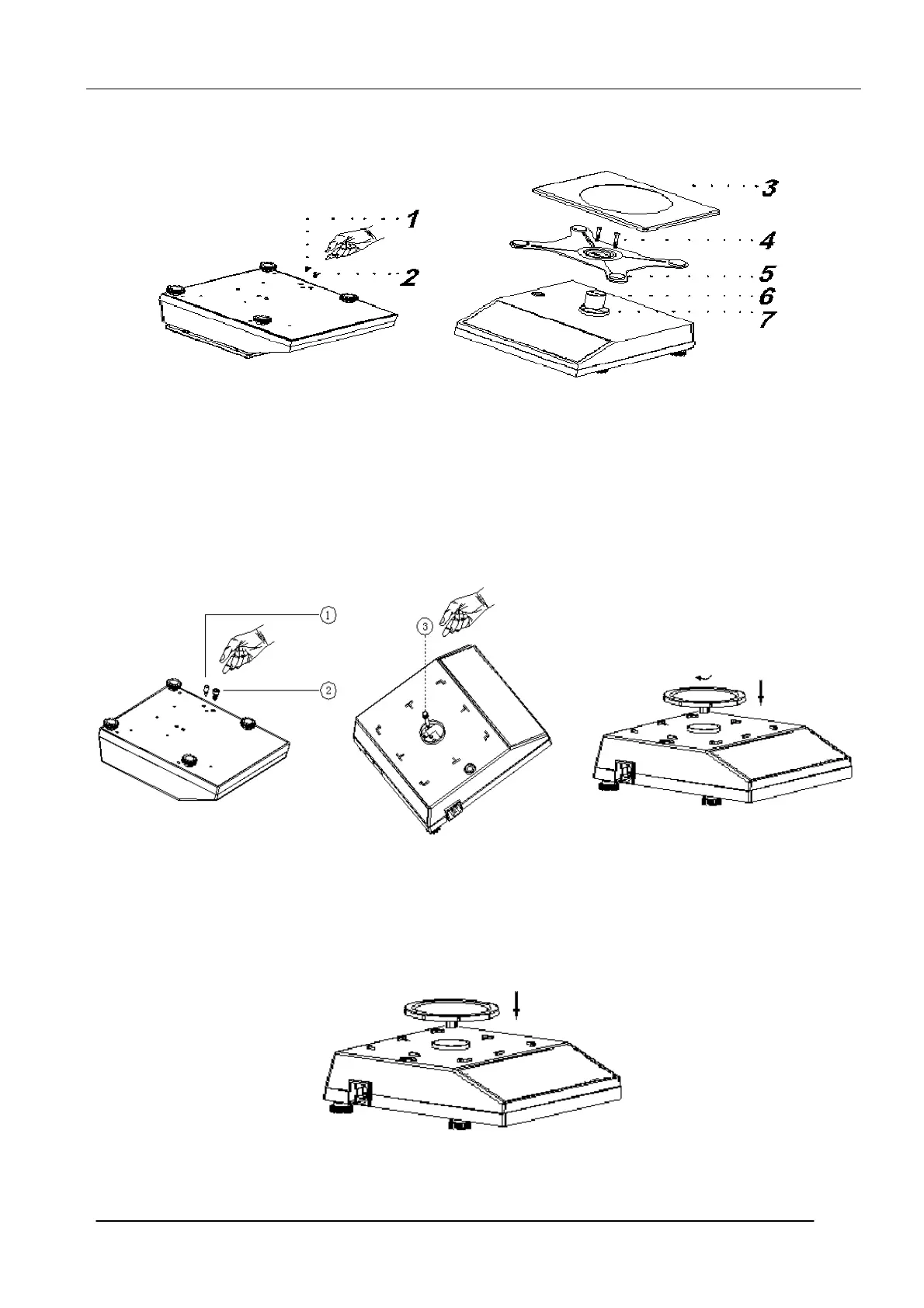

III. ASSEMBLY
A. Models LPWN-1530、 LPWN-7515、LPWN-1530K
1. Remove the protection copper screw [2], and then screw out the protection copper screw [1];
2. Align the three-hole aluminum column [6] and center of the three round holes on the scale
support [5] with the corresponding hole on the “-”shaped iron piece inside hole [7]. Then fix
the three-hole aluminum column [6] and scale support [5] on the “-”shaped iron piece of the
scale by tightening the M5 Allen screw [4] using an Allen wrench;
3. Put the stainless steel weighing pan [3] on the scale support [5].
B. Model LPWN-3075
1. Remove the protection copper screw [2], and then screw out the protection copper screws [1]
& [3];
2. Screw in the round weighing pan clockwise and downwards.
C. Model LPWN-150
1. Place the round weighing pan directly onto the scale support.
