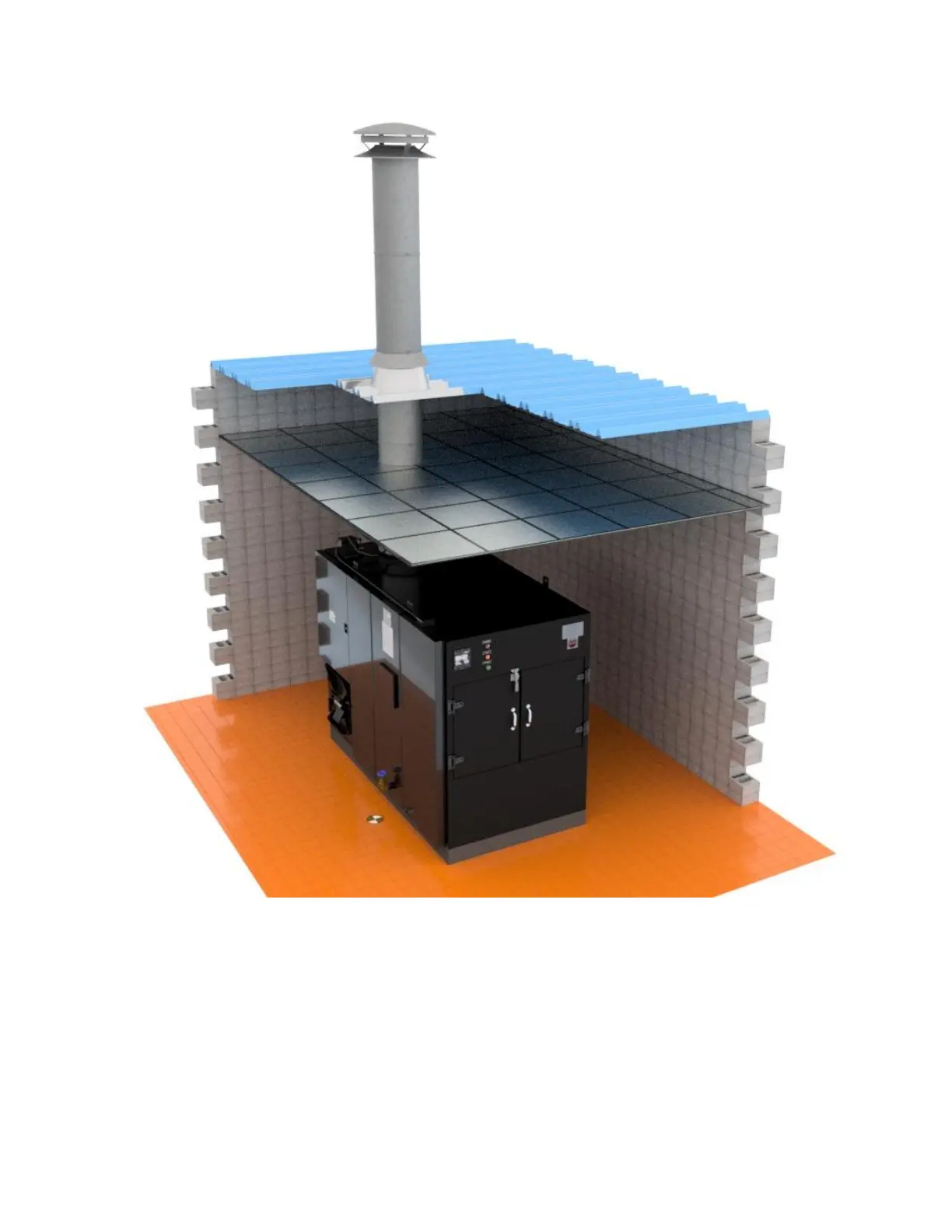

J&R 700E - Oyler Interior Installation with Direct Vent; Figure 1

LEGEND
1. RAIN CAP
2. COUNTER FLASHING
3. ROOF JACK
4. SMOKESTACK
5. ACCESS PANEL TO GEARBOX, MOTOR, GREASE FITTINGS
6. ACTUATOR MOTORS (6" HIGH)
7. ACCESS DOORS TO FLUES AND DAMPERS
8. FIREBOX DOOR
9. CONCRETE PAD (RECOMMENDED)
4 TO 6 INCHES HIGH OR USE STEEL BASE
10. DRAIN VALVE
11. FLOOR DRAIN (RECOMMENDED)
12. J-BOX FOR ELECTRICAL CONNECTION
13. THERMOSTAT AND CONTROL SWITCHES
Figure 1
2
1
3
4
6
12
13
8
10
11
5
9
Oyler Interior Installation with Direct Vent
22
7
