J&R 700E - Exhaust Hood Design

SHEET 1 OF 1
DWG NO
Oyler Under Hood-
TITLE

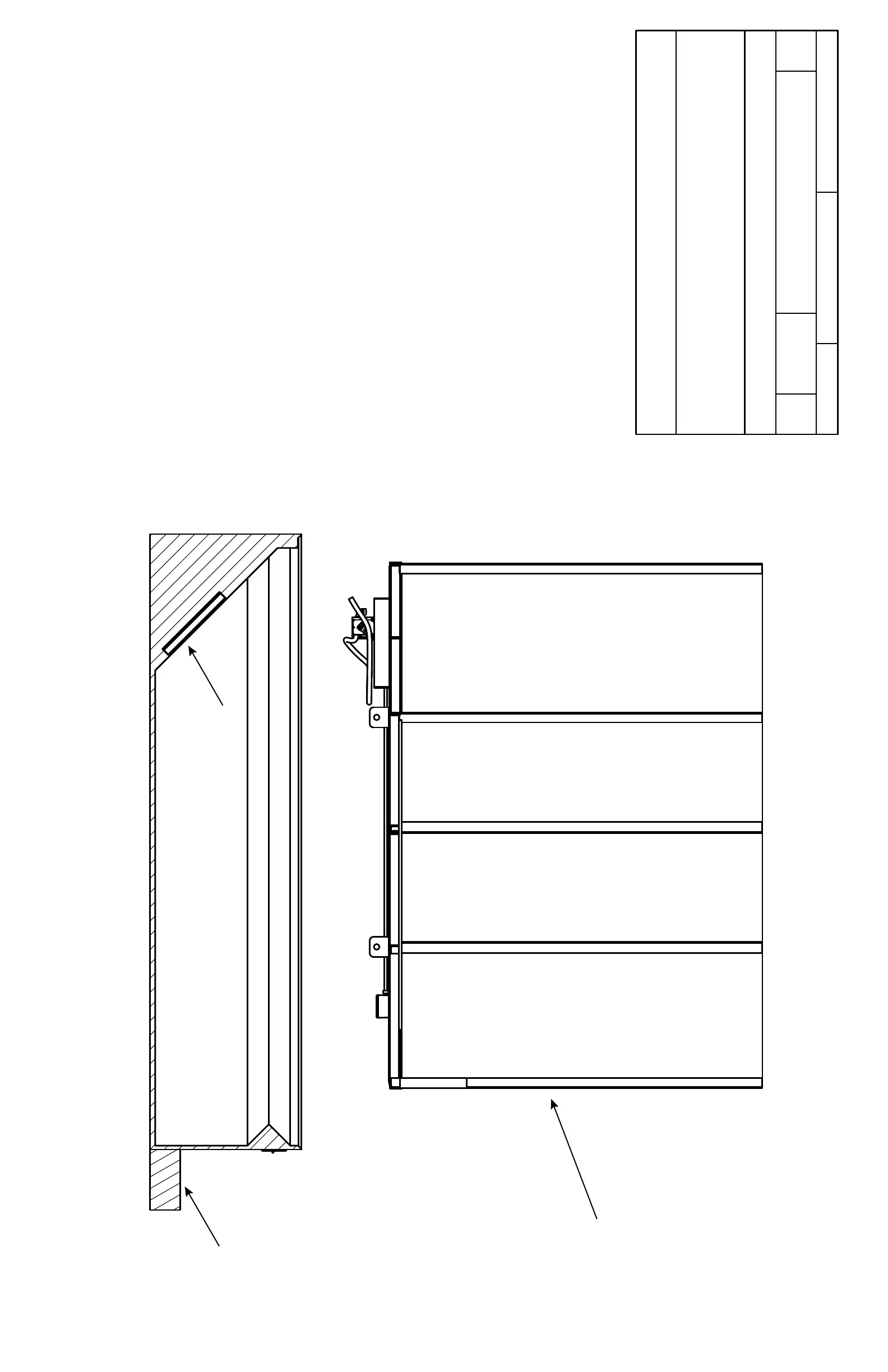

Oyler Section-Through View - Under Hood
SIZE
B
SCALE
J&R Manufacturing, Inc.
REV
Scott Higgins
3/28/2017
DRAWN DATE
Make-up air
Filter Bank
Exhaust Hood Design Parameters for Oyler Ovens
1. 12 inch overhang at front of unit.
2. 6 inch overhang, non-active sides and rear (no rebox).
3. 12 inch overhang on rebox side (or rear, for rear rebox units).
4. Filter bank always over chimney connector.
5. Hood elevation: bottom of hood to be a minimum of 2 inches
above top of oven( including base if any).
Oyler Model/ Hood Hood Exhaust Firebox Location Length (in.) Width (in.) Volume (cfm) 700 Left or Right 122 73.75 4300 700 Rear 137 67.75 4000 1300 Left or Right 137 85.5 5000 1300 Rear 152 79.5 4700
OUR RECOMMENDATIONS
Typical Oyler Oven
Front Oven Doors
Figure 5A
EXHAUST HOOD DESIGN
Always verify with hood and re supression vendors and AHJ
1/16
27
