Roof

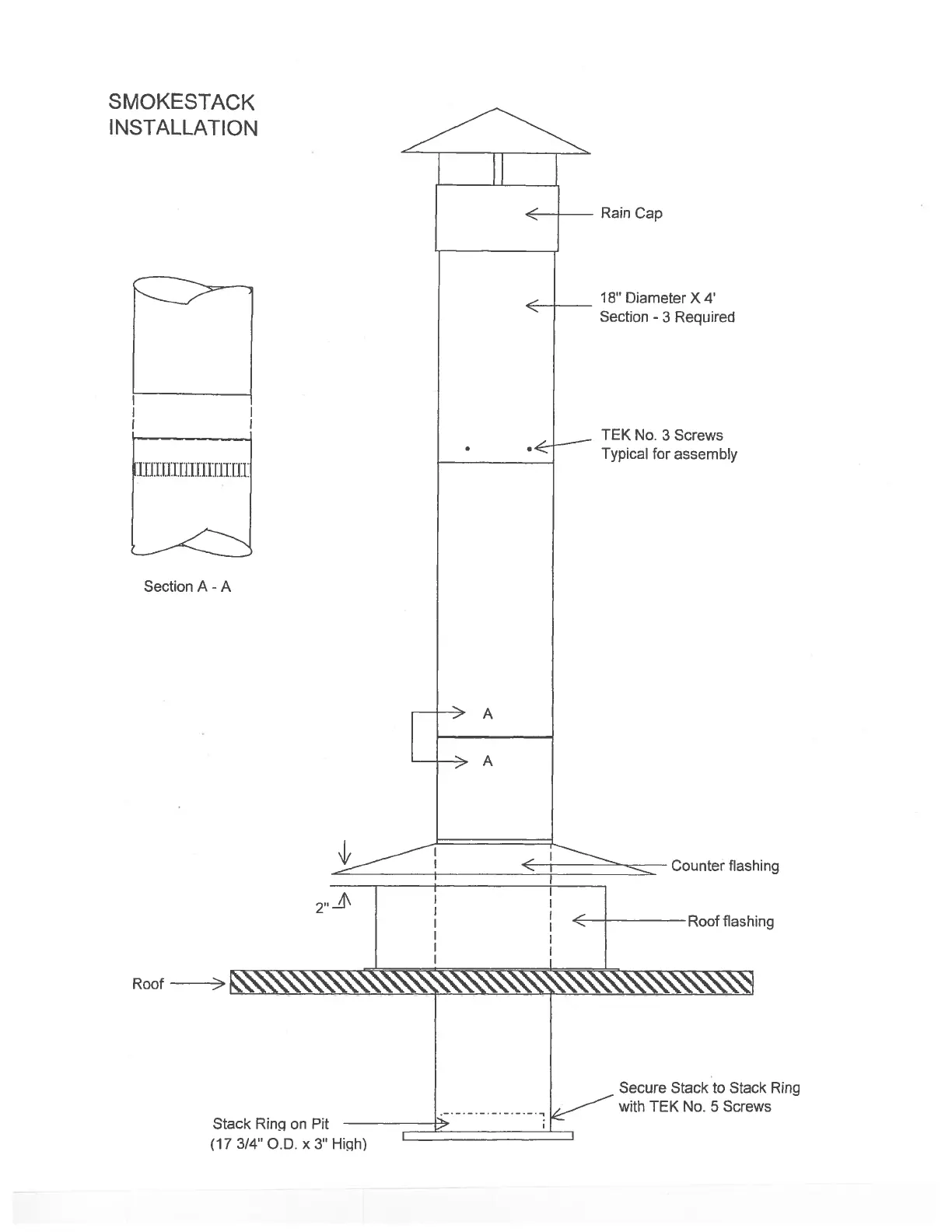

SMOKESTACK
INSTALLATION
:Iu:uIr[i:1IIull:[II:
Section
A - A
Rain
Cap
18”
Diameter
X 4
Section
- 3
Required
TEK
No. 3 Screws
Typical
for
assembly
Counter flashing
Roof
flashing
Secure
Stack to Stack Ring
with
TEK
No. 5
Screws
Stack Rinq
on Pit
(17
3/4” O.D. x
3”
High)
Figure 5B
28
(Single wall smokestack-
only for use when no
combustibles are present)
