Jandy AquaLink RS series Installation Manual

Page 37

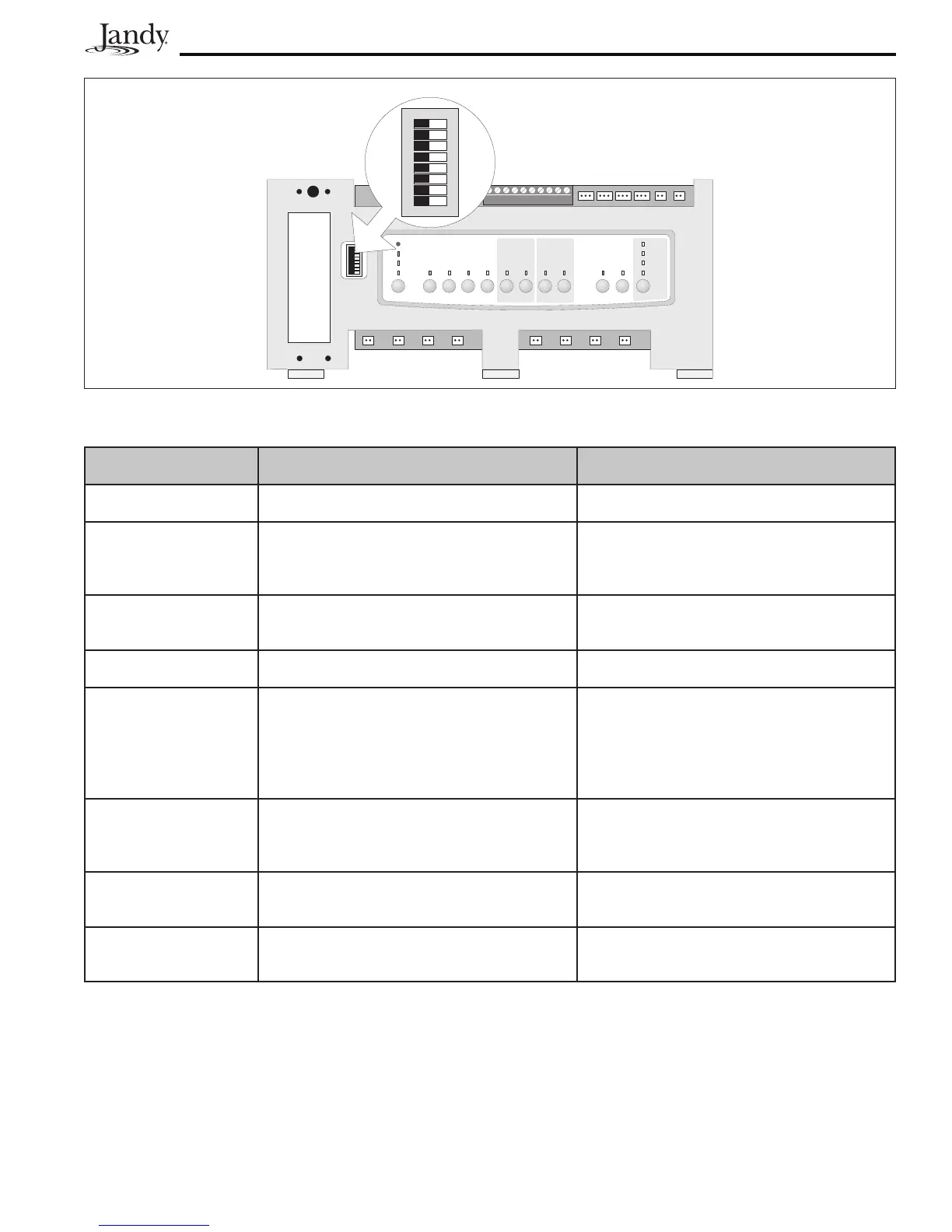

7.2 DIPSwitchSettingsforPool and Spa Combination
DIP Switch # OFF ON
1 AUX1= any equipment AUX1= Pool Cleaner
2 AUX2= any equipment AUX2= Low Speed for a two-speed filter
pump.
Filter pump circuit becomes High Speed.
3 AUX3= any equipment AUX3= Spa Spillover effect- Combination
controls only.
4 Heater cool down operates. Heater cool down disabled.
5 Normal operation Factory adjustment- when this switch is on,
temperature delays are eliminated and solar
temperature is displayed.
Do not leave this switch in the ON
position.
6 Spare Aux activates with Filter Pump when
Spa OFF.
No change on Revision "HH" or older PPD.
With Revision "I" or newer, Spare AUX
operation is reversed.
7 Spare No change on Combination or Only
Controls.
8 After thermostat setting has been reached,
heater will remain OFF for 3 minutes.
After thermostat setting has been reached,
heater will remain OFF for 5 minutes.
Factory setting is with all DIP
switches off.
1
OFF ON
3
4
5
6
7
8
2

Jandy AquaLink RS series Specifications

General

Weatherproof	Yes
Automation	Yes
Expandability	Yes
Smartphone Control	Yes
Power Source	120V AC
Communication	RS-485
Humidity Range	0% to 95% non-condensing
Maximum Load Capacity	Varies by model
Dimensions	Varies by model
Weight	Varies by model
Compatible Devices	Jandy pumps, filters, heaters, lights, valves
Wireless Control	Optional (with iAquaLink)
