Jandy AquaLink RS series Installation Manual

Page 7

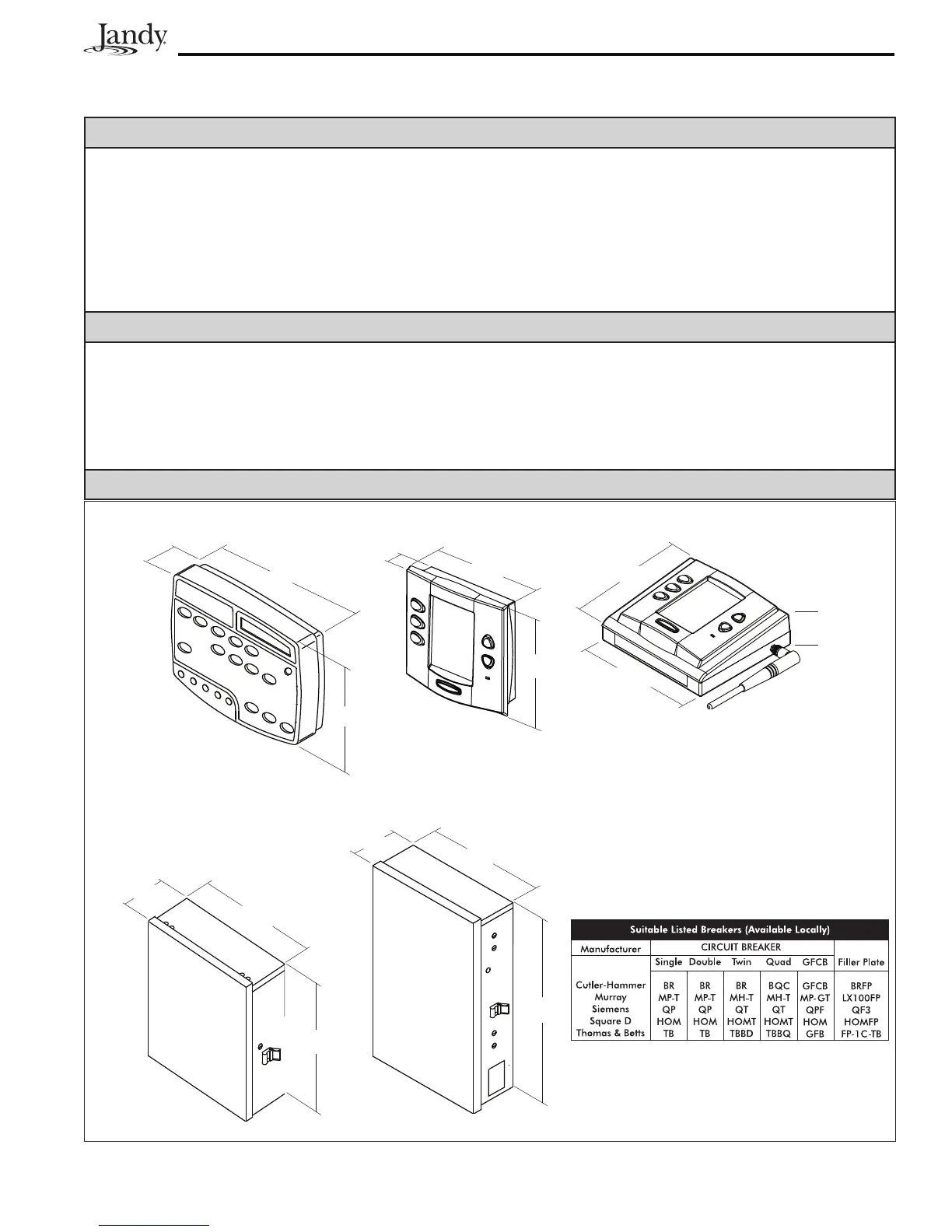

2.2 SystemComponentSpecicationsandDimensions
Table 1
Specifications (USA and Canada)
Power Supply 120 VAC; 60 Hz; 3 A
Contact Rating High voltage - 25 A; 3HP @ 240 VAC
1½ HP @120 VAC
1500 Watts Incandescent
Low Voltage - Class Two, 1 A @ 24 VAC
Service Switch All Circuits (located at Power Center in Service Mode)
Specifications (European)
Power Supply 230-240VAC; 50/60 Hz; 3 A
Contact Rating High voltage - 25 A; 3HP @ 240 VAC
Low Voltage - Class Two, 1 A @ 24 VAC
Service Switch All Circuits (located at Power Center in Service Mode)
Dimensions
8"
5"
1¼"
5½"
1½"
5"
4½"
4½"
1¼"
All Button
Control Panel
OneTouch
Control Panel
Wireless Control
Panel
Standard
Power Center
5"
14½"
13¾"
Sub-Panel
Power Center
20"
14½"
5"

Jandy AquaLink RS series Specifications

General

Weatherproof	Yes
Automation	Yes
Expandability	Yes
Smartphone Control	Yes
Power Source	120V AC
Communication	RS-485
Humidity Range	0% to 95% non-condensing
Maximum Load Capacity	Varies by model
Dimensions	Varies by model
Weight	Varies by model
Compatible Devices	Jandy pumps, filters, heaters, lights, valves
Wireless Control	Optional (with iAquaLink)
