Jandy AquaLink RS Troubleshooting Manual

A Standard Relay's coil is supplied 24 VDC from the Power Center PCB via one of the two driver chips.
When 24 VDC is received by the relay's coil wires, it closes the contacts that complete the circuit to turn on the
equipment (i.e., power supplied to Line 1 goes out Load 1 to the equipment).
Standard Relays may be wired to activate a 110 VAC circuit (e.g., Line 1/Load 1) or a 220 VAC circuit
(e.g., Line 1/Load 1 and Line 2/Load 2).
NOTE: If a relay's coil wires are shorted, or an AC relay coil is plugged into a relay socket, when that circuit is
activated, it will damage one of the two relay Driver Chips (Part No. 3814) on the Power Center PCB. (These
chips can be replaced/see Page 4).
Specification:
Maximum Contact Ratings:
3 hp at 220 VAC
1 1/2 hp at 110 VAC
25 amps - Inductive
1500 watts - Incandescent
Relay Coil: 24 VDC
Resistance across coil: 0.300K Ohms
Amperage draw of coil: 0.10 Amps
Operation:

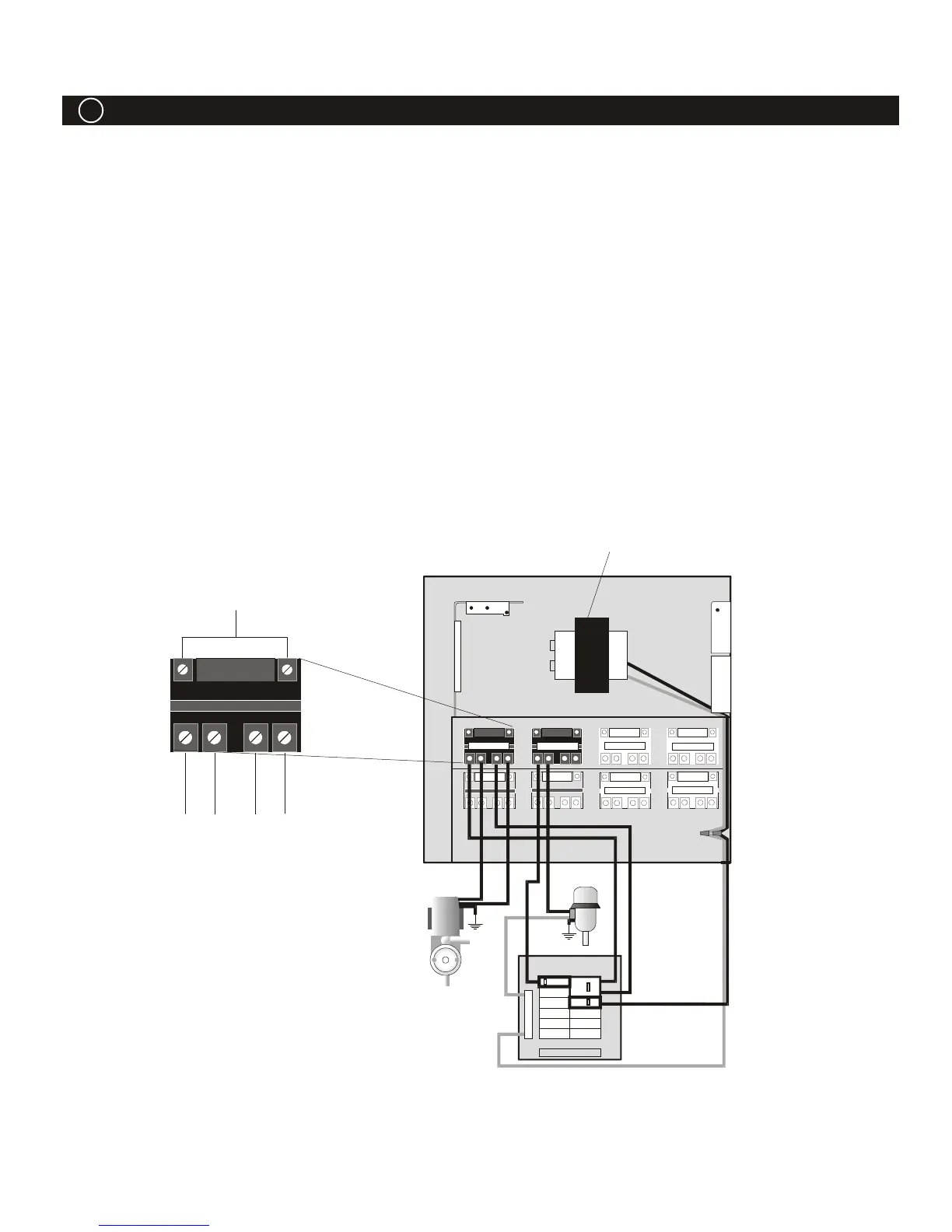

Wirin
g
for a Standard Rela
y
Relay Coil (24 VDC)
Transformer
120 VAC Primary
24 VAC Secondary
Filter P um p R e la
y
Aux. 3 Rela
y
Optional
Load 2
Line 2
Load 1
Line 1
Optional
Optional
Optional
Wire Nut to
120 VAC Power
Low voltage raceway (do not run high voltage in this compartment)
Breakers
Ground
Neutral
Blower
(110 VAC)
Filter Pump
(220 VAC)
120 VAC
PRIMARY
24 VAC
SECONDARY
Relay
Line 1 Load 1 Line 2
Load 2
AquaLink
®
RS Troubleshooting
5
3 Standard Relays
