in J-Box to ON, then press the RESET button in the
J-Box.
8. At the Transceiver J-Box, the Red and Green LEDs
fl ash alternately while the J-Box searches for the
correct channel.
9. When the correct channel is found, the J-Box LEDs
fl ash simultaneously and the AquaLink Touch
screen displays “channel found! set LEARN switch
in J-Box to OFF, then press J-Box RESET."
set LEARN switch in J-Box to
OFF, then press J-Box RESET.
channel found!
Power
10. At the Transceiver J-Box, return the Learn Switch
to OFF and press the J-Box RESET switch.
11. After a short time, the AquaLink Touch will return
to the “waiting for connection…” screen, then to
the home screen when connected successfully.
6.5.6 AquaLink Touch J-Box LED
Operation
Normal Operating Mode
Function LED Indication
Reset Both on continuous for 2
seconds
RS-485 Detected Both rapid blink simultaneously
for 2 seconds
Waiting for AquaLink
Touch Beacon
Green LED slow blink
RS/AquaLink Touch
Communication
Random blink of both LEDS
Channel Learn Mode
Function LED Indication
Searching for AquaLink
Touch channel
Alternate Red/Green blink
AquaLink Touch Channel
Learned
Both blink simultaneously

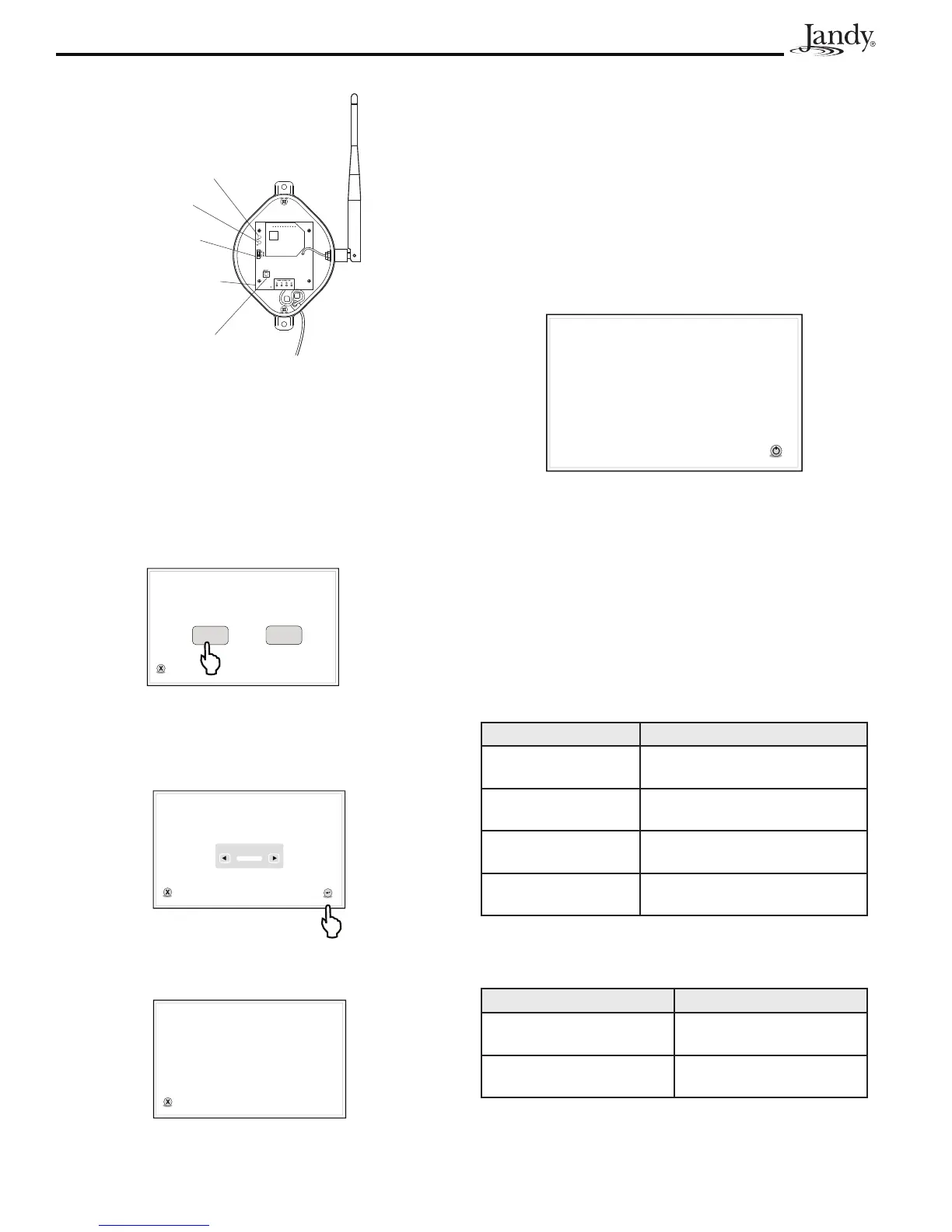

Transceiver
PCB
Reset Switch
Learn
Switch
Green LED
Red LED
2. At the J-box, slide the Learn Switch to ON. If it is
not doing so already, the AquaLink Touch screen
will display the “waiting for connection…” screen
after a maximum of 10 seconds.
3. From the AquaLink Touch “waiting for
connection…” screen, touch the SETUP button.
The screen displays “what would you like to set?”.
4. Select “RF Channel”.
Power
what would you like to set?
C
ancel
RF Channel
Address
5. The AquaLink Touch screen displays “select
desired RF channel, then press ENTER." Using the
arrow buttons, select the desired channel then touch
ENTER.
C
ance
l
Enter
select desired RF channel,
then press Enter.
RF Channel
7
6. The AquaLink Touch screen displays “set LEARN
switch in J-Box to ON, then press J-Box RESET.”
C
ance
l
set LEARN switch in J-Box to
ON, then press J-Box RESET.
scanning...
7. If it is not already set to ON, set the LEARN switch
