Page 6
AquaLink
®
Touch™ and Operation Installation Manual
Section 2. Overview of the AquaLink
Touch Controller
Welcome, and thank you for purchasing the AquaLink
Touch Controller!
The AquaLink Touch controller is a state-of-the-art fully
configurable touch-sensitive panel. It’s an ideal modern
and stylish panel to control pool, spa, sprinklers, salt
chlorinators and much more equipment -- all in one
compact package.
NOTE The AquaLink Touch controller is for indoor
use only. The controller is not weather proof or
water proof.
This document gives in struc tions for installing the Jandy
AquaLink Touch Controller. The in struc tions must
be fol lowed exactly. Read through the instructions
com plete ly before operating the equipment.
2.1 System Overview
The AquaLink Touch controller can be used in addition
to an existing AquaLink RS control system, however,
the firmware, in the power center must be updated to
revision Q or later. The AquaLink Touch controller is a
wall-mount or hand-held color touch screen that is pre-
configured with a basic setup.
The AquaLink Touch controller is a scalable system that
may be customized in any of the following ways:
1. Activate the equipment manually through the
DEVICES menu.
2. Program the equipment to turn on and off at
specifi c times.
3. Use the OneTouch
TM
buttons to create scene
settings with just "one touch" of a button. For
example, you can program the spa heater to heat to
101 degrees, spa light on, jets on, water features on,
and then name the result Romantic Scene.
Additionally, the AquaLink Touch case comes with a
flash memory card reader where you can import your
favorite digital photos to create your own custom
slideshow.
2.2 Basic Functions
The AquaLink Touch controller is operated by touching
the screen with the tip of your finger or you may use a
stylus pen or similar device.
When the screen is touched, an optional "keyclick"
provides audible feedback. The default setting for the
sound is ENABLED. See Section 6.5.2.
CAUTION
To prevent damage to the screen, lightly touch the
screen with the fingertip. Do not use any other type
of objects other than the finger or a stylus to touch
the screen. DO NOT use metal or hard pointing
devices that might scratch or damage the LCD
screen and may possibly void the warranty.
8”
4”
6”

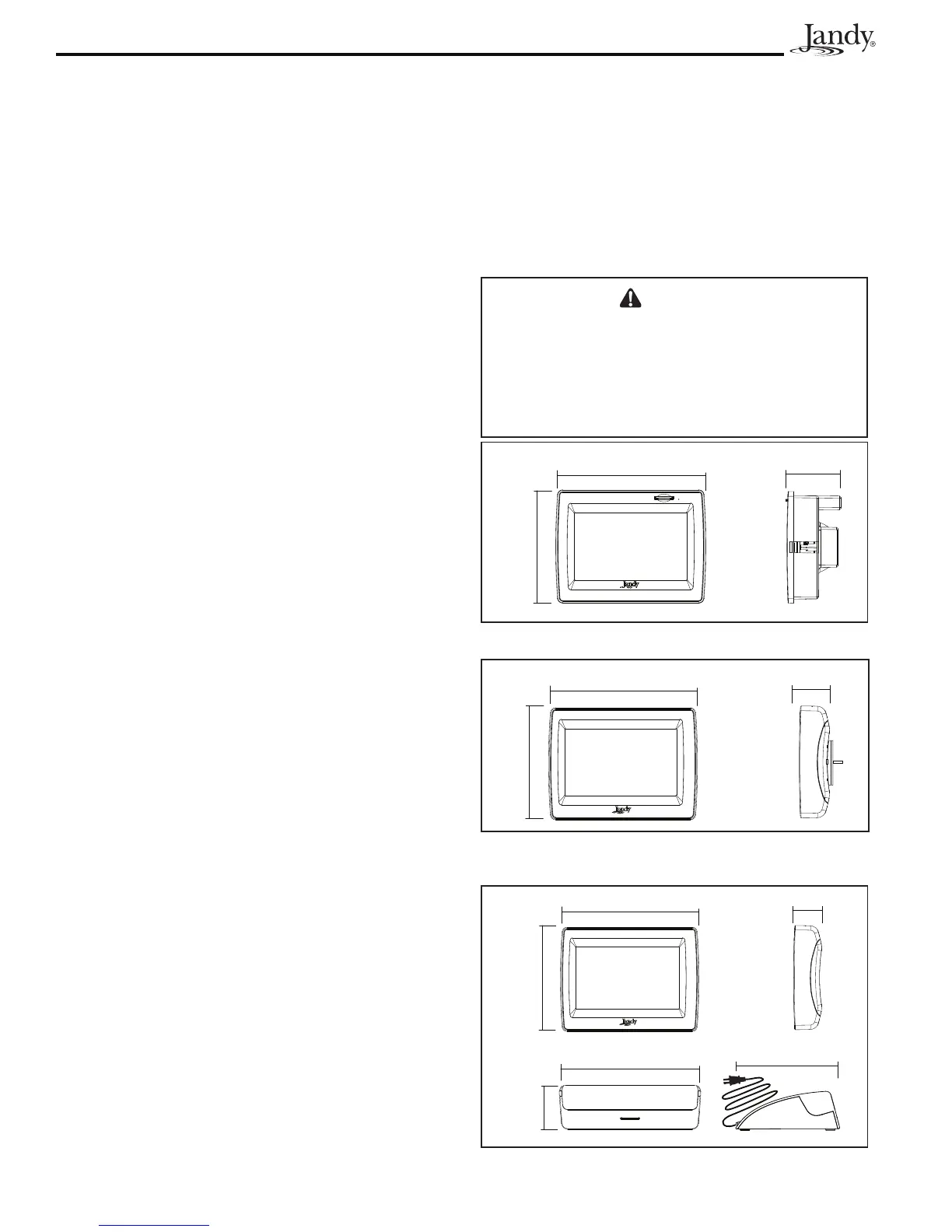

Figure 1. Wall Flush-Mount AquaLink Touch Controller
8” 2 ¼”
6”
Figure 2. Wall Surface-Mount AquaLink Touch
Controller
8”
2”
6”
8 ¼”
2”
6”
Figure 3. Wireless Controller with Charging Base
