Page 11
ENGLISH
Wireless Handheld Remote | Installation and Operation Manual

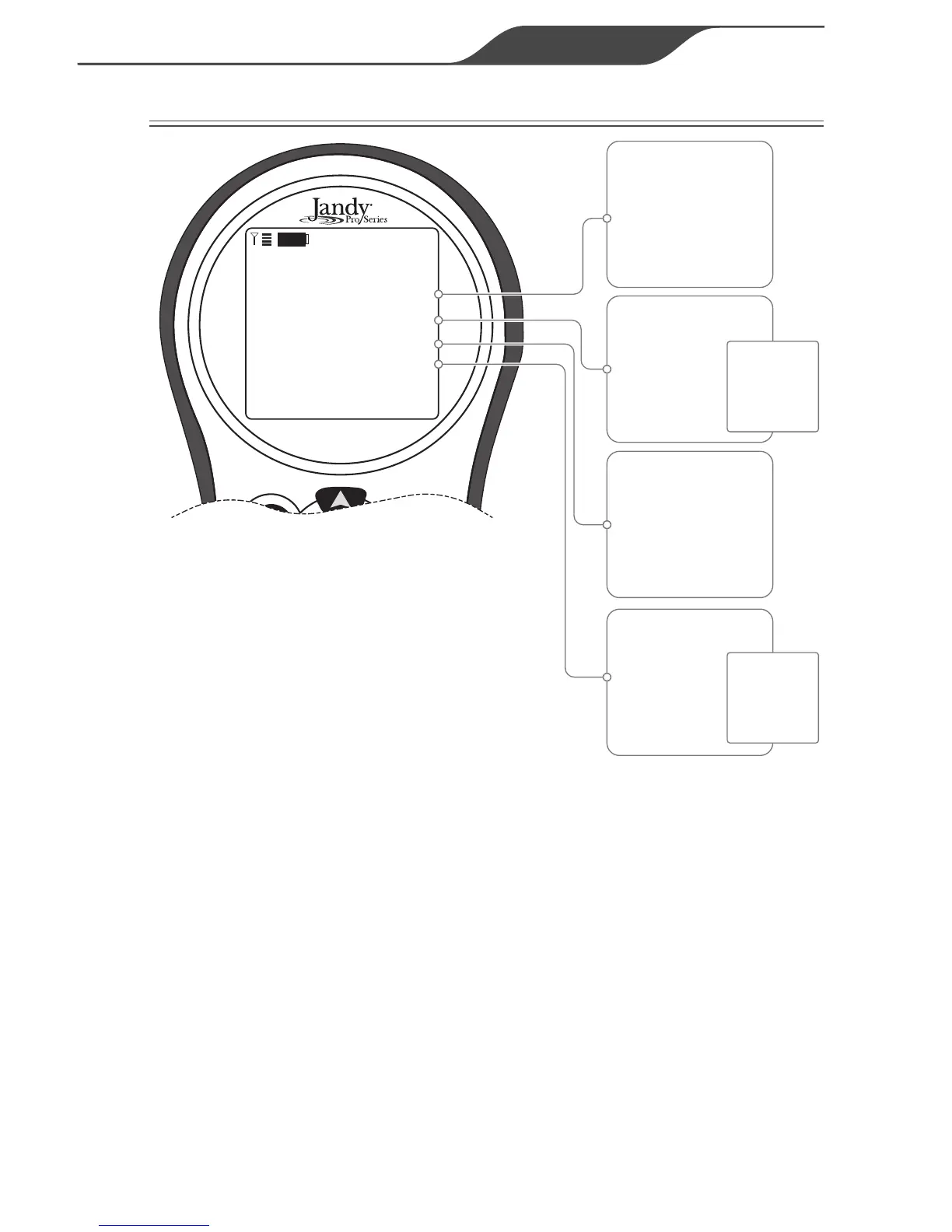

4.1 MENUS AND FUNCTIONS
1
2
select
back
R0444300
POOL
ON
ON
OFF
OFF
AIR
78°
80°
POOL MODE
POOL HEATER
SPA MODE
SPA HEATER
MENU
EQUIPMENT ON/OFF
FRI 10:30 PM
Activates heater and will heat
to pool set
temperature.
Temperature can
also be set manually
using the up and
down arrow buttons.
POOL MODE
Combination setting will
activate the following
equipment:
-Filter Pump
-Automatic Valves
(Rotate for pool return)
-Heater
(Will heat to set point for pool)
POOL HEATER
SPA MODE
Combination setting will
activate the following
equipment:
-Filter Pump
-Automatic Valves
(Rotate for spa return)
-Heater
(Will heat to set point for spa)
SPA HEATER
Activates heater and will heat
to spa set
temperature.
Temperature can
also be set manually
using the up and
down arrow buttons.
POOL HEAT
ENABLED
SET TO 80°F
Use ARROW KEYS
to set values.
SPA HEAT
ENABLED
SET TO 104°F
Use ARROW KEYS
to set values.
If the Wireless Handheld Remote is part of an AquaLink PDA system; addition-
al setup and programming options are available from the remote user interface
(UI).
If the Wireless Handheld remote is part of an AquaLink RS or Z4 system, setup
and programming will need to be performed from the system UI. The Wireless
Handheld Remote can then be used to activate and deactivate the equipment,
programs and settings.
For complete details please see:
-AquaLink PDA manual H0572300
-AquaLink RS OneTouch manual 6593
-AquaLink Z4 manual H0386600
Copies can be obtained by visiting www.zodiacpoolsystems.com or by contact-
ing technical support at 1-800-822-7933.
4.1.1 POOL MODE/SPA MODE
This combination setting will start
the lter pump at the appropriate
speed and rotate automatic valves
to the correct return. If SET TEMP
has been enabled the heater will also
engage and heat the pool or spa to
the temperature set point.
4.1.2 POOL HEATER/SPA HEATER
Activates or deactivates heater.
When heater is active, water
will be heated to temperature set
point established for the pool or
spa. The temperatures can also be
adjusted manually using the arrow
keys to adjust the temperature value
up or down.
