6 ¾"

10 ⅞"

NOTE See Table 4, column 7

for the value of 'A'.

Bolt Holes, Center to Center Front Edge of Union, to Center of Bolt

NOTE When installing the

pump, leave a minimum

of two feet (2 ft) of

clearance above the

pump for removal of

the strainer basket.

7 ¾"

12 ¾"

10"

7 ¾"

'A'

11 ⅛"

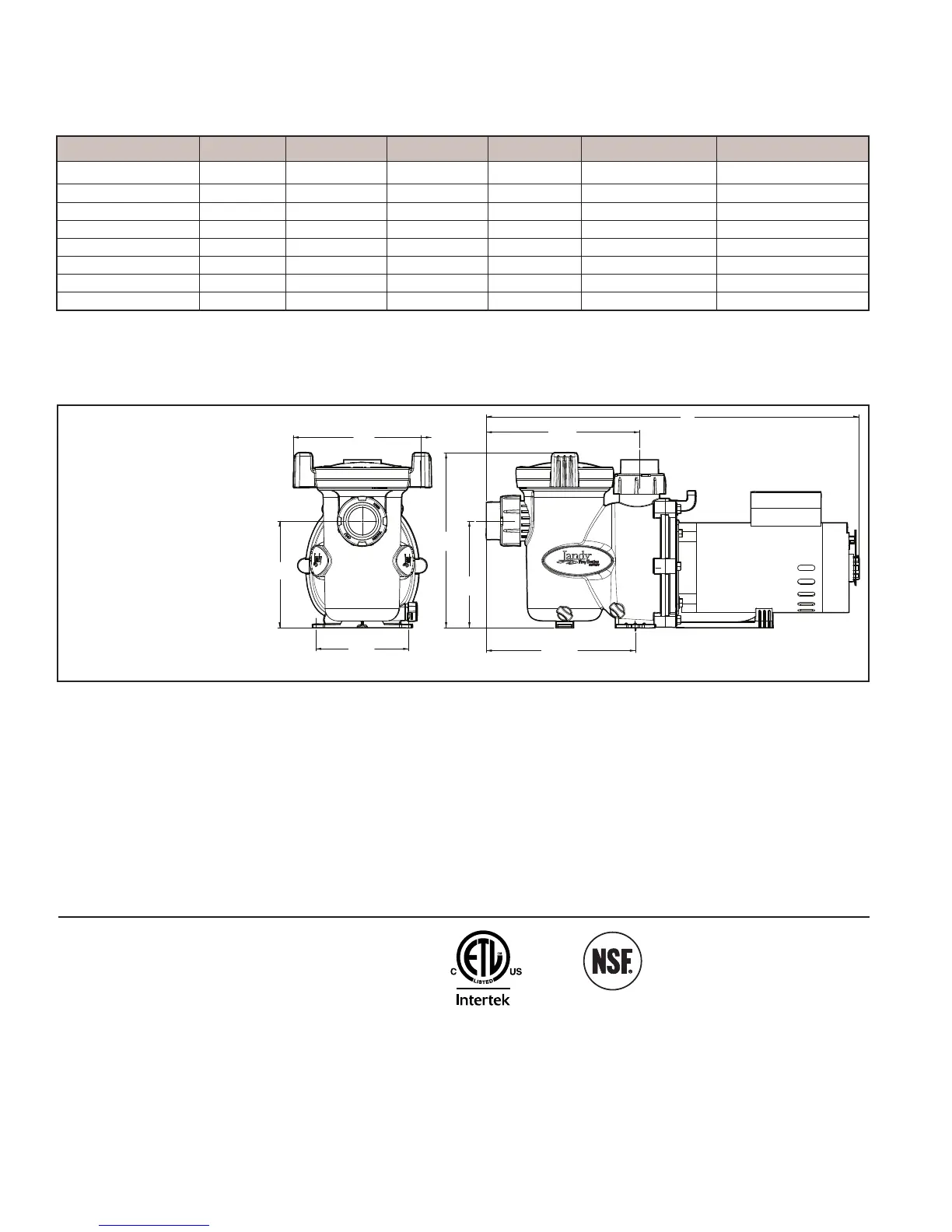

Figure 6. FHP Pump Dimensions (without Base or Spacers)

CONFORMSTOUL1081

CERTIFIEDTOCSAC22.2NO108

7.4 Physical and Operational Specications

7.4.1 Specications

Table 4. FHPM Pump Specications

Model No. HP Voltage Amps Pipe Size Carton Weight Overall Length 'A'

FHPM .75 0.75 230/115 5.4/10.8 1½-2" 40.6 25 3/16"

FHPM1.0 1.00 230/115 7.1/14.2 2-2½" 41.2 25 3/16"

FHPM 1.5 1.50 230/115 8.0/16 2-2½" 42.6 25 ½"

FHPM2.0 2.00 230/115 11.2/22.4 2-2½" 54.6 27 3/16"

FHPM 2.5 2.50 230 11.5 2½-3" 48.6 26 3/16"

FHPM1.0-2SPD 1.00 230 6.0/2.3 2½-3" 46.5 26 5/16"

FHPM 1.5-2SPD 1.50 230 7.2/3.0 2½-3" 48.0 26 9/16"

FHPM2.0-2SPD 2.00 230 10.0/3.5 2½-3" 52.9 27 11/16"

7.4.2 Dimensions

Table 1 shows the height of the FHP pump in the four (4) mounting congurations listed below. Figure 3 on page 8

shows drawings of these four (4) congurations.
