Jandy JRT Series User Manual

Page 4
ENGLISH
Jandy
®
JRT Series Heat Pumps
|
Installation and Operation Manual
1.6 Materials Needed For Installation
The following items are needed and are to be supplied
by the installer for all heat pump installations:
1. Plumbing connections (2”).
2. Level surface for proper drainage. (See equipment
pad for pitch requirements)
3. Suitable electrical supply line. See rating plate on
unit for electrical specications. A junction box is
not needed at the heat pump; connections are made
inside of the heat pump electrical compartment.
Conduit may be attached directly to the heat pump
jacket.
NOTE Flex conduit is recommended for connecting
the electrical supply wires to the heat pump so
that the front panel may be removed easily for
servicing.
4. Electric cutout switch that will interrupt all power
to the unit. This switch must be within line of sight
of the heat pump.
5. Watertight conduit to run the electrical supply line.
1.7 Specications
Suitable for indoor and outdoor use. Clearances shown
in Table 2 must be adhered to.
Water Pipe/Heater Connection
Plastic 2” PVC (Unions included)
Flow Rate
Maximum
Optimum
Minimum
70 gpm (265 lpm)
JRT2000R= 42 gpm (159 lpm),
JRT2500R = 48 gpm (182 lpm),
JRT3000R = 57 gpm (216 lpm)
JRT2000R/2500R = 20 gpm (76 lpm)
JRT3000R= 30 gpm (114 lpm)
Operating Water
Temperature
Minimum
Maximum
32° F (0° C)
104° F (40° C)
Maximum Working
Water Pressure 75 psi
Electrical Supply
Voltage Requirements
1-Phase 230 VAC 60Hz
Maximum Working
Refrigerant Pressure 600 PSI
Dimensions
See Figure 1 for heat pump’s dimensions and for
dimensions to critical connections.
Technical Specications
See Table 1 for the Jandy JRT heat pump technical
specifications.

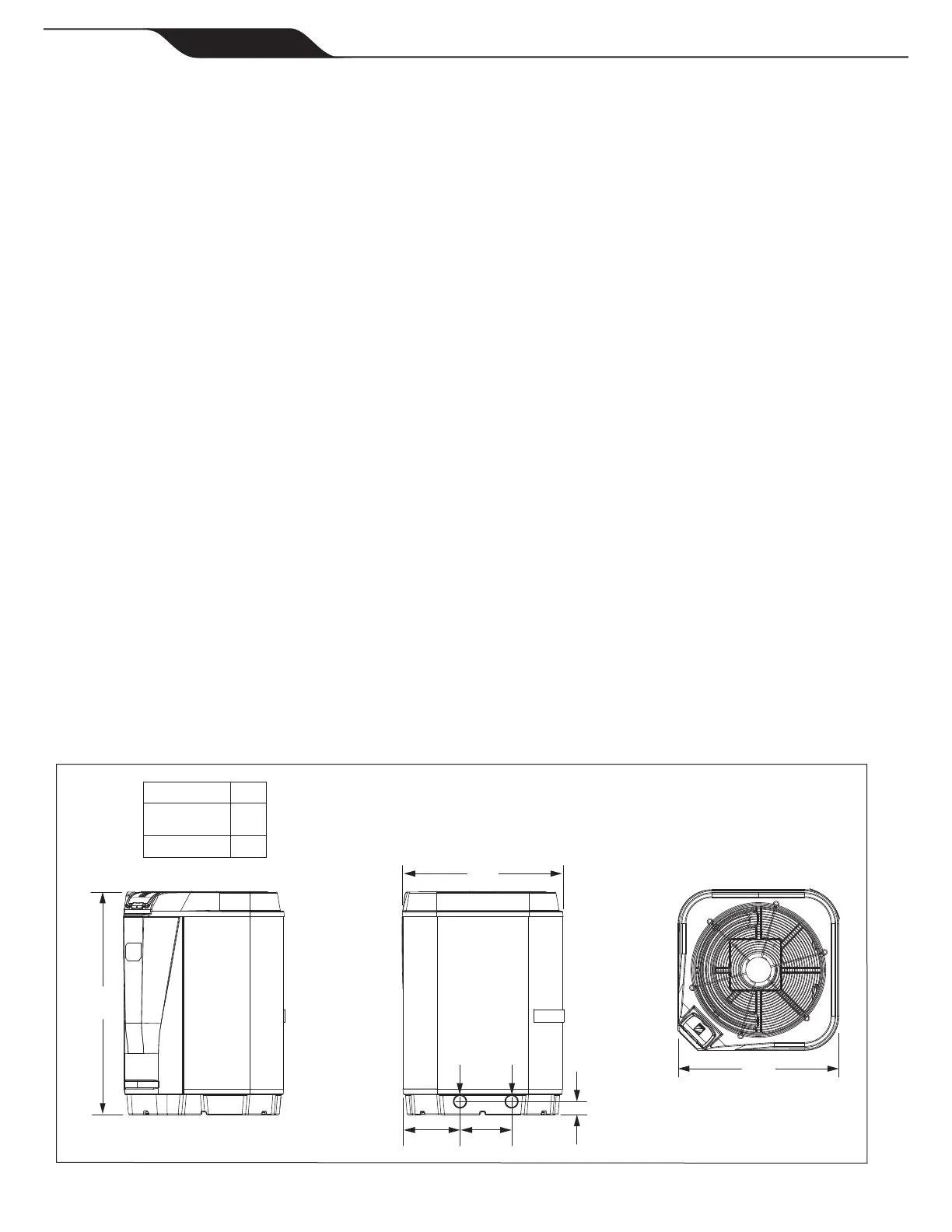

Figure 1. Jandy JRT Heat Pumps Dimensions
A
32”
32”
JRT2000R
JRT2500R
AMODEL
42”
45”
11.50”
10”
3”
JRT3000R
B
C
B. Water Inlet
C. Water Outlet
