Page 11
Jandy
®
Pro Series, WaterColors LED Lights
|
Installation Manual
1

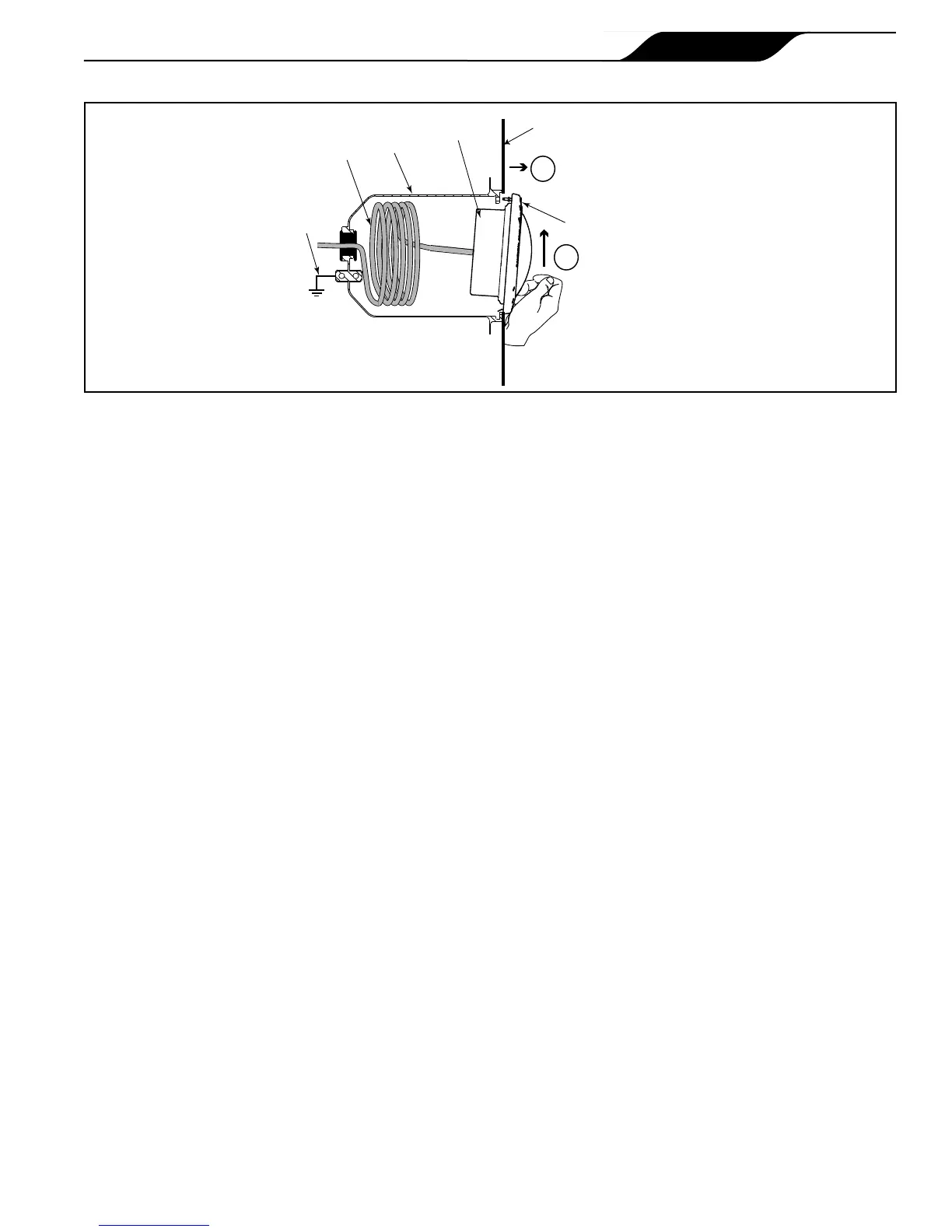

POOL WALL
Power
Cord
Niche
POOL LIGHT
ASSEMBLY
PILOT SCREW
Push up on
bottom of
light assembly
2
Power
Cord
Niche
SPA LIGHT
ASSEMBLY
SPA WALL
1
PILOT SCREW
Push up on
bottom of
light assembly
2
Unscrew pilot screw
and pull top of light
assembly away from
spa wall
Bonding
cable
Unscrew pilot screw
and pull top of light
assembly away from
pool wall
Bonding
cable
7. Plug in the quick disconnect wire (white
for the 12V and red for the 120V) onto the
terminal (AC1) of the light engine.
8. Plug in the quick disconnect wire (black for
the 12V and blue for the 120V) onto terminal
(AC2) of the light engine.
b. Large Light Engine (PCB) Replacement (120V
and 12V)
1. Remove three (3) nuts and washers.
2. Unplug the quick disconnect terminals from
the PCB.
3. Remove the light engine from the light
xture.
4. Place new light engine into the xture with
the orientation shown in Figure 8.
5 Secure the new light engine (PCB) with two
(2) nylon washers and two (2) nuts. Torque
to 12 in-lbs.
6. Plug in the white quick disconnect wire onto
the terminal (J2) of the light engine.
7. Plug in black quick disconnect wire onto
terminal (J6) of the light engine for the 12V
models; or terminal (J3) of the light engine
for 120V models.
8a. For 12V models, place a nylon washer on the
stud and place the green ground wire terminal
on the nylon washer and secure both with the
nut. Torque to 12 in-lbs.
8b. For 120V models, place the green ground
wire on the stud and secure with the nut.
Torque to 12 in-lbs.
6. Reassemble the xture.
a. If not already done, remove the gasket from
the glass lens and install a new gasket, P/N
R0451101 for the large light and R0400501 for
the small light, on the lens. On the small light,
remove the diverger from the lens.
Anewlensgasketmustbeusedeachtimethelightis
reassembled.
To Next Page
