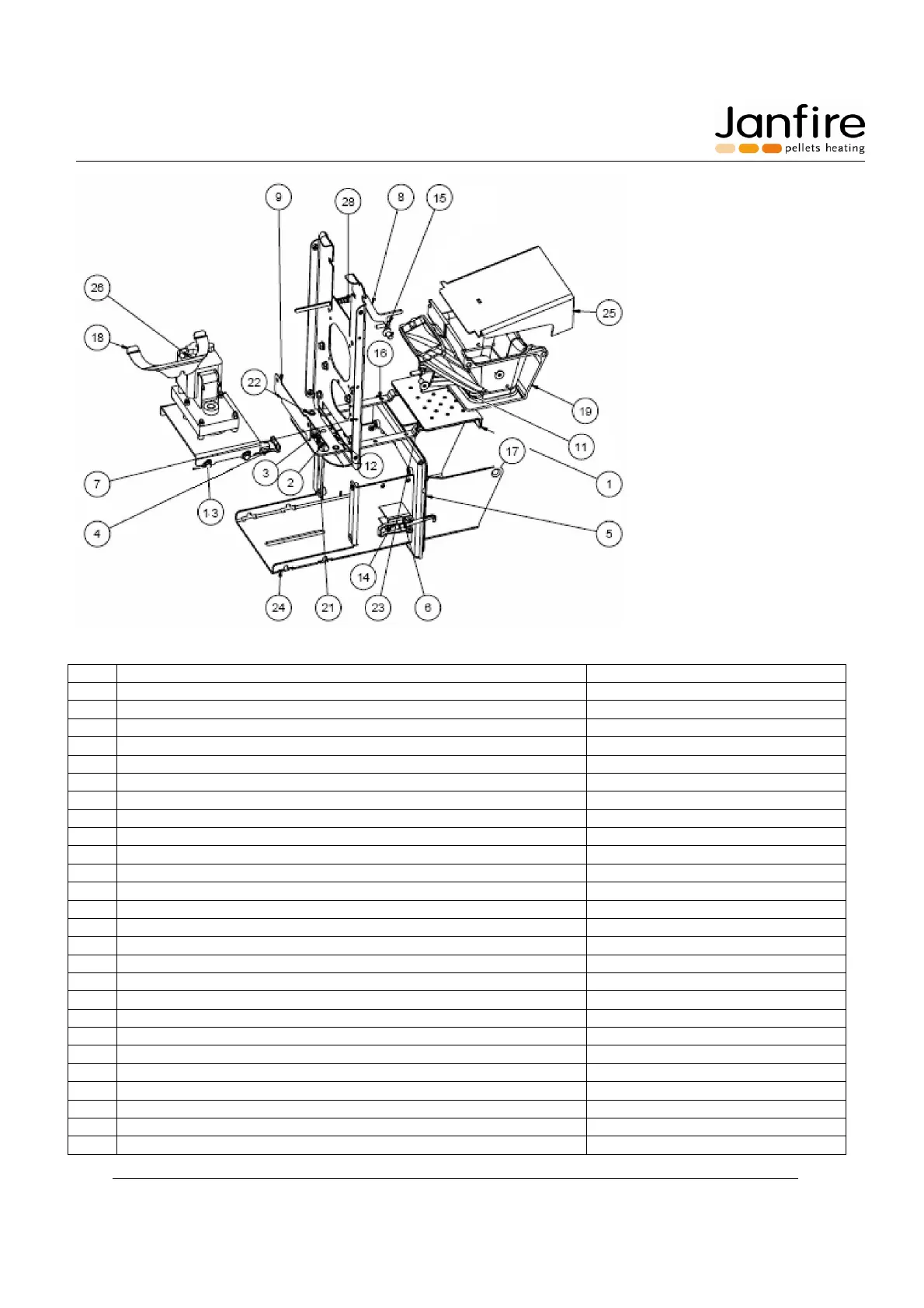

Figure 11. Parts breakdown of NH Burner
Description Part No.
1 Scraper Plate 11810001
2 Slide Bearing 8x10x15 11815011
3 Slide Bearing 8/10/15 x 09.5 11815016
4 Scraper Microswitch 71842003
5 Sealing braid 11820003
6 Burner latch 81871001
7 Vertical Chassis 11801020
8 Push arm 11802015
9 Air dam 11801022
10 Micro switch bracket 11801018
11 Type K burner bowl sensor/sensor cover 71842048/11802023
12 Allen head screw M4x10 80463005
13 (Not shown) Flange Screw M6x12 80661003
14 Latch screw M4x10 80460002
15 NA 80662003
16 Glide Bushings 4x4x3 11815006
17 NA Burning cup screws (countersink) 80863001
18 Spring clip 11801024
19 Burning cup 11810001
21 Blade wheel 11801032
22 Glide bushing 6x10x8 11815007
23 Drag arms 11802017
24 Bottom chassis 11802014
25 Flame deflector 11802006
26 Scraper motor assembly See Fig. 14
28 Arm spring 11865002
