ANNEX

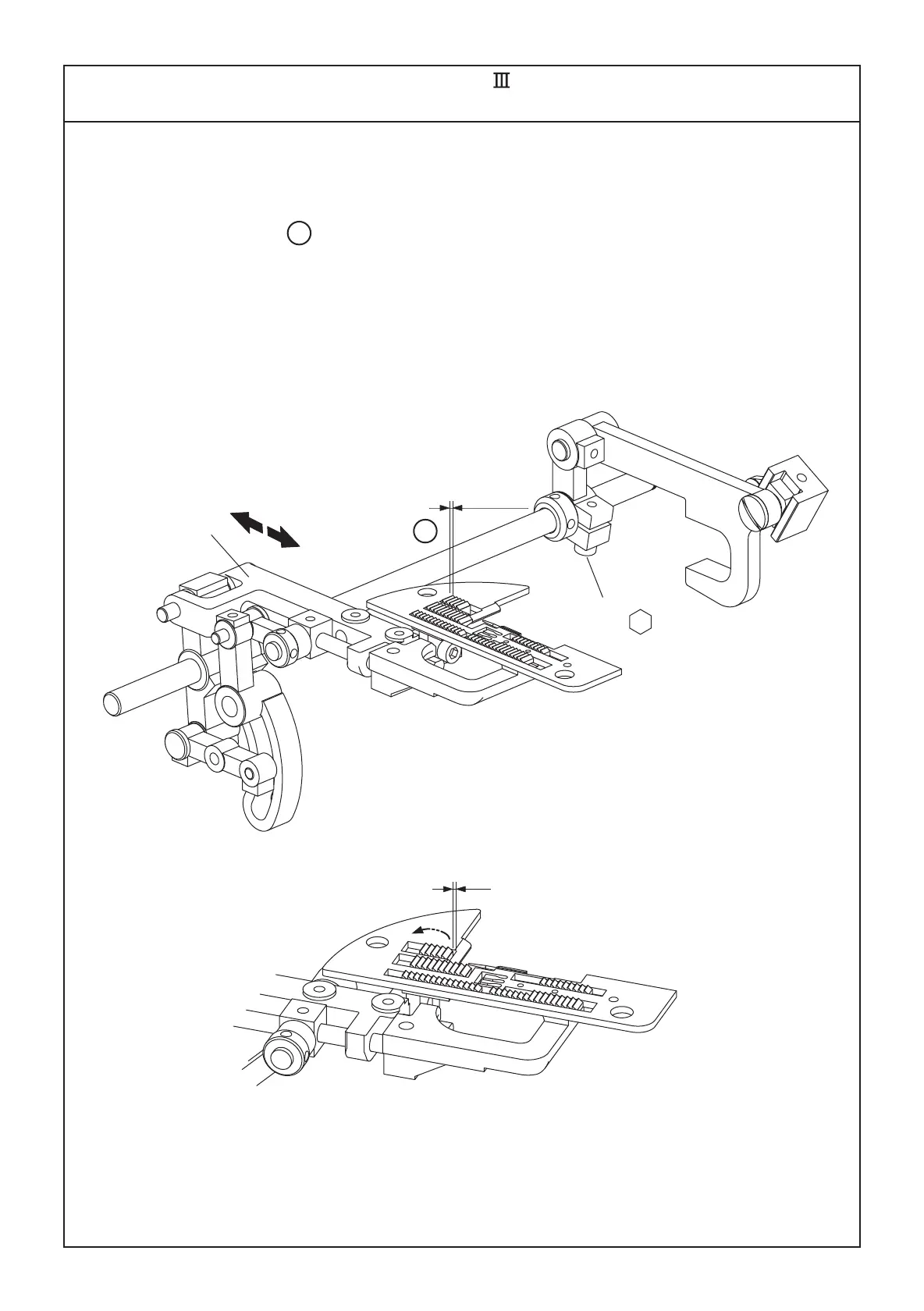

CLEARANCE BETWEEN FEED DOG AND NEEDLE PLATE
1.To adjust a clearance between feed dog and needle plate, set SL dialat "5"
and DF dialat "1". Turn the handwheel towards you until feed dog moves to far
rear position. Loosen screw "k" and move feed bar "m" back and forth to
obtain a clearance " F " of 0.3 to 0.5mm (Fig.1) Fasten screw "k".
2.Turn the handwheel towards you until feed dog moves to far front position. Check
and make sure if a clearance between feed dog and needle plate is 0.7mm.
(Fig. 2)
0.7
Fig.1
0.3~0.5mm
Fig.2
3mm
F
m
k
