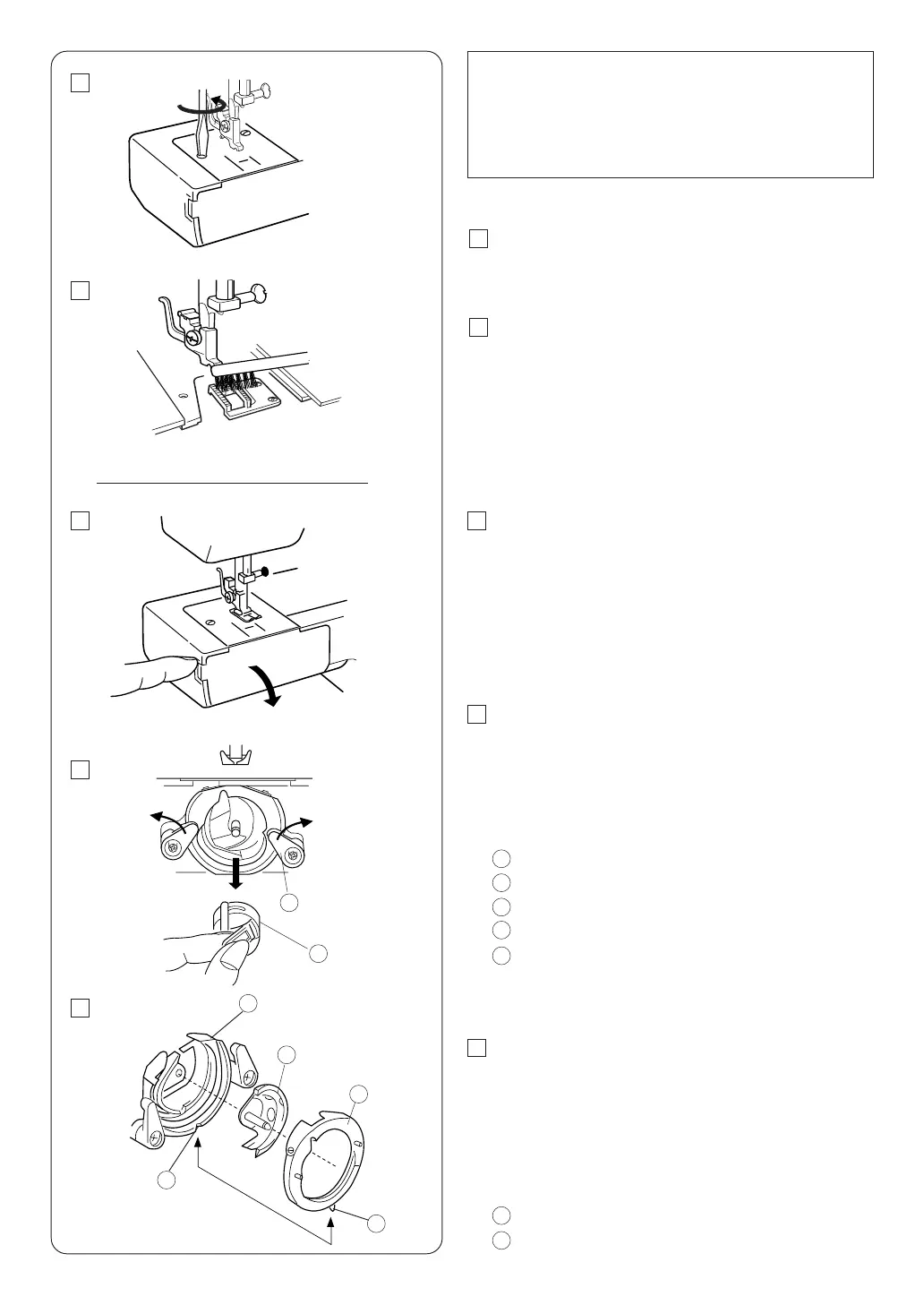

To dismantle hook race unit:
Raise the needle to its highest position and open the
hook cover.
Open the hinged latch of bobbin case and take it out of
the machine.
Open the hook race ring holders and remove the hook
race ring.
Remove the hook.
Clean the hook race with a brush and a soft dry cloth.
2
1
1
2
3
SECTION 6. CARE OF YOUR MACHINE
1
2
3
4
5
7
Cleaning the Feed Dog
Remove the needle and the presser foot.
Remove the needle plate set screws and remove the
needle plate.
With a brush, clean out dust and lint clogging the feed
dog teeth.
Reset the needle plate.
Note:
Turn off the power switch and unplug
the machine before cleaning.
Do not dismantle the machine other than as
explained in this section.
Cleaning the Hook Race Area
To assemble hook race unit:
Hold the hook by the center pin and fit it carefully
back into the hook race, forming a perfect circle
with the shuttle driver.
Attach the hook race ring making sure the bottom
pin fits into the notch.
Lock the hook race ring by turning the holders back
into position. Insert the bobbin case.
Pin
Notch
Bobbin case
Hook race ring holders
Hook race ring
Hook
Hook race
2
1
1
2
3
6
1
2
3
4
5
6
7
