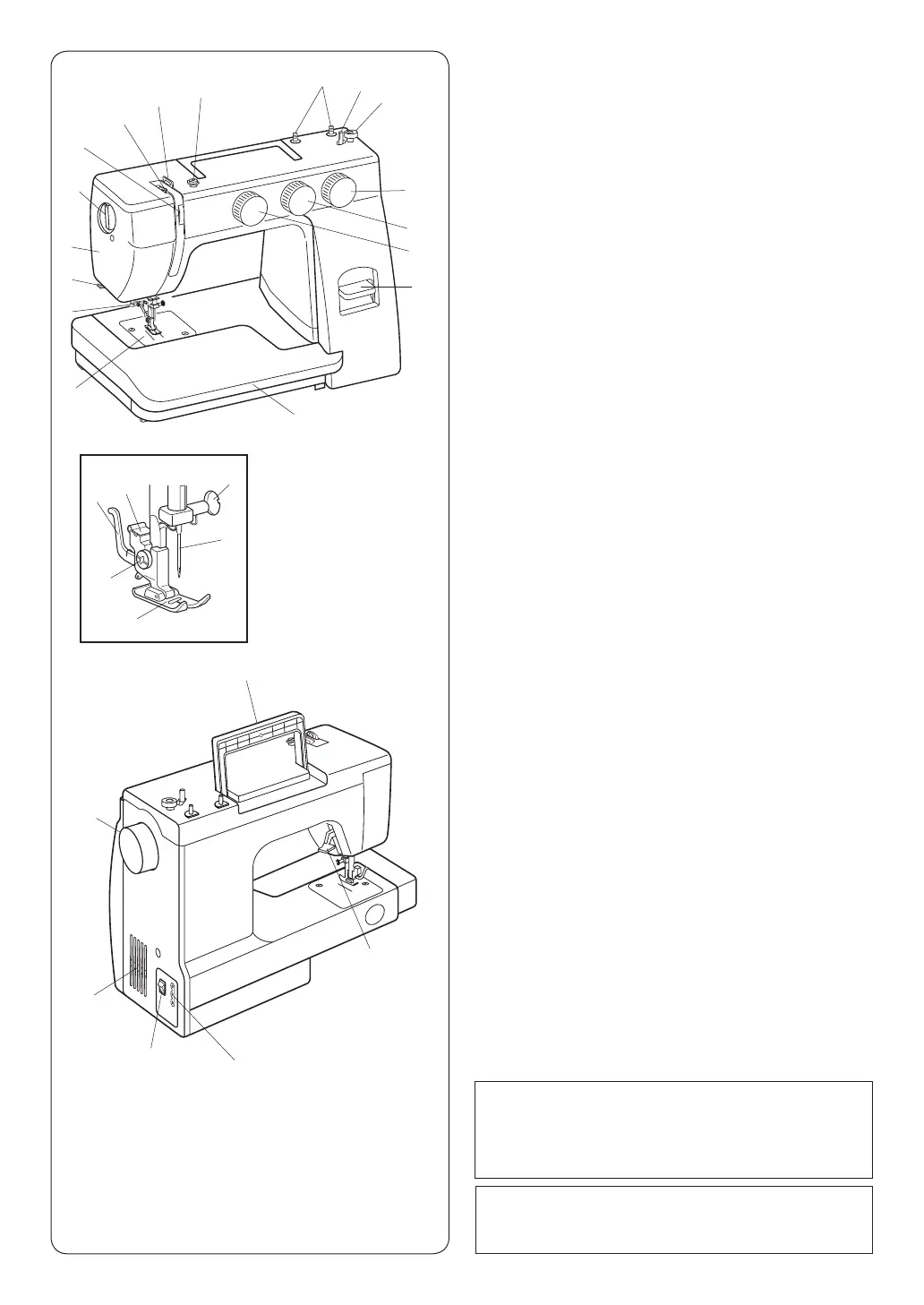

ESSENTIAL PARTS
Names of Parts
Reverse stitch button
Stitch selector dial
Stitch length dial
Stitch width dial
Bobbin winder stopper
Bobbin winder spindle
Spool pins
Bobbin winder thread guide
Top cover thread guide
Thread take-up lever
Thread tension dial
Pressure regulator
Face plate
Thread cutter
Needle threader
Needle plate
Extension table
Lever
Presser foot holder
Needle clamp screw
Needle
Presser foot (zigzag foot)
Setscrew
Carrying handle
Handwheel
Ventilation opening
Power switch
Machine socket
Presser foot lifter
!2
!3
e
!6
!7
NOTE:
Design and specications are subject to
change without prior notice.
NOTE:
To carry the sewing machine, hold the carrying
handle with your hand, and support the sewing
machine with the other hand.
