Specifications

Desktop Robot JR3000

10. I/O-1 (Optional)

I/O-1 is controlled by point jobs/PLC programs.

10.1 Connector

There are two types of I/O polarity: NPN specifications and PNP specifications. After confirming your

robot’s polarity specifications, always connect tools (etc.) which are compatible with these

specifications.

 I/O Polarity

If you are connecting external devices, please make sure they are compatible with your robot’s I/O

polarity. The robot’s I/O polarity can be confirmed on the I/O nameplate.

 I/O Power Supply Indication

• External

The power supply (DC24V) for a device connected to the I/O-1 is supplied externally.

Please prepare a separate I/O power supply.

• Internal

The power supply (DC24V) for a device connected to the I/O-1 is output from the I/O-1 connector.

NOTE

• I/O power supply specifications (External/Internal) are selected when you purchase the robot and

cannot be changed after doing so.

• If you are using the JR3200 equipped with I/O-MT, you cannot use I/O-1.

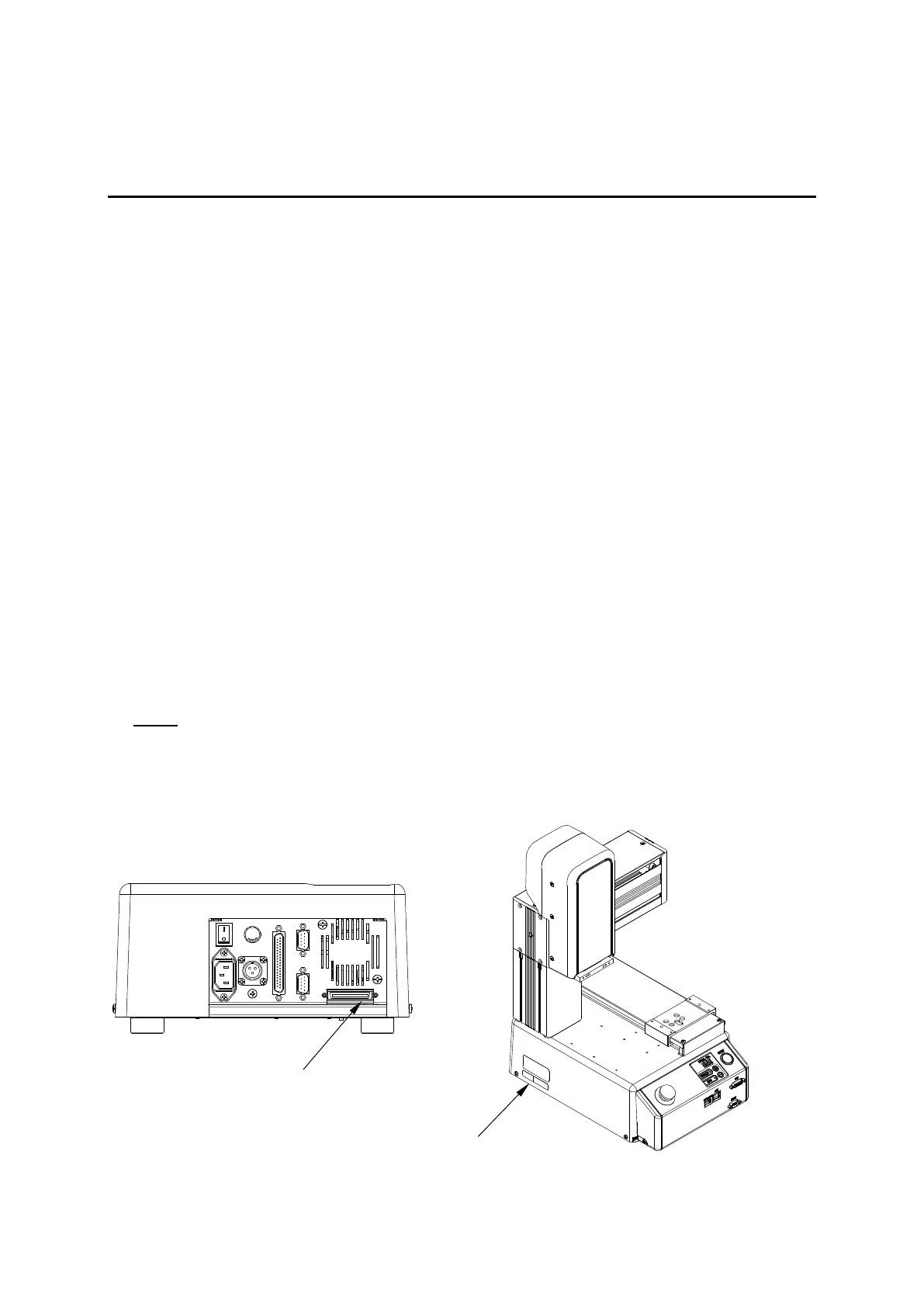

JR3200 Series

I/O-1 or I/O-MT (optional)

In this diagram, the I/O-MT

connector is shown.

I/O Nameplate

Example: JR3203N-AC
