ii
(2) Warning Label
Warning labels are attached at several locations on this instrument. Do not remove, deface or
damage the warning labels. If a warning label peels off the instrument or becomes illegible,
contact your local JASCO distributor and state the part number of the label you want to
replace.

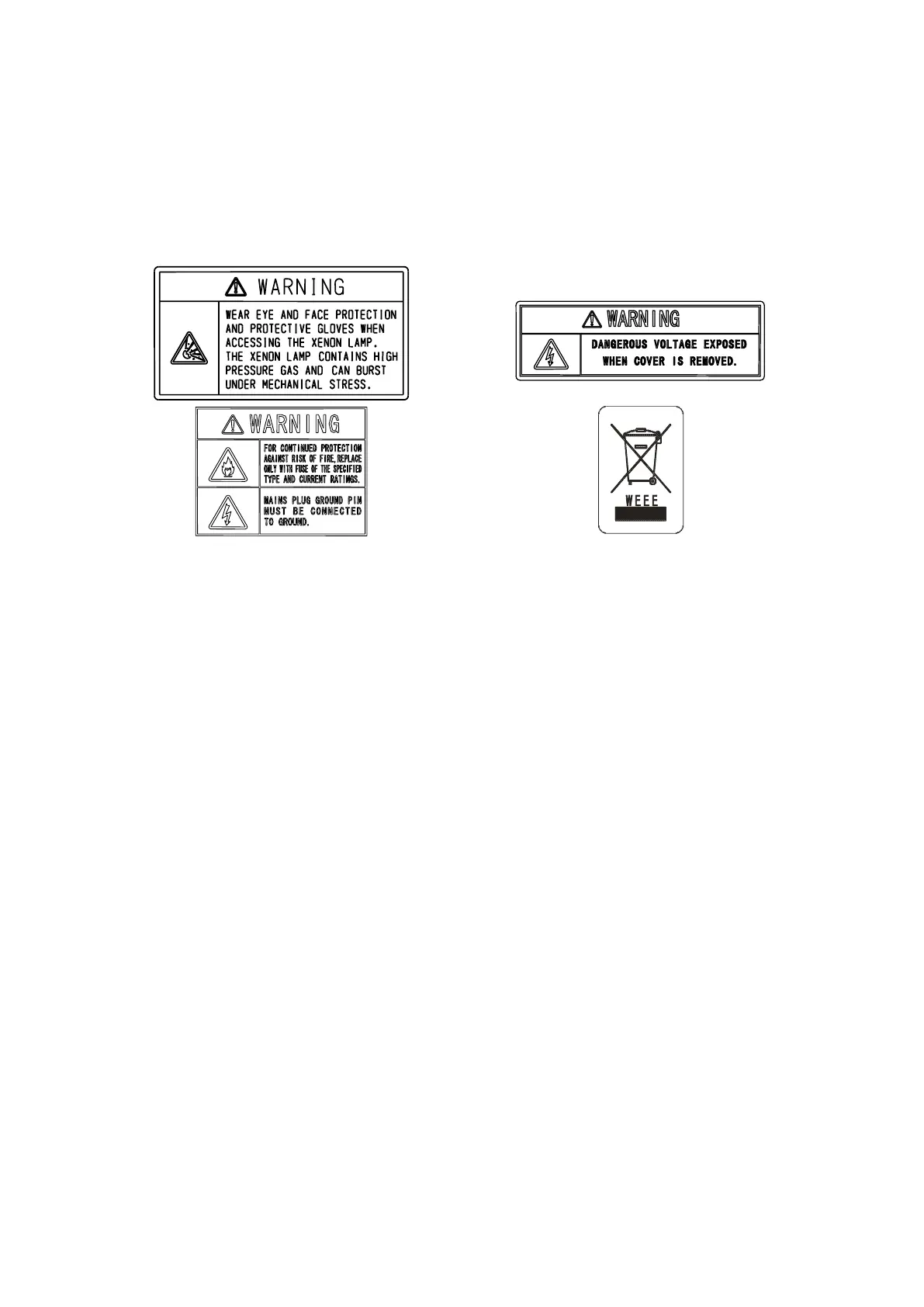

Figure 1 Warning indications
1) Warning for Xenon Lamp (No.1 of Figure 2, Figure 3 and Figure4)
- The xenon lamp is made of quartz glass and is filled with high-pressure gas (5 to 10 atm.
pressure, about four times when the lamp is lit). Twisting, bending or impact can burst the
lamp, causing danger with glass fragments. Never open the lid of the light source unit if
the lamp is lit or hot.
- When handling the xenon lamp, wear protective clothing such as a thick, long-sleeved shirt,
a mask, thick gloves, etc.
- Before replacing the xenon lamp, turn the lamp off and allow it to cool for about 30 minutes.
- When replacing the xenon lamp, be careful not to give an impact to the lamp. Never twist
the lamp by holding it at both ends.
- Do not mistake the mounting direction (polarity) of the lamp. The cathode will be damaged
if the lamp is mounted incorrectly, rendering the lamp inoperable.
- Do not touch the glass portion of the xenon lamp with bare skin.
- If the glass portion of the xenon lamp is contaminated, wipe it with clean gauze moistened
with alcohol.
- After removal and before disposal, place the xenon lamp in its case, and store the case in
a safe place. If the case is not available, carefully wrap the lamp in foamed plastic or other
protective wrapping, and store it in a same place.
2) Warning for Dangerous voltage (No.2 of Figure 2, Figure 3 and Figure4)
Dangerous voltage exposed when cover is removed.
