14

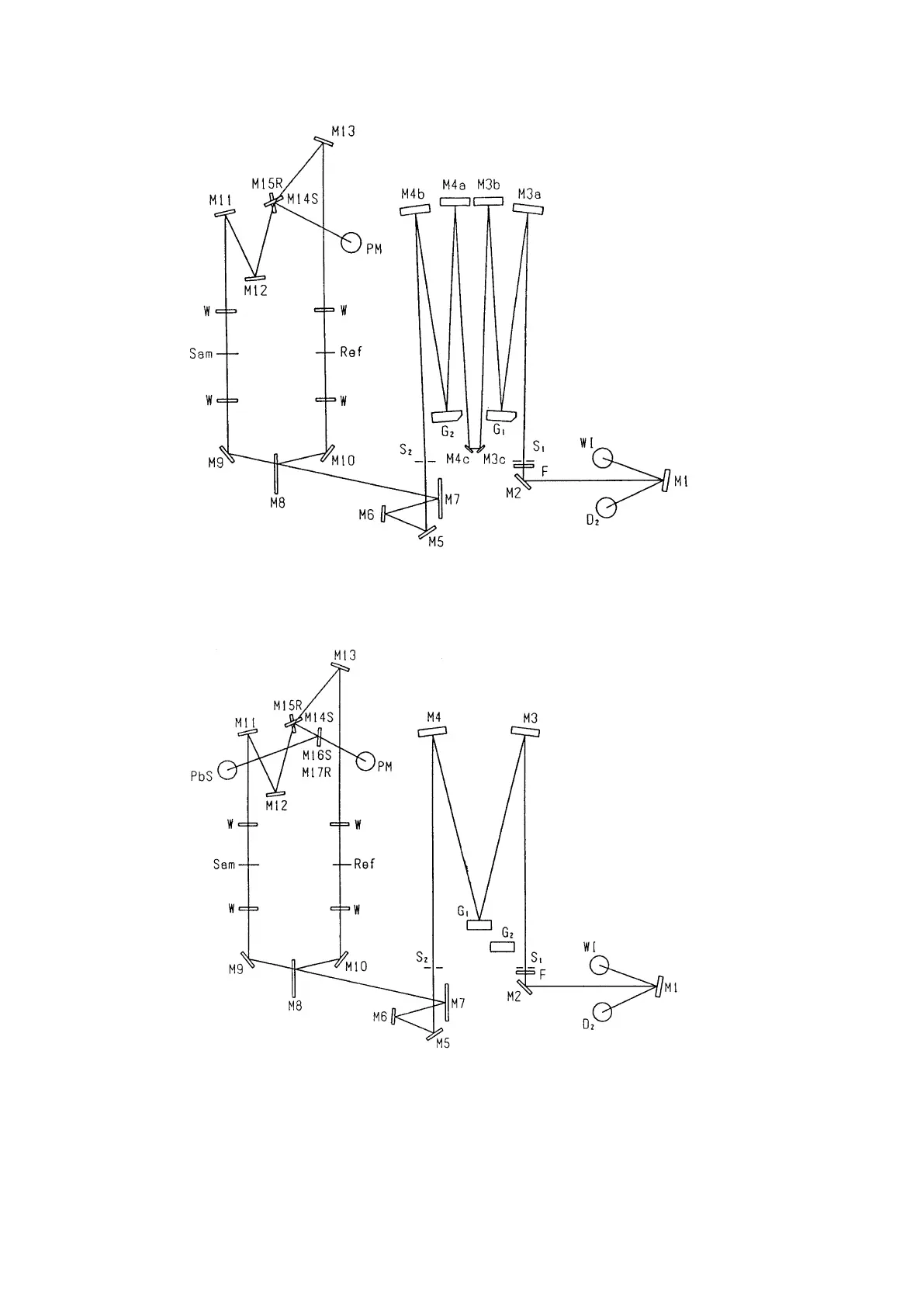

Figure 3.4 V-660 Optical system
Figure 3.5 V-670 Optical system
WI, D
2
: Light source
M : Mirror
S : Slit
F : Filter
G : Grating
M8 : Sector mirror
PM : Detector
Sam : Sample beam
Ref : Reference beam
W : Window
WI, D
2
: Light source
M : Mirror
S : Slit
F : Filter
G : Grating
M8 : Sector mirror
PM : UV/VIS Detector
PbS : NIR detector
Sam : Sample beam
Ref : Reference beam
W : Window
26
28
