11
CONTROLS

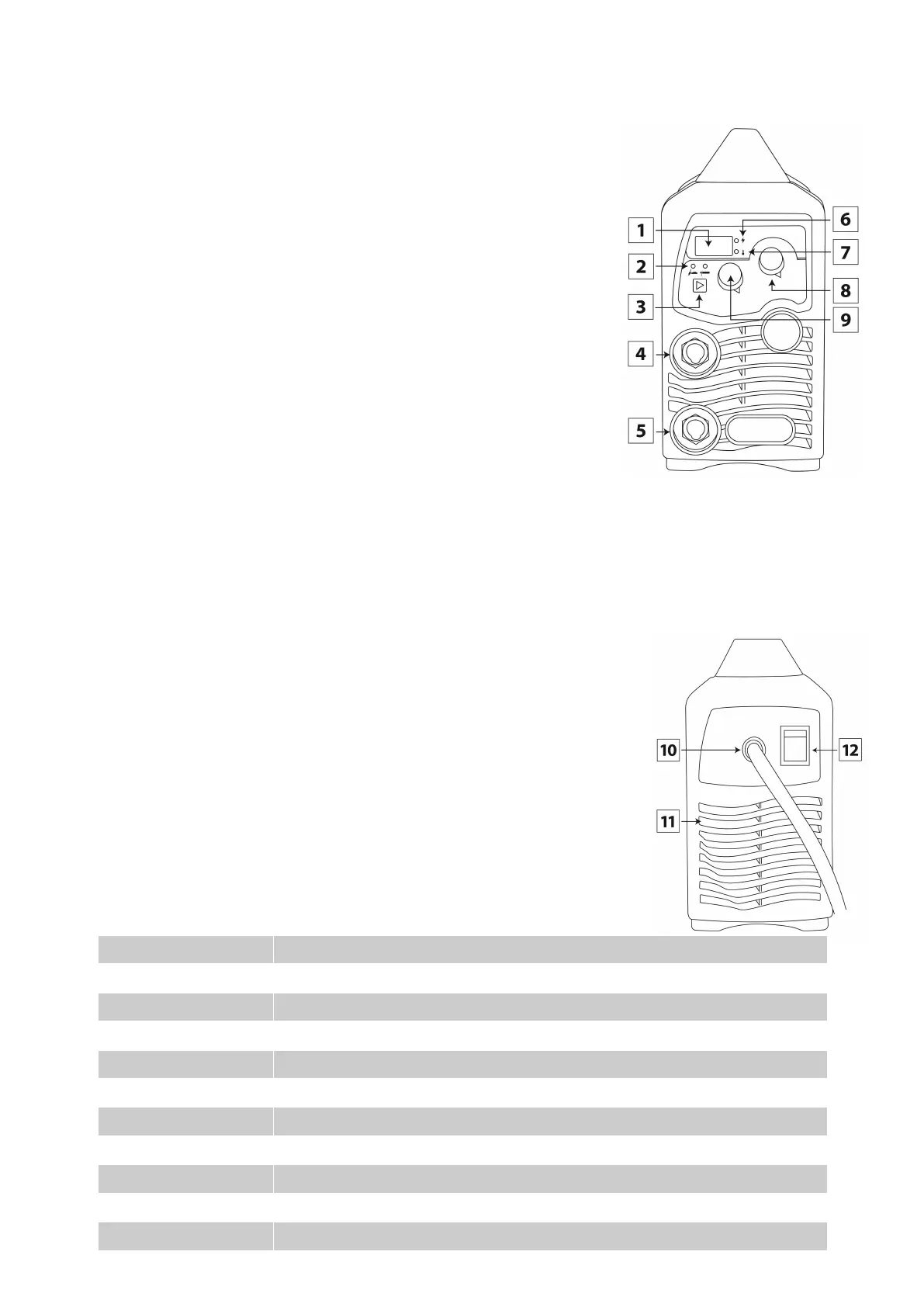

Front view Jasic Arc 160 PFC, 180 PFC and 200 PFC
1. Digital ammeter: Displays the pre-set welding current which is
adjusted via the welding current dial (8)
2. MMA/TIG indicators: Visual indictors for MMA and TIG
3. MMA/TIG switch: The selecon toggle switch for MMA and TIG
4. "+" Output terminal*: The connecon for the electrode holder
5. "-" Output terminal*: The connecon for the work clamp
6. Power LED: The ON Power LED which indicates that the power switch
of the machine is in the ON posion
7. Overheang LED: The overheang LED when illuminated indicates
that the temperature inside the machine is too high and the machine
is under overheang protecon status
8. Welding current knob: The control dial used to adjust the output
current which will be displayed on the digital display
9. Arc force control: During welding the arc voltage is normally in the
region of 20V. Oen the situaon may demand a shorter arc which results in a lower voltage and the
electrode is prone to “scking to the work piece”. The arc force control will overcome this problem by
increasing the current when the arc voltage falls to ensure the metal transfer of the electrode and
prevent the electrode scking.
* Panel socket size is 35/50mm
Rear view Jasic 160 PFC, 180 PFC and 200 PFC
10. Input cable gland
11. Cooling fan
12. Power switch
OPTIONS AND ACCESSORIES
Part Number Descripon
WP17V-12-2DL Valve TIG Torch, 12.5, 2 Piece c/w CP3550 Plug and extended 2mt Gas Hose
WCS25-3WEL Welding Cable Set (MMA) 3m
WC-2-03LD Electrode Holder and lead 3m
EC-2-03LD Work Return Lead and Clamp 3m
CP3550 Cable Plug 35-50mm
JSS-01 Jasic Carry Strap
JSB-01 Jasic Site Bag
JH-HDX Jasic HD True Colour Auto Darkening Welding Helmet
WP17V-12-2DL 17V TIG Torch, 12.5, 2 Pc Cable c/w CP3550 Plug and 2mt extended Gas Hose
WP26V-12-2DL 26V TIG Torch, 12.5, 2 Pc Cable c/w CP3550 plug and 2mt extended Gas Hose
