A.2. Connector Specifications
Power Connector

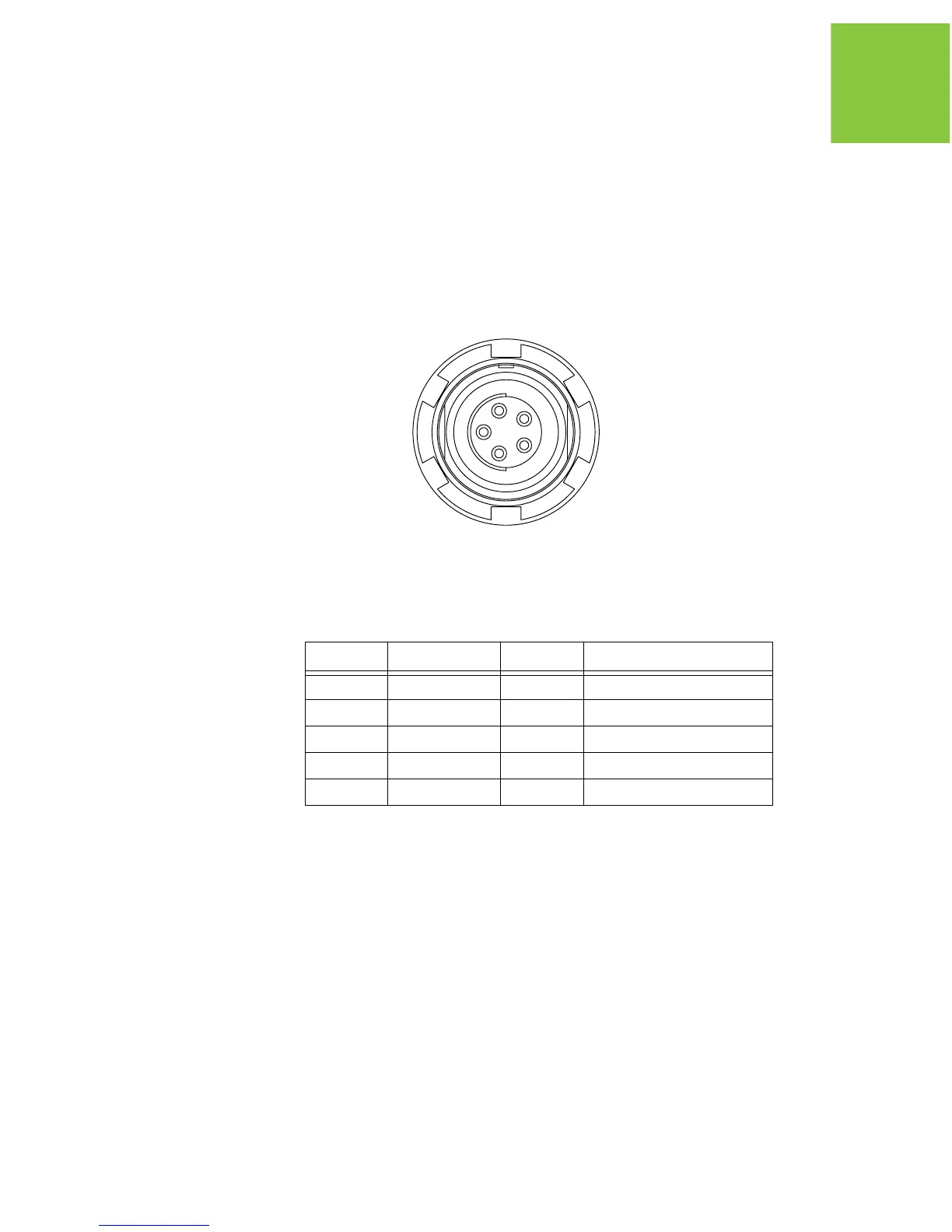

Rimmed in red, the power connector (Figure A-1) is a sealed receptacle, 5 pin, ODU p/n
G80F1C-T05QF00-0000.
Figure A-1. Power Connector
Table A-6 gives power connector specifications.
Table A-6. Power Connector Specifications
1
5
4
2
3
Number Signal Name Dir Details
1 Power_INP P 10 to 30 volts DC input
2 Power_INP P 10 to 30 volts DC input
3 Power_GND P Ground, power return
4 Power_GND P Ground, power return
5Not used
