3.1.4. Configuring the External UHF Modem
Note: To comply with RF exposure requirements, maintain at least 20 cm between the user and the
UHF modem.
1. On the Radio Link tab, set the following parameters (Table 3-1 on page 47) and click
Apply (Figure 3-12):

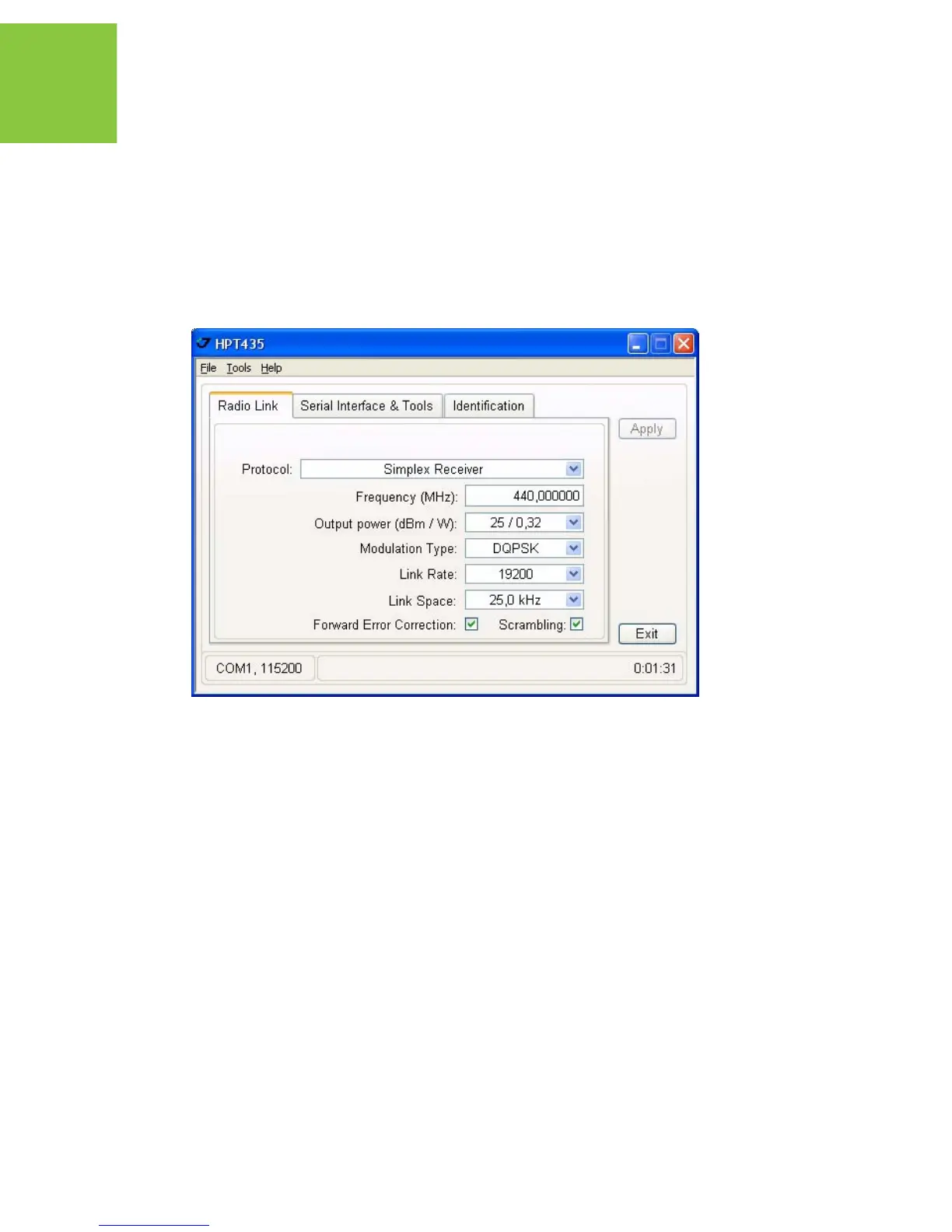

Figure 3-12. HPT435 Radio Link tab
2. When finished, click FileDisconnect.
3.2. Configuring the Receiver
The TRIUMPH-1 receiver can be configured in several ways for collecting data for RTK or post-
processing.
• A static Base station collects measurement information and saves this data to its internal
memory.
• An RTK Base station collects measurement information, determines differential
corrections, and transmits them to the RTK Rover(s).
• A static Rover collects observation data from the same satellites during the same time
interval as the static Base station.
