4-5.Resistance Measurement
WARNING: To avoid electric shock, disconnect power to the unit under test and discharge all
capacitors before taking any resistance.

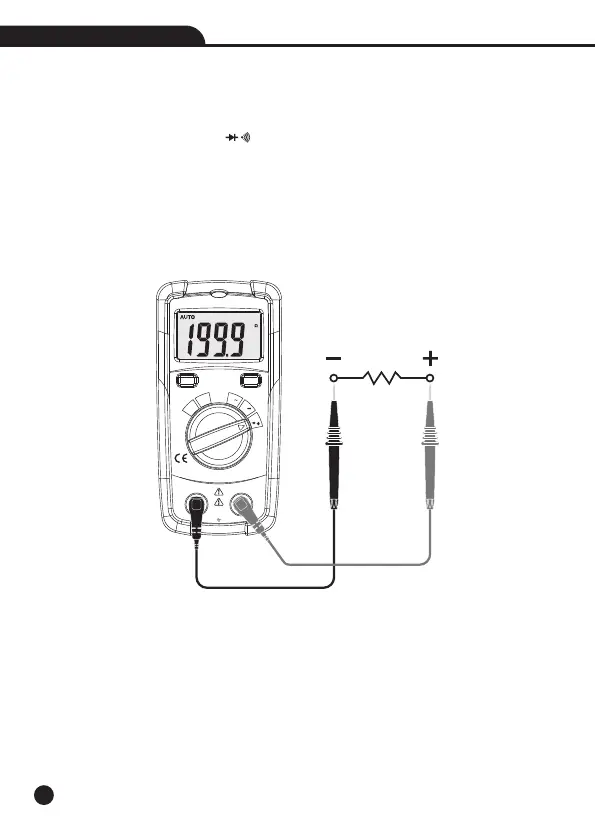

1.Set the function switch to the Ω Position.
2.Insert the black test lead banana into the COM Input Jack; Insert the red test lead banana into
the Positive Input Jack.
3.Touch the test probe tips across the circuit or part under test. It is best to disconnect one side
of the part under test so the rest of the circuit will not interfere with the resistance reading.
4.Read the resistance in the display.
