13
Autoranging Digital Multimeter

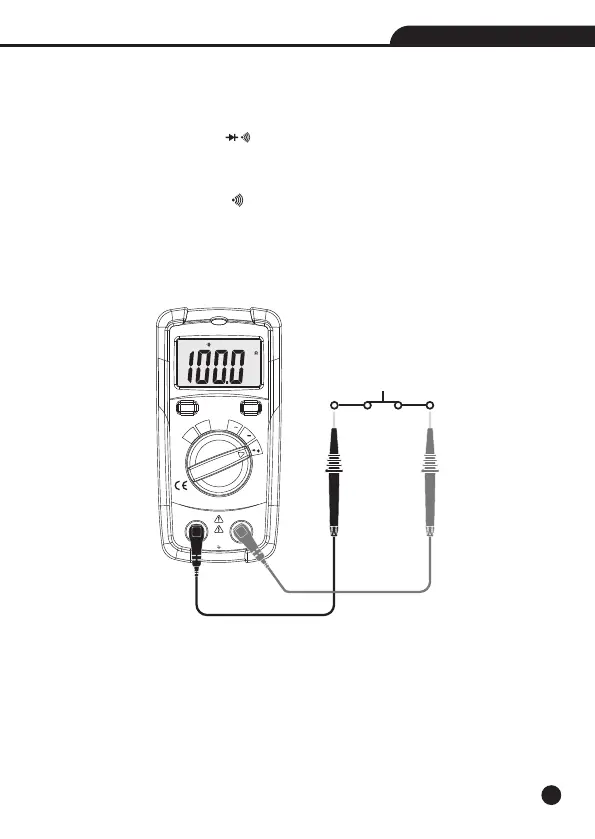

4-6.Continuity Check
WARNING: To avoid electric shock, never measure continuity on circuits or wires that have voltage
on them.
1.Set the function switch to the Position.Ω
2.Insert the black test lead banana into the COM Input Jack; Insert the red test lead banana into
the Positive Input Jack.
3.Press the MODE Button until the “ ” symbol appears in the display.
4.Touch the test probe tips to the circuit or wire you wish to check.
5.If the resistance is less than approximately 100 , the audible signal will sound, the displayΩ
will also show the actual resistance.
Autoranging
Digital Multimeter
OFF
mA
μA
V
Auto
Power
Off
Ω
V
MODEMAX
COM
V Ω mA μA
200mA/600V
CAT III 300V
CAT II 600V
