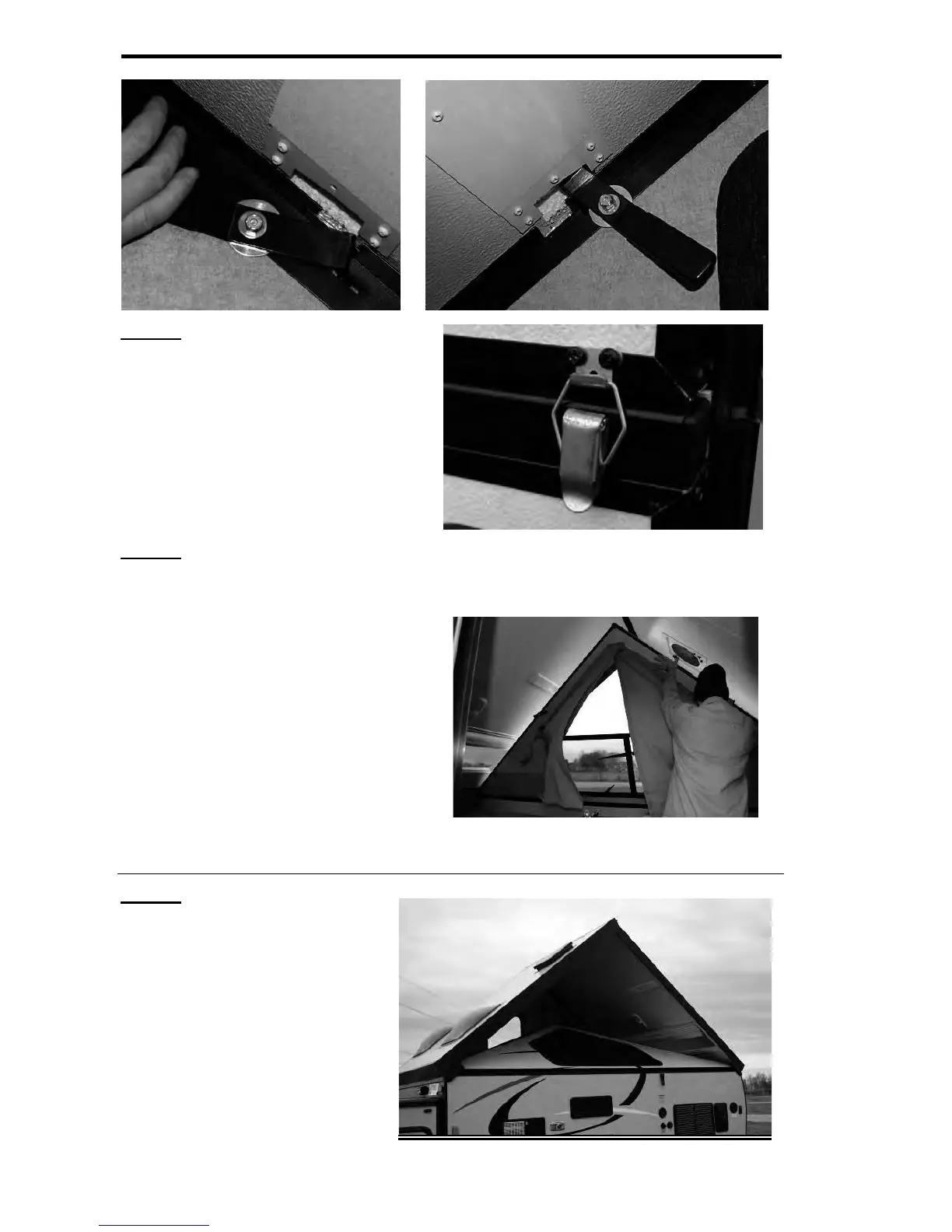

SECTION 14 – SETUP & MAINTENANCE JAYCO HARD WALL MODELS
14-4 SCT HS
Step 6
Latch the top and bottom door
sections together using the hasp latch
located directly above the door
handle.
Step 7
Standing on the inside of the unit, lift the other side wall into position.
Secure the wall into place with the (2) wall latches.
Setup is now complete.
CAMPING TRAILER TEAR DOWN - HARD WALL MODELS ONLY
Step 1
Unlatch the first sidewall (non-
Door side). Slowly lower the
Sidewall towards the center of
The unit until it reaches the
Stowed or travel position.
Locked
position
