6-2
120-VOLT AC SYSTEM
The following electrical components (if so equipped) will only operate when your
RV is connected to shore power: 120 to 12-volt power converter, air conditioner,
120-volt refrigerator, microwave oven, television(s), fireplace and appliances
plugged into convenience receptacles.
120-VOLT CIRCUIT BREAKERS

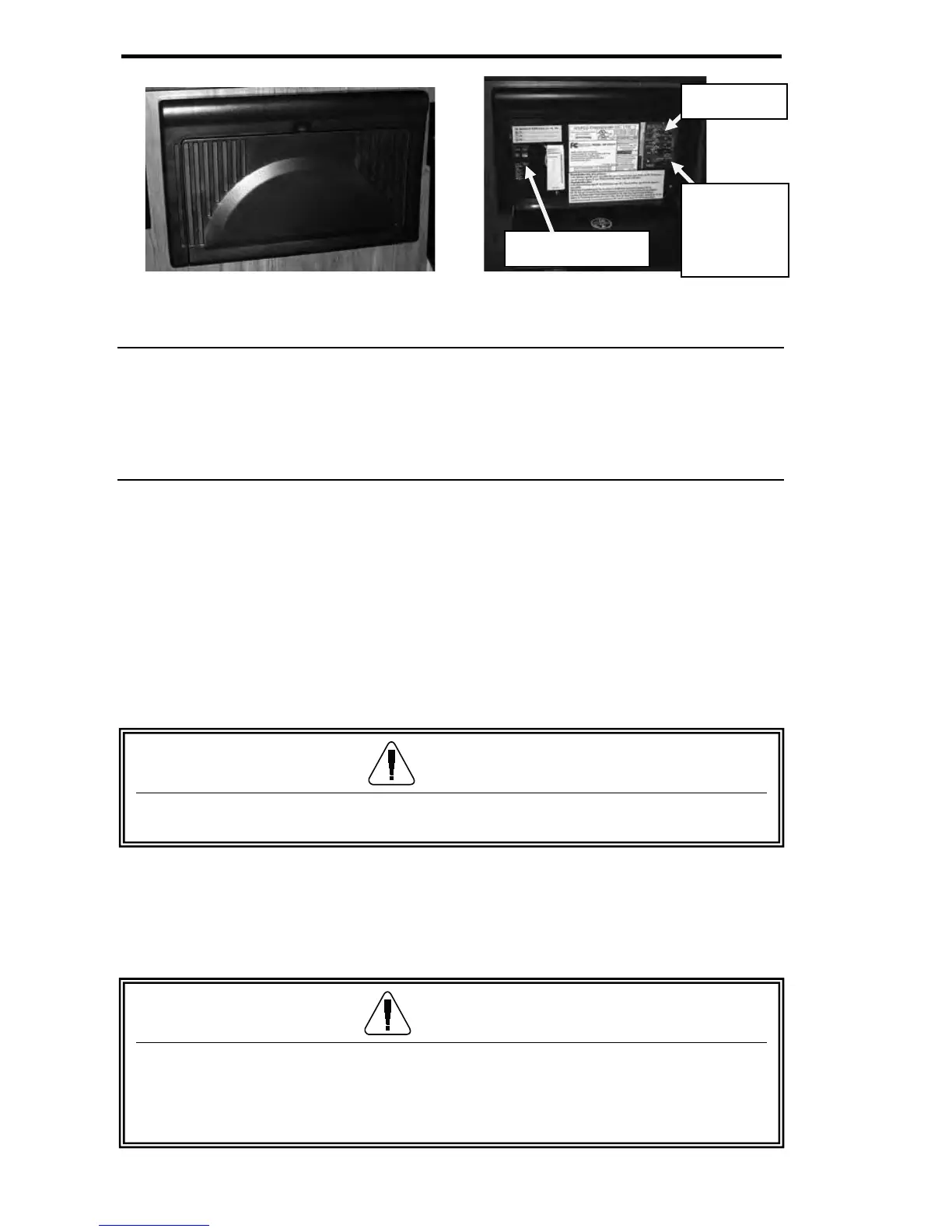

The 120-volt AC circuit breakers located inside the Load Center protect all
120-volt wiring and components in the RV from circuit overloads and short circuits.
Should a circuit overload or short circuit occur the circuit breaker protecting the
affected circuit will “trip” preventing the flow of electricity through that circuit.
If a circuit breaker trips, shut “off” the appliance on that circuit (i.e., power
converter etc.) and allow the circuit breaker to cool down for a brief period of time.
After the cooling down period, reset the circuit breaker by moving its lever “off” and
then back to the “on” position. If the circuit breaker re-trips or frequently trips,
contact your dealer to have the electrical problem diagnosed and repaired.
A circuit breaker identification label is permanently attached to the inside surface
of the 120-volt load center.
Maintenance and Replacement
At the beginning of camping season, inspect the circuit breakers and replace as
needed. Test by turning each circuit breaker “off” and back “on”. Circuit breakers
are wearable parts and must be replaced as needed, as part of your RV
maintenance. If you have any questions, consult your dealer.
WARNING
Replacement circuit breakers must be of the same voltage, amperage rating
and type. Never use a higher rated replacement circuit breaker; doing so may
cause a fire by overheating the RV wiring. Please contact your dealer for
repair assistance when replacing circuit breakers.
