93
plumbing SyStem
Uni-Dock Utility Center (If So Equipped)
Uni-Doc Utility Center

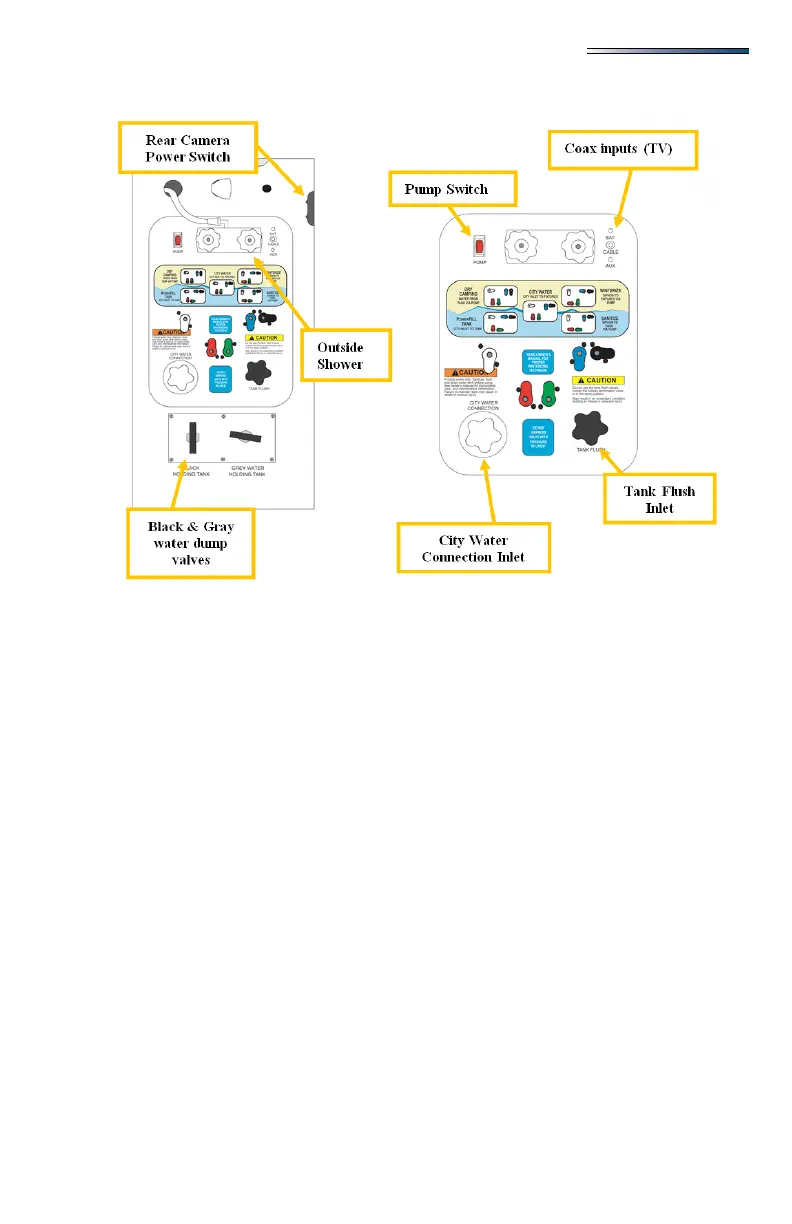

The Uni-Doc Utility Center is located in an exterior compartment in your recreation vehicle
and allows you to perform the following functions:
1. Power ll the fresh water tank for remote or dry camping.
2. Use the pump to supply water to xtures from the fresh water tank.
3. Use the pump to siphon ll or sanitize the fresh water tank from a bucket.
4. Connect to city water at the camp site to supply water to RV xtures.
5. Winterize the plumbing lines and xtures.
6. Bypass the hot water heater when winterizing to avoid damage to the water heater.
7. Rinse the black tank to help control odors and prevent sewage buildup.
8. Rinse off items outside the unit with hot/cold faucet.
9. Connect up to 3 coax lines with satellite, cable and auxiliary.
The City Water Connection inlet is located in the Uni-Dock Utility Center. Use a non-
toxic drinking water hose dedicated only to supplying the RV with fresh water. To reduce
the chance of contamination, prevent the non-toxic drinking water hose from coming into
contact with the ground. Install the City Water Connection inlet cap when the fresh water
connection is not being used.
The fresh water connection should be disconnected (i.e., the non-toxic drinking hose
disconnected) when the RV is unattended for any amount of time. If something would
happen to the water system, this may help limit water damage to a smaller area.
Do not remove the Potable Water Label.
