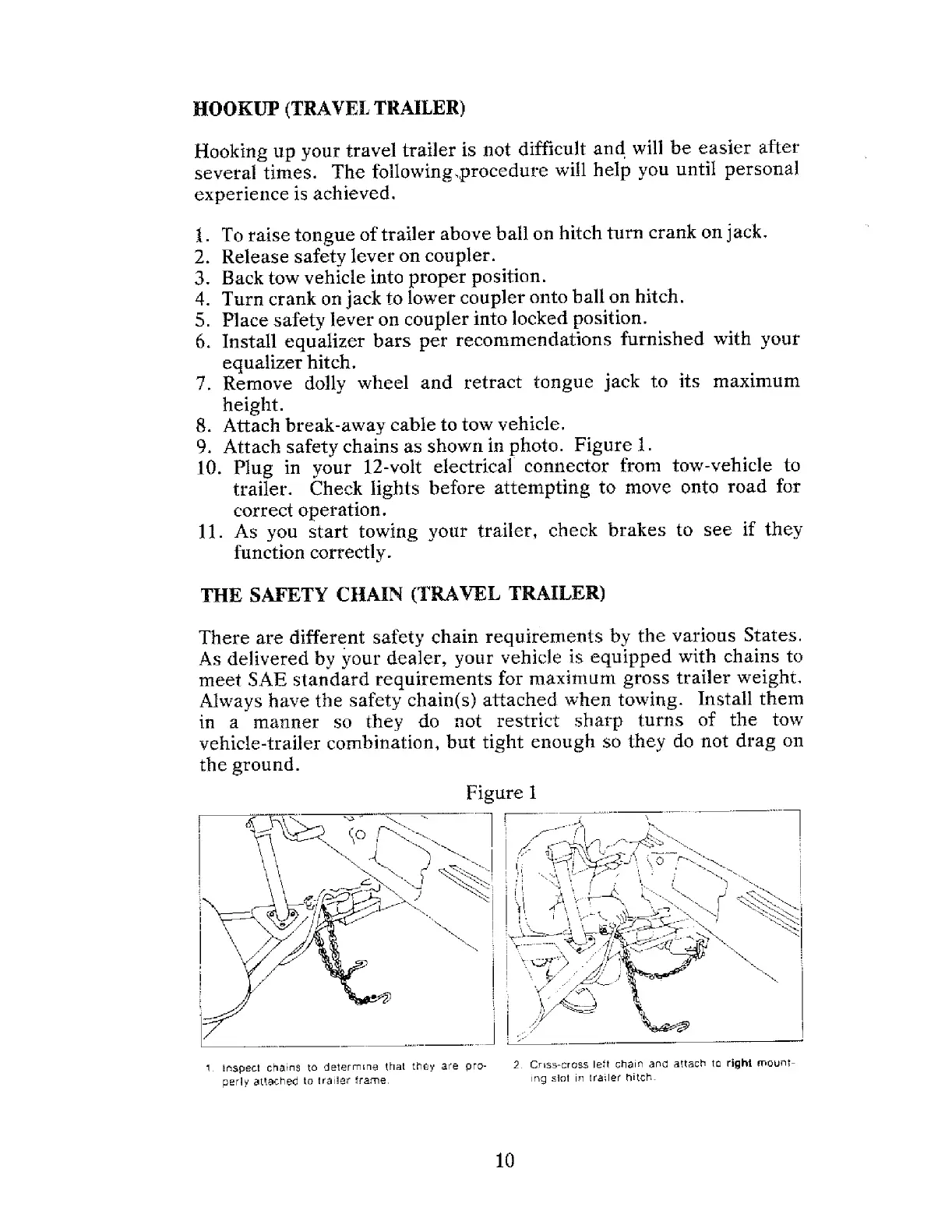

HOOKUP (TRAVEL TRAKER)
Hooking up your travel trailer is not dificult and will be easier after
several times. The folIowing,,procedure will help you until personal
experience is achieved.
1. To raise tongue of trailer above ball on hitch turn crank on jack.
2. Release safety Iever on coupler.
3. Back tow vehicle into proper position.
4. Turn crank on jack to lower coupler onto ball on hitch.
5. Place safety Iever on coupler into locked position.
6. Install equalizer bars per recommendations furnished with your
equalizer hitch.
7. Remove dolly wheel and retract tongue jack to its maximum
height.
8. Attach break-away cable to tow vehicle.
9. Attach safety chains as shown in photo. Figure 1.
10. Plug in your 12-volt electrical connector from tow-vehicle to
trailer.
Check Iights before attempting to move onto road for
correct operation.
11. As you start towing your trailer, check brakes to see if they
function correctly.
THE SAFETY CHAIN tTRAVEL TRAILER
There are different safety chain requirements by the various States.
As delivered by your dealer, your vehicle is equipped with chains to
meet SAE standard requirements for maximum gross trailer weight.
Always have the safety chain(s) attached when towing. Install them
in
a manner so they do not restrict sharp turns of the tow
vehicle-trailer combination, but tight enough so they do not drag on
the ground.
-
Figure 1
1
Inspect chains to determine that they are pro-
perly attached to traler frame
2 Criss-cross let1 chall and attach lo right mount
ng slot In 1ra:ler hltch
