Jayco Designer Series User Manual

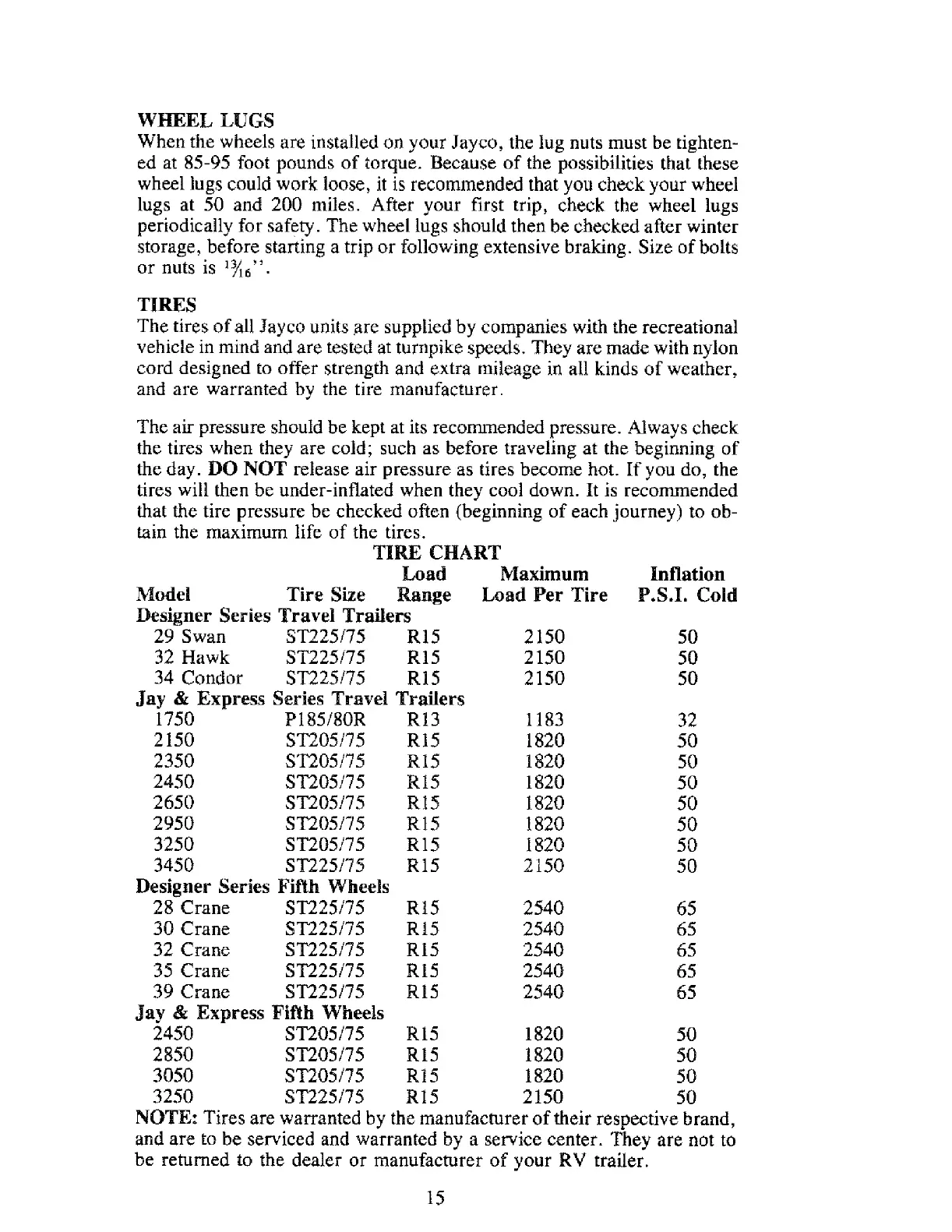

WHEEL LUGS
When the wheels are installed on your Jayco, the lug nuts must be tighten-
ed at
85-95 foot pounds of torque. Because of the possibilities that these
wheel lugs could work loose, it is recommended that you
check your wheel
lugs at
50 and 200 miles. After your first trip, check the wheel lugs
periodically for safety. The wheel lugs should then be checked after winter
storage, before starting a trip or following extensive braking. Size of bolts
or nuts
is 33''.
TIRES
The tires of all Jayco units are supplied by companies with the recreational
vehicle in mind and
are tested at turnpike speeds. They are made with nylon
cord designed to offer strength and extra mileage in all kinds of weather,
and are warranted by the tire manufacturer.
The air pressure should be kept at its recommended pressure. Always check
the tires when they are cold; such as before traveling
at the beginning of
the day.
DO NOT release air pressure as tires become hot. If you do, the
tires will then be under-inflated when they cool down. It is recommended
that
~e tire pressure be checked often (beginning of each journey) to ob-
tain the maximum life of the tires.
TIRE CHART
Load Maximum Inflation
Model Tire Size bnge Load Per Tire P.S.I. Cold
Designer Series Travel Traiters
29 Swan
ST225175 R15 2150 50
32 Hawk ST225175 R15 2 150 50
34 Condor ST225175
R15 2150 50
Jay & Express Series Travel Trailers
1750 P 185180R
R13 1183 32
2 150
ST205175
R15 1820 50
2350
ST205175
R15 1820 50
2450 ST205175 Rl5 1820 50
2650 ST205175
R15 1820 50
2950
ST205145
R15 1820 5 0
3250
ST205175
R15 I820 5 0
3450
ST225175 R15 2150 5 0
Designer Series Fifth Wheels
28 Crane ST225175
R15 2940 65
30 Crane
ST225175 R15 2540 65
32
Crane
ST225175 R15 2540 65
35 Crane
ST225/75 W15 2540 65
39 Crane
ST225175 R15 2540 55
Jay L Express Fifth Wheels
2450
ST205175 R15 1820 50
2850
ST205175 RI5
1820 50
3050 ST205175
R15 1820 50
3250 ST225175 R15
2 150 50
NOTE: Tires are warranted by the manufacturer of their respective brand,
and are
to be serviced and warranted by a service center. They are not to
be returned to the dealer or manufacturer of your RV trailer.
