3 Repeal step 2 WI:~ t~ght charn Stack far each
lengtn should be ihe same bu~ not more than
necessary to permt the veh~cle to turn at their
mmtrnum radus
4. Properly mountzc safety chain. Note that the
)ack s fully rase6 and dolly wheel removed.

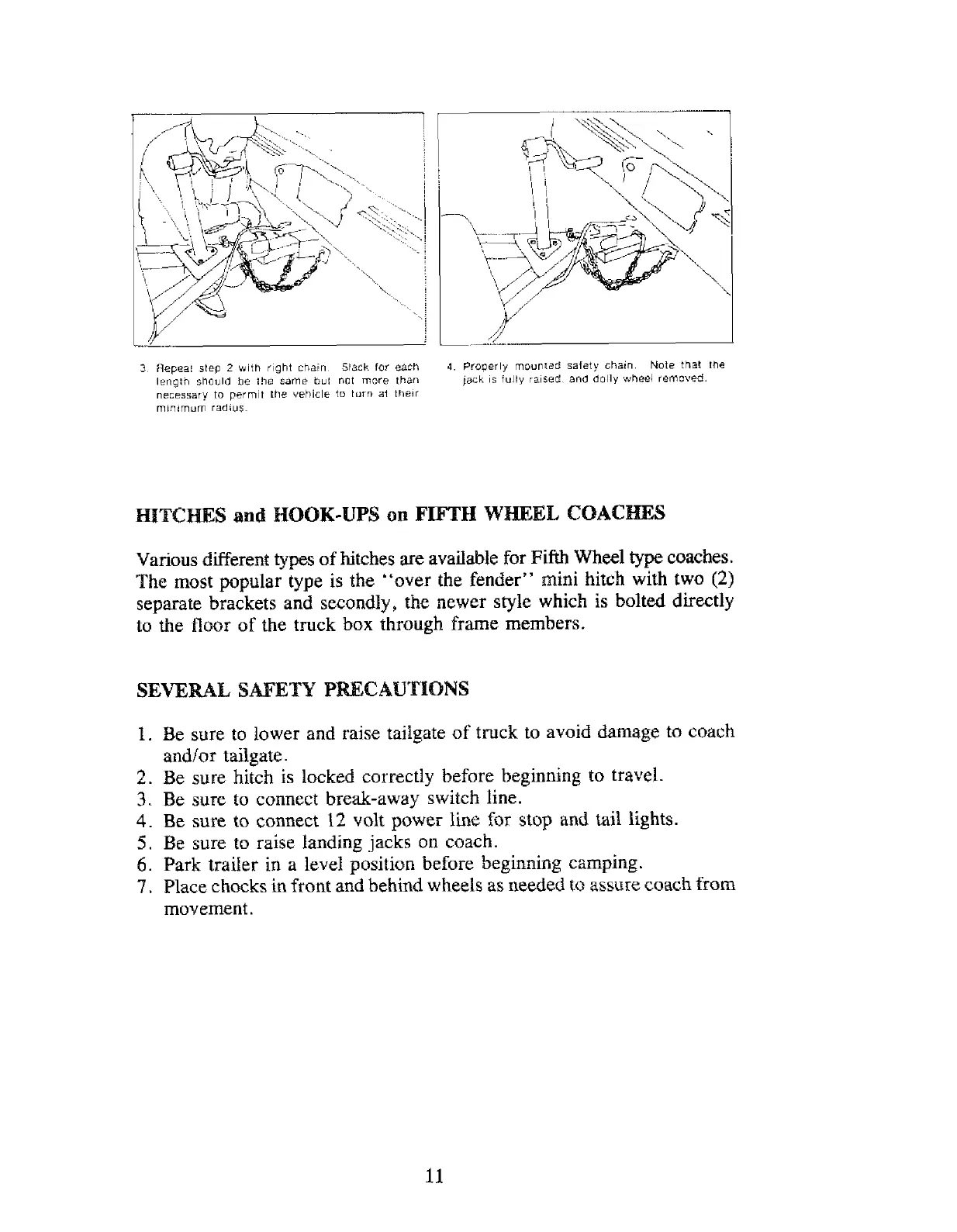

Various different types of hitches are avalable for Fifth Wheel type coaches.
The most popular type is the "over the fender" mini hitch with two (2)
separate brackets and secondly, the newer style which is bolted directly
to the floor of the truck box through frame members.
SEVERAL, SAFETY PRECAUTIONS
1. Be sure to lower and raise tailgate of truck to avoid damage to coach
and/or tailgate.
2. Be sure hitch is locked correctly before beginning to travel.
3. Be sure to connect break-away switch Iine.
4. Be sure to connect 12 volt power Iine for stop and tail lights.
5. Be sure to raise landing jacks on coach.
6. Park trailer in a level position before beginning camping.
7, Place chocks in front and behind wheels as needed to assure coach from
movement.

Jayco Designer Series Specifications

General

Type	Caravan
Gas Capacity	Varies by model (e.g., 2 x 9kg bottles)
Heating and Cooling	Air conditioning, heating system
Ball Weight	Varies by model (e.g., 180kg to 250kg)
Water Capacity	Varies by model (e.g., 100L to 200L)
