Jayco Designer Series User Manual

Tires

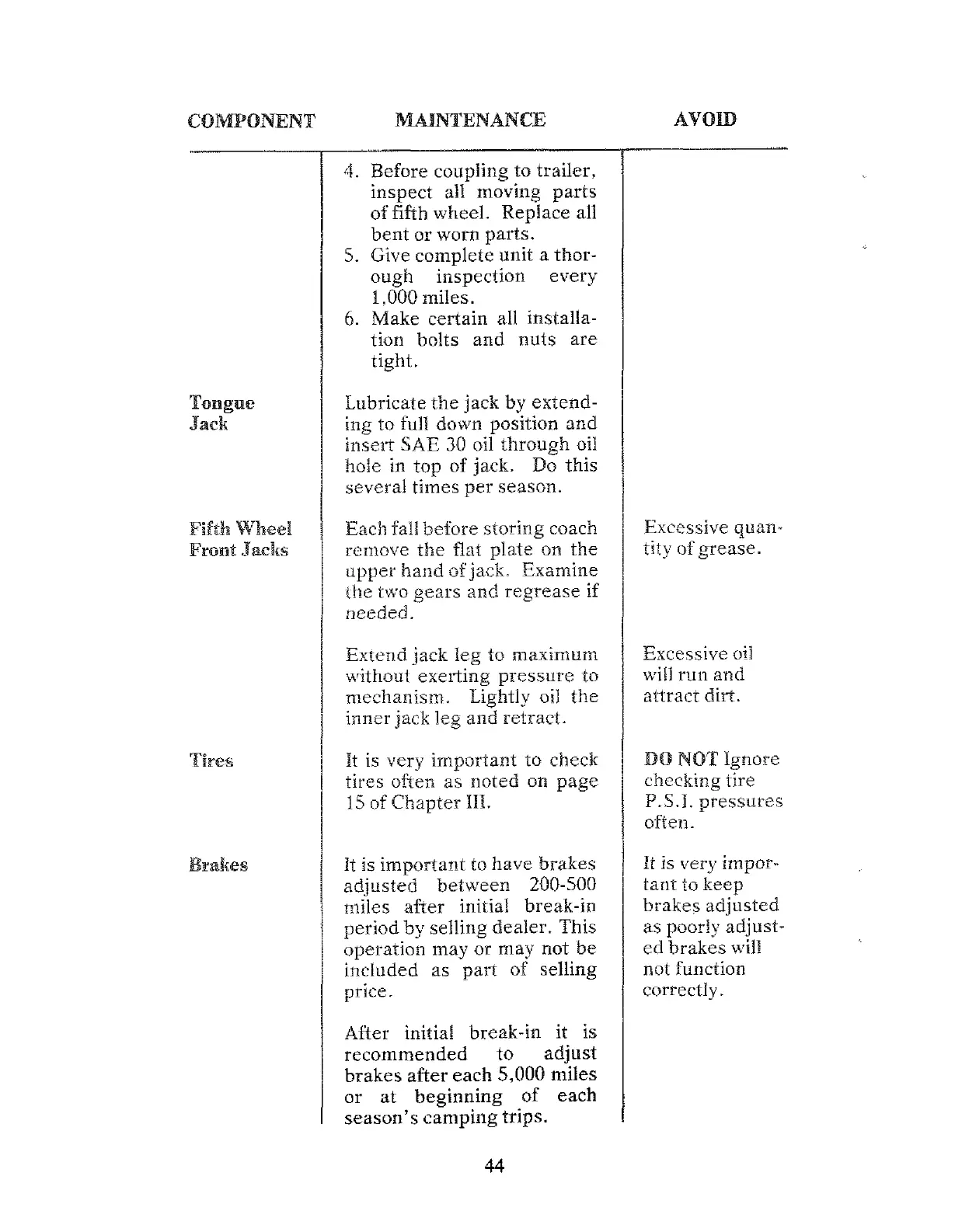

4. Before coupling to trailer,
inspect
all moving parts
of fifth wheel. Replace all
bent or
worn parts.
5. Give complete unit a thor-
ough inspection every
2,000 miles.
6. Make certain all installa-
tion bolts and nuts are
tight.
Lubricate the
jack by extend-
ing to full down position and
insert SAE 30 oil through oil
hoie in top of jack. Do this
several times per season.
Each fall
before storing coach
remove the
tlat plate on the
upper
hand of jack. Examine.
the two gears and regrease if
needed.
Exzend jack leg to maximum
withoarl exerting pressure to
mechanism. Lightly oil the
inner jack leg and retract.
It is very important to check
tires often as noted on page
IS of Chapter 111.
It is important lo have brakes
adjusted between 280-500
miles after initial break-in
period by selling dealer. This
operation may or may not be
included as part of' selling
price.
After initial break-in it is
recommended to adjust
brakes after each 5,000 miles
or at beginning of each
season's camping trips.
Excessive quan-
tity of grease.
Excessive
oil
will run and
attract dirt.
checking tire
P.S.I. pressures
often.
It is very impos-
tant to keep
brakes adjusted
as poorly adjust-
ed brakes will
n~t Function
correctlly .

Jayco Designer Series Specifications

General

Type	Caravan
Gas Capacity	Varies by model (e.g., 2 x 9kg bottles)
Heating and Cooling	Air conditioning, heating system
Ball Weight	Varies by model (e.g., 180kg to 250kg)
Water Capacity	Varies by model (e.g., 100L to 200L)
