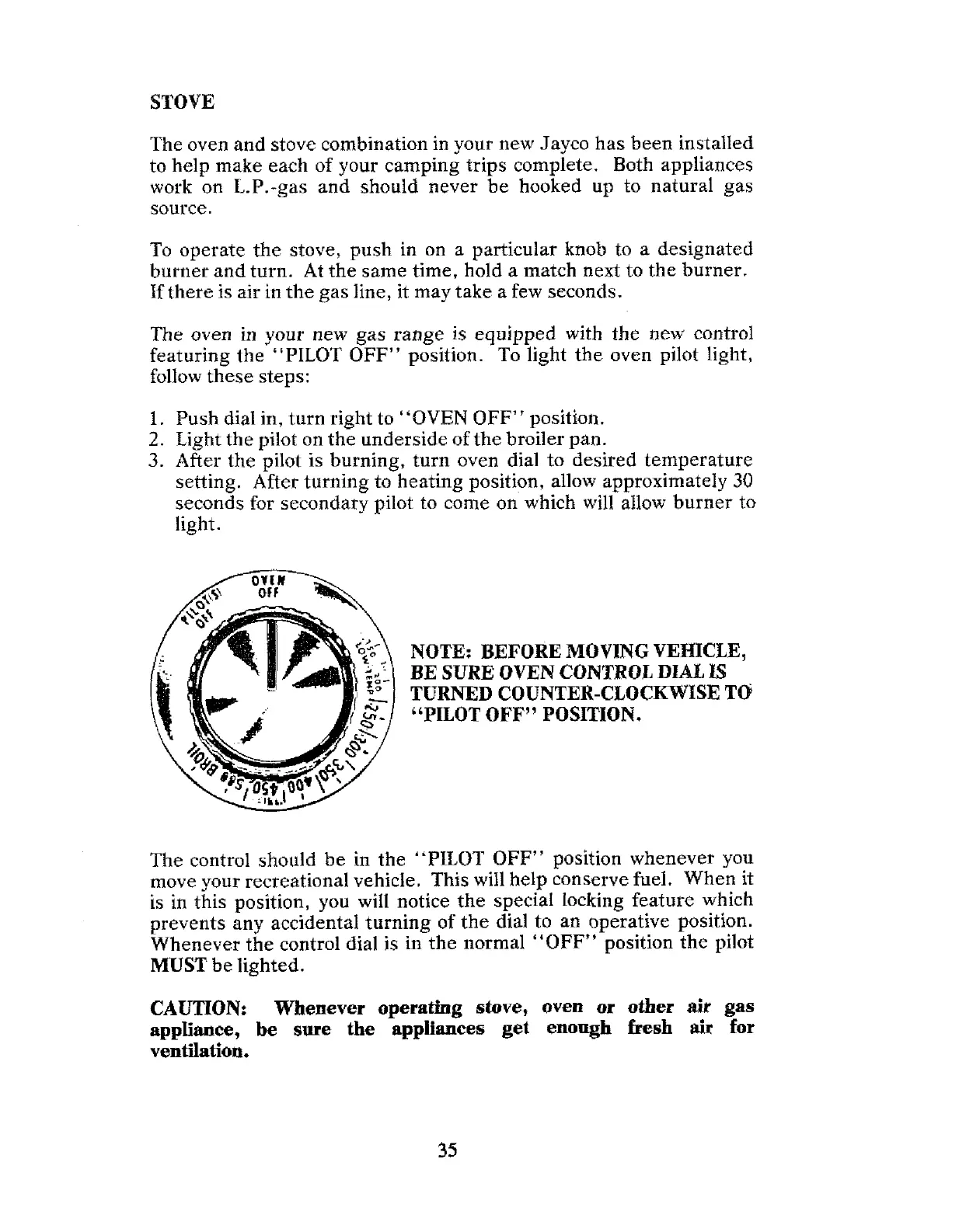

STOVE
The oven and stove combination in your new Jayco has been installed
to help make each
of your camping trips complete. Both appliances
work on L.P.-gas and should never be hooked up to natural
gas
source.
To operate the stove,
push in on a particular knob to a designated
burner and turn. At the same time, hold a match next to the burner.
If there is air in the gas line, it may take
a few seconds.
The
oven in your new gas range is equipped with the new control
featuring the "PILOT
OFF" position. To light the oven pilot light,
follow these steps:
Push dial
in, turn right to "OVEN OFF" position.
Light the pilot
on the underside of the broiler pan.
After the pilot is burning, turn oven dial to desired temperature
setting.
After turning to heating position, allow approximately 30
seconds for secondary pilot to come on which will allow burner to
light.
NOTE: BEFORE MOVING VEHICLE,
BE SURE OVEN CONTROL DIAL IS
TURNED COUNTER-CLOCKWISE TO
"PILOT OFF" POSITION.
The control should be in the "PILOT OFF" position whenever you
move your recreational vehicle. This will help conserve fuel. When it
is in this position, you will notice the special locking feature which
prevents any accidental turning
of the dial to an operative position.
Whenever the control dial
is in the normal "OFF" position the pilot
MUST be lighted.
CAUTION:
Whenever operating stove, oven or other air gas
appliance, be sure the appliances get enough fresh air for
ventiiation.
