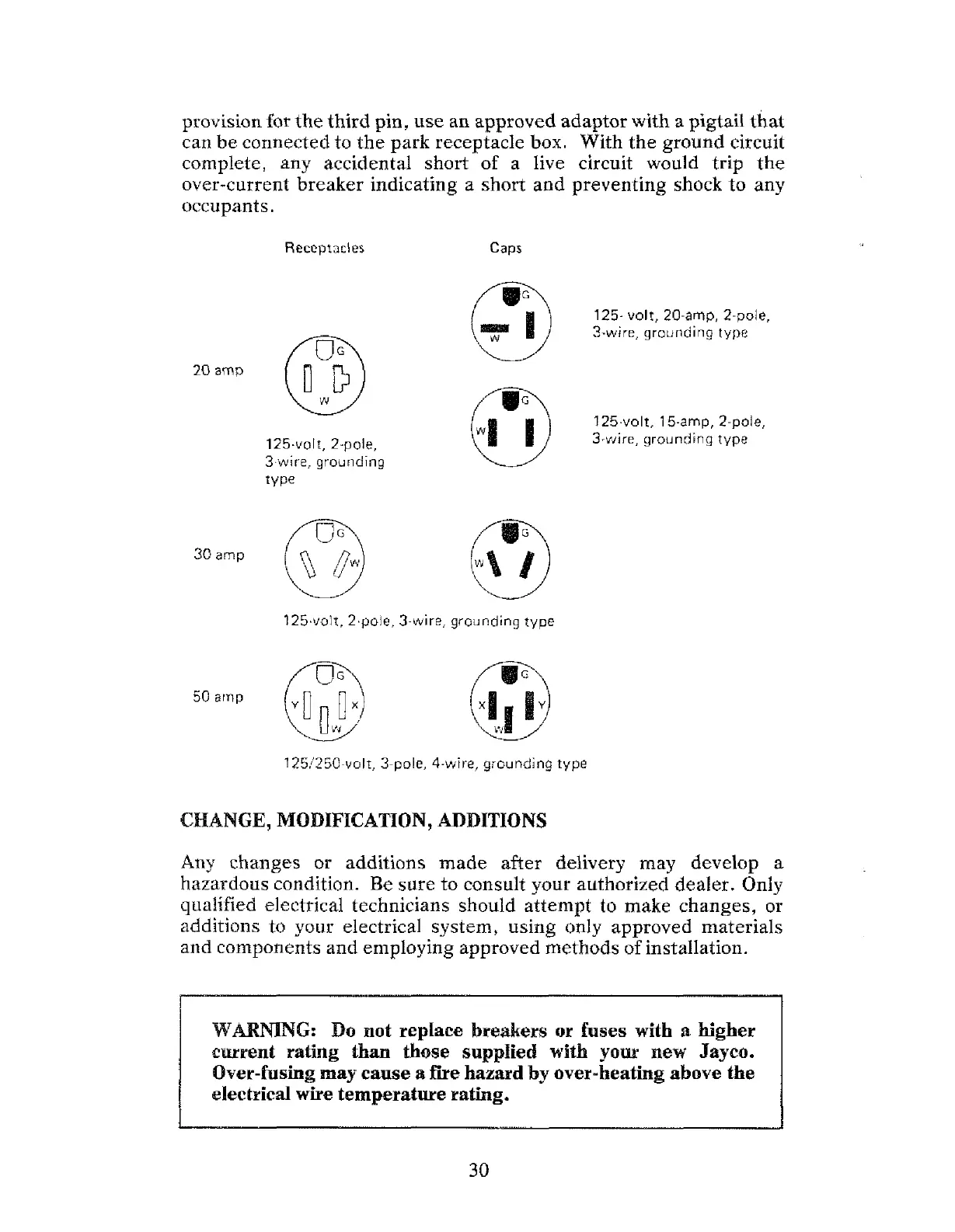

provision for the third pin, use an approved adaptor with a pigtail that
can be connected to the park receptacle box. With the ground circuit
complete,
any accidental short of a live circuit would trip the
over-current breaker indicating a short
and preventing shock to any
occupants.
Reccpmles Caps
125- volt, 20-amp, 2-pole,
3-wire, grounding type
20 amp
125.volt. 15-amp, 2-pole,
125-volt, 2-pole, 3-wire, grounding type
3.wire, grouriding
type
30 amp @
125.vol?, 2,poie, 3-wire, grounding type
125!250~volr, 3-pole, 4-wire, grounding type
CHANGE, MODIFICATION, ADDITIONS
Any changes or additions made afier delivery may develop a
hazardous condition. Be sure to consult your authorized dealer. Only
qualified electrical technicians should attempt to
make changes, or
additions
to your electrical system, using only approved materials
and components
and employing approved methods of installation.
WARMING: Do not reptam breakers ow fuses with a higher
current
rating than those supplied with yow new Jayco.
Over-fusing may cause a fire hazard by over-heating above the
electrical wire temperature rating.
