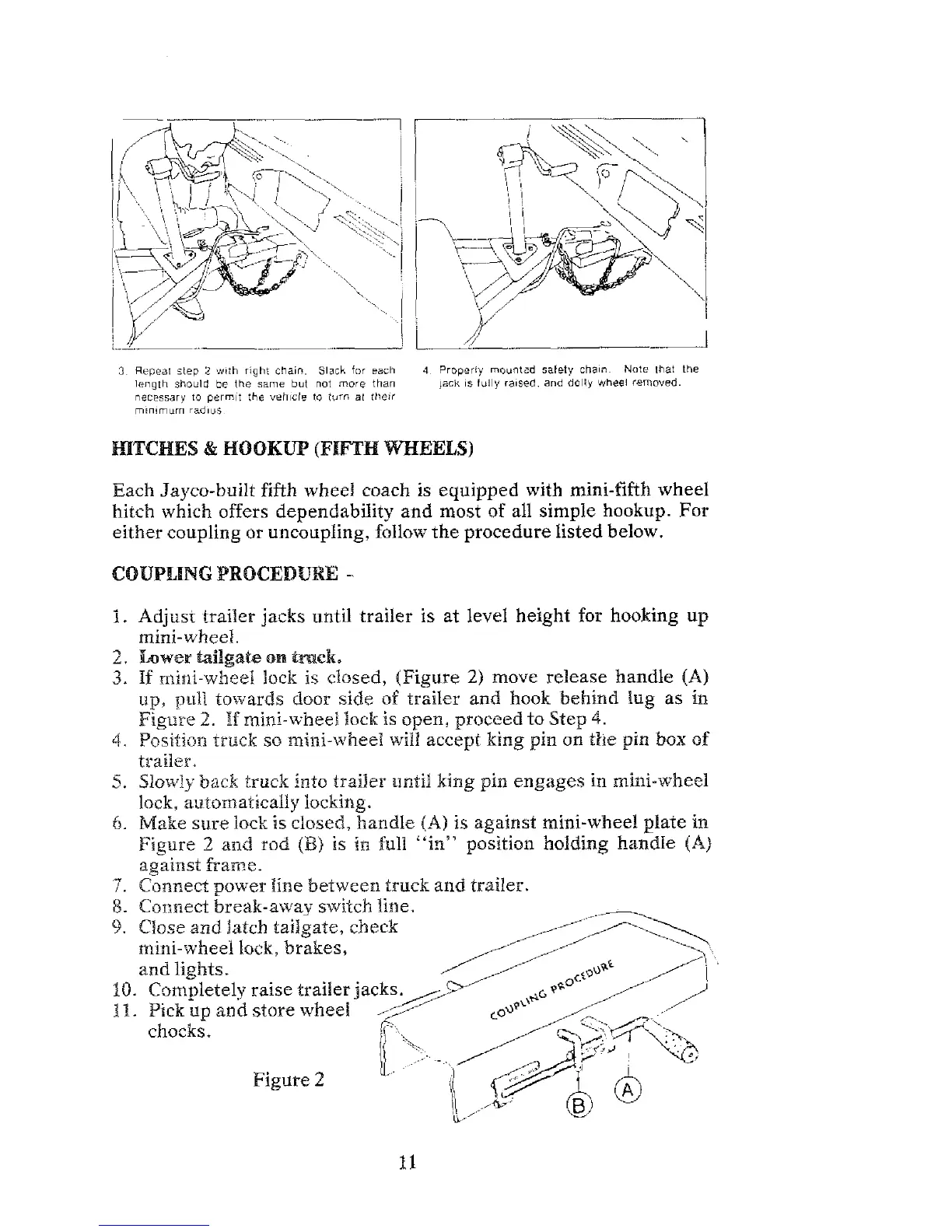

3 Reppal step 2 ,with raght c'la~n Slack f~r each
length should be the same but not more than
necessary to permi the veh~cl. to turr at 11:elr
rnrnimum radius
4 Properly rnolintzd safety cha~n Note lhat the
Jack 15 luly ra~seb. and dally wheel removed
Each Jayco-built fifth wheel coach is equipped with mini-fifth wheel
hitch which offers dependability and most of all simple hookup. For
either coupling or uncoupling,
follow the procedure listed below.
i. Adjust trailer jacks until trailer is at level height for hooking up
mini-wheel.
ilgate on tmek
3. If mini-wheel luck is closed, (Figure 2) move release handle (A)
up, pull towards door side of trailer and hook behind lug as in
Figure 2. If mini-wheel lock is open, proceed to Step 4.
4. Position truck so mini-wheel will accept king pin on the pin box of
trailer,
5. Slswiy back truck into trailer until king pin engages in mini-wheel
lock, automatically locking.
6. Make sure lock is closed, handle (A) is against: mini-whee! plate in
Figure 2 and rod jB) is in full "'in9* pssitian holding handle (A)
against frame.
7. Connect power line between &ruck and trailer.
8. Connect break-away switch line.
9. Close and latch tailgate, check
mini-wheel lock, brakes, /
and lights.
10. Completely raise trailer jacks
11. Pick up and store wheel
chocks.
Figure
2
