Jayco J-Series 1750 User Manual

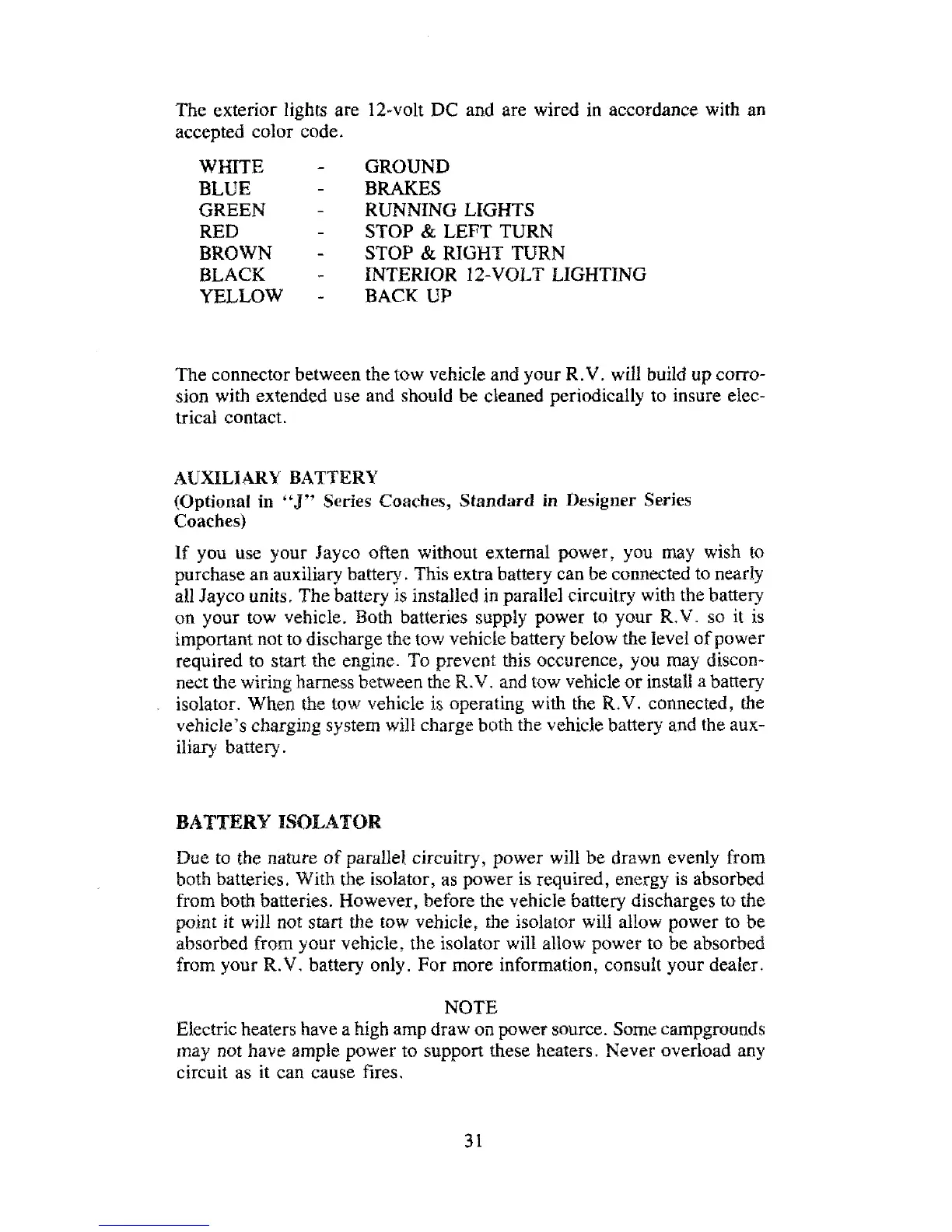

The exterior lights are 12-volt DC and are wired in accordance with an
accepted color code.
WHITE - GROUND
BLUE - BRAKES
GREEN - RUNNING LIGHTS
RED - STOP & LEFT TURN
BROWN - STOP & RIGHT TURN
BLACK
- INTERIOR 12-VOLT LIGHTING
YELLOW - BACK UP
The connector between the tow vehicle and your R.V. will build up corro-
sion with extended use and should be cleaned periodically to insure elec-
trical contact.
AUXILIARY BATTERY
(Optional in "J" Series Coaches, Standard in Designer Series
Coaches)
If you use your Jayco often without external power, you my wish to
purchase an auxiliary battery. This extra battery can be connected to nearly
a11 Jayco units. The battery is installed in parallel circuitry with the battery
on your tow vehicle. Both batteries supply power to your R.V. so it is
important not to discharge
the taw vehide battery below the Ievel of power
required
to start the engine. To prevent this occurence, you may discon-
nect the wiring harness between the R.V. and tow vehicle or install a battery
isolator.
When the tow vehicle is operating with the R.V. connected, the
vehicle's charging system will charge both the vehicle battery and the aux-
iliary battery.
BATTERY ISOLATOR
Due to the nature of parallel circuitry, power will be drawn evenly from
both batteries. With the isolator, as power is required, energy is absorbed
from
both bafteries. However, before the vehicle battery discharges to the
point it will not start the tow vehicle, she isolator will allow power to be
absorbed
from your vehicle, the isolator will allow power to be absorbed
from your
R.V. battery only. For more informatian, consult your dealer,
NOTE
Electric heaters have a high amp draw on power source. Some campgrounds
may not have ample power to support these heaters. Never overload any
circuit as
it can cause fires.
