1 0. SELECTION OF WIRE-O
®
SIZE 20
T

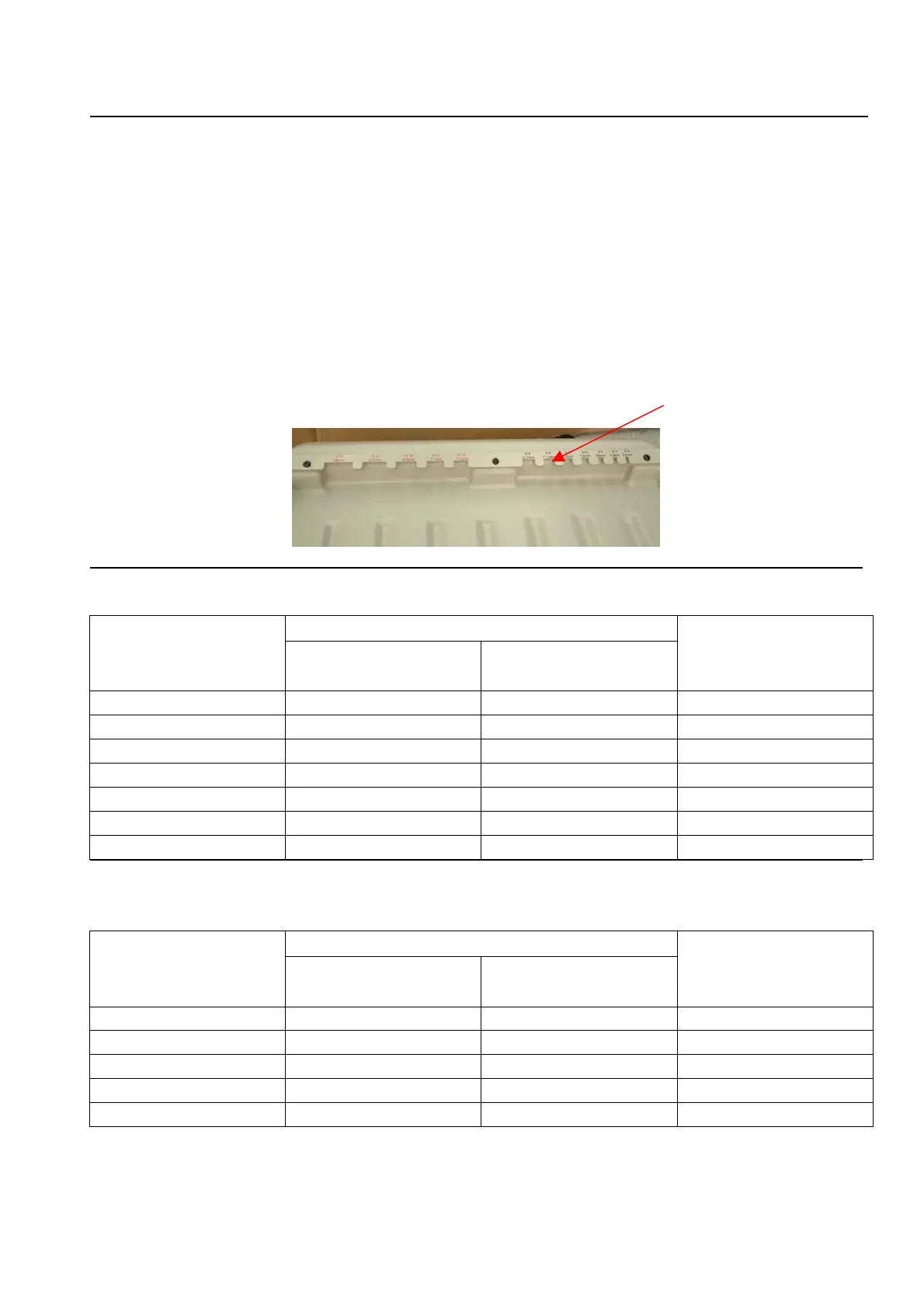

The selection of a correct size of WIRE-O® binding is important, in order to obtain a neat
presentation and a professionally finished book. A measuring gauge (capacity selector) is
provided at the rear of the paper tray to determine the correct size number.
10.1 Holding the complete book together with covers, determine which slot matches the
thickness of the book by sliding the book into the correct upright gap of the capacity
selector. It should be a secure fit, but not forced.
10.2 Read the correct Wire-O
®
size number.
Wire gauge
10.3 3:1 wire selection chart
Book Thickness Wire-O ®
Size no.
Ins Mm
Max. Sheets
80gsm paper
(excl.covers)
3 1/8 3.2 30
4 3/16 4.8 45
5 ¼ 6.4 60
6 5/16 7.9 75
7 3/8 9.5 85
8 7/16 11.1 100
9 1/2 12.7 120
10.4 2:1 wire selection chart
Book Thickness Wire-O ®
Size no.
Ins mm
Max. Sheets
80gsm paper
(excl.covers)
10 9/16 14.3 135
12 11/16 17.5 165
14 13/16 20.6 180
16 15/16 23.8 200
20 1"1/9 28.0 250
