5
. INSTALLING / CHANGING A PUNCH TOOL 13
5.1 Set the rocker switch in the backward position.
Press the foot pedal twice to allow the tool to go to its low position
5.2 Release the tool by turning the fixing pin anticlockwise.
5.3 Pull the tool by its handle slowly to remove it from the machine, placing your hand
underneath to support it.
Engage the new tool making sure that the tool bed plate chamfers are correctly positioned in
the lateral guiding rails and push it slowly until the tool stops (tool handle level with the
cover).
Turn the locking pin clockwise.

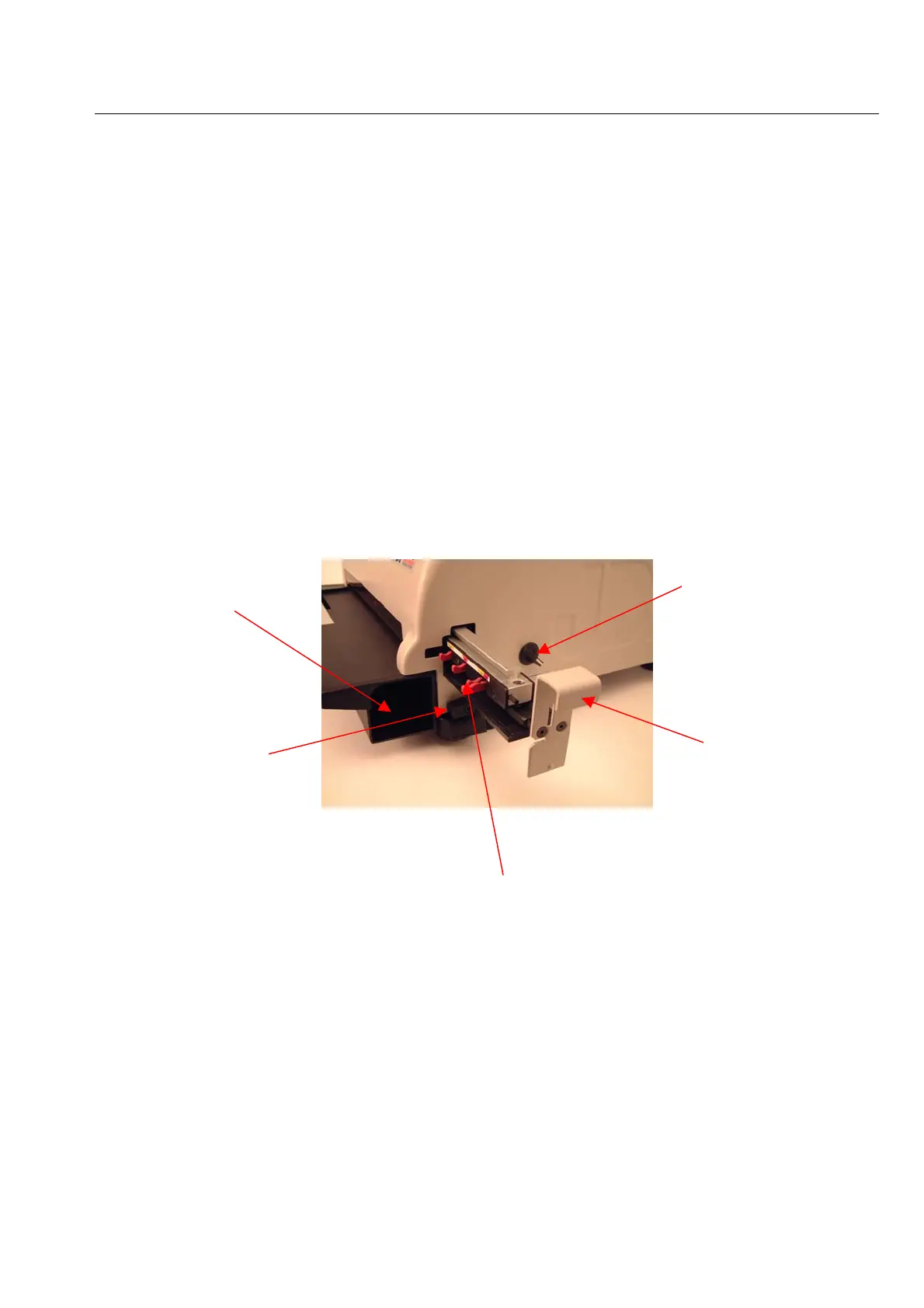

Rocker switch
Closing
clamp
Storage
tool box
Tool handle
Retractable pin
5.4 Set the rocker switch to the forward position and press the foot pedal once to put the tool in
its high position ready to punch.
