JBL EON 510 - EON510 Technical Specifications; EON510 Block Diagram

11
EON510 Specications
System Type: Self powered 10", two-way, bass-reex design
Frequency Range (-10 dB): 58 Hz - 18.5 kHz (EQ in ‘Flat’ position)
Frequency Response (±3 dB): 70 Hz - 17 kHz (EQ in ‘Flat’ position)
Coverage Pattern: 100º x 60º nominal
Directivity Index (DI): 9 dB
Directivity Factor (Q): 8
Crossover Frequency: 1.6 kHz
System Power Rating 280 W continuous, 560 W peak
LF Power amp 220 W continuous at driver impedance
HF Power amp 60 W continuous at driver impedance
Distortion: Less than 0.1% at rated power
Maximum SPL: 121 dB
Signal indicators:
Limit: Red LED indicates input overload condition
Signal: Green LED indicates signal present
Mic/Line: Red LED indicator
Input Gain (input 3):
Mic position: -innity to +40 dB
Line position: -innity to +4 dB (+20 dBu Max signal input)
Input Gain (input 1 & 2): -Innity to +4 dB (+20 dBu Max signal input)
Input Impedance: 64 K Ohms (balanced), 32 K Ohms (unbalanced)
Boost EQ:
LF +3 dB Shelving Filter @ 150
HF +2.5 dB Shelving Filter @ 4 kHz
Low Cut Filter Preset high pass @ 120 Hz
LF Driver: 1 x JBL 261F 254 mm (10 in) Differential Drive
®
integrated woofer with dual 1.5” voice coils.
HF Driver: 1 x JBL 2414H-1 25.4 mm (1 in) neodymium compression driver
Input 3 connector: Balanced XLR / ¼ inch TRS combo jack with XLR loop through
Input 1 & 2 connectors: Balanced ¼ inch TRS jack
Output (Loop/Mix switch): Balanced male XLR, +20 dBu (peak) o/p level in MIX position
XLR Pin Assignments: Pin 2(+), Pin 3(-), Pin 1(GND)
Limiting/Protection: Dynamic Limiter
Enclosure: PP impact copolymer, multi-purpose main & monitor orientation
Handles: One on top with rubber grip
Suspension/Mounting: 36 mm pole socket with stabilizing screw, 3 x M10 suspension points, 1 x M10 pull-back point
Grille: Powder coated perforated steel with acoustically transparent black screen backing.
AC input: 120-240 v, 50/60 Hz
Dimensions (H x W x D): 490 x 315 x 262 mm (19.3 in x 12.3 in x 10.3 in)
Net Weight: 7.7 kg (17 lb)

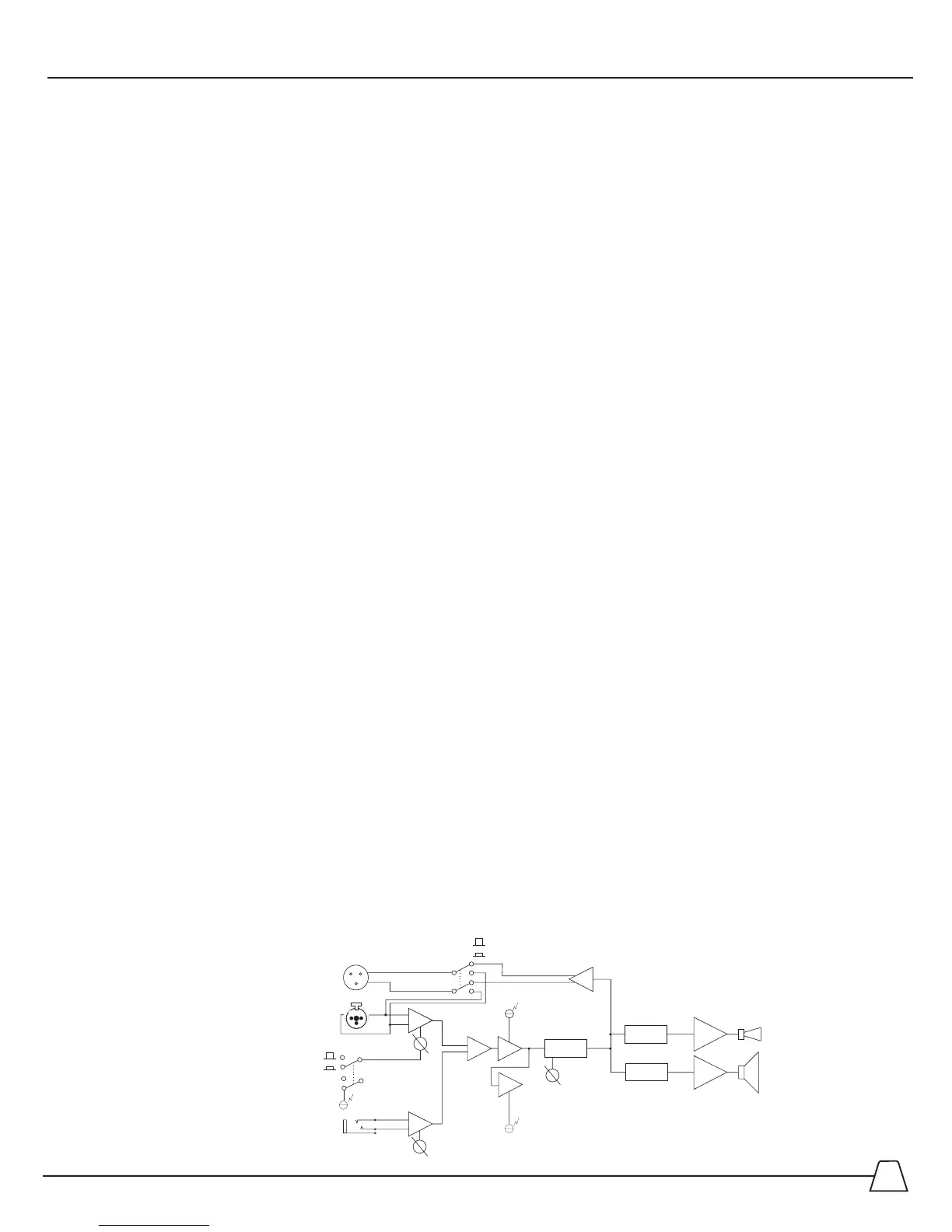

Block Diagram
MIC
SIGNAL
LEVEL 1 & 2
INPUT 3
OUT
LOOP
MIX
INPUT 1 & 2
BOOST
EQ
HPF
LEVEL 3
LF
HF
SUM
LINE
MIC
LPF
FLAT
CUT
LIMIT
SUM
