Clip, Christmas Tree
321814-001
LED Assembly
(Supplied with AMP)

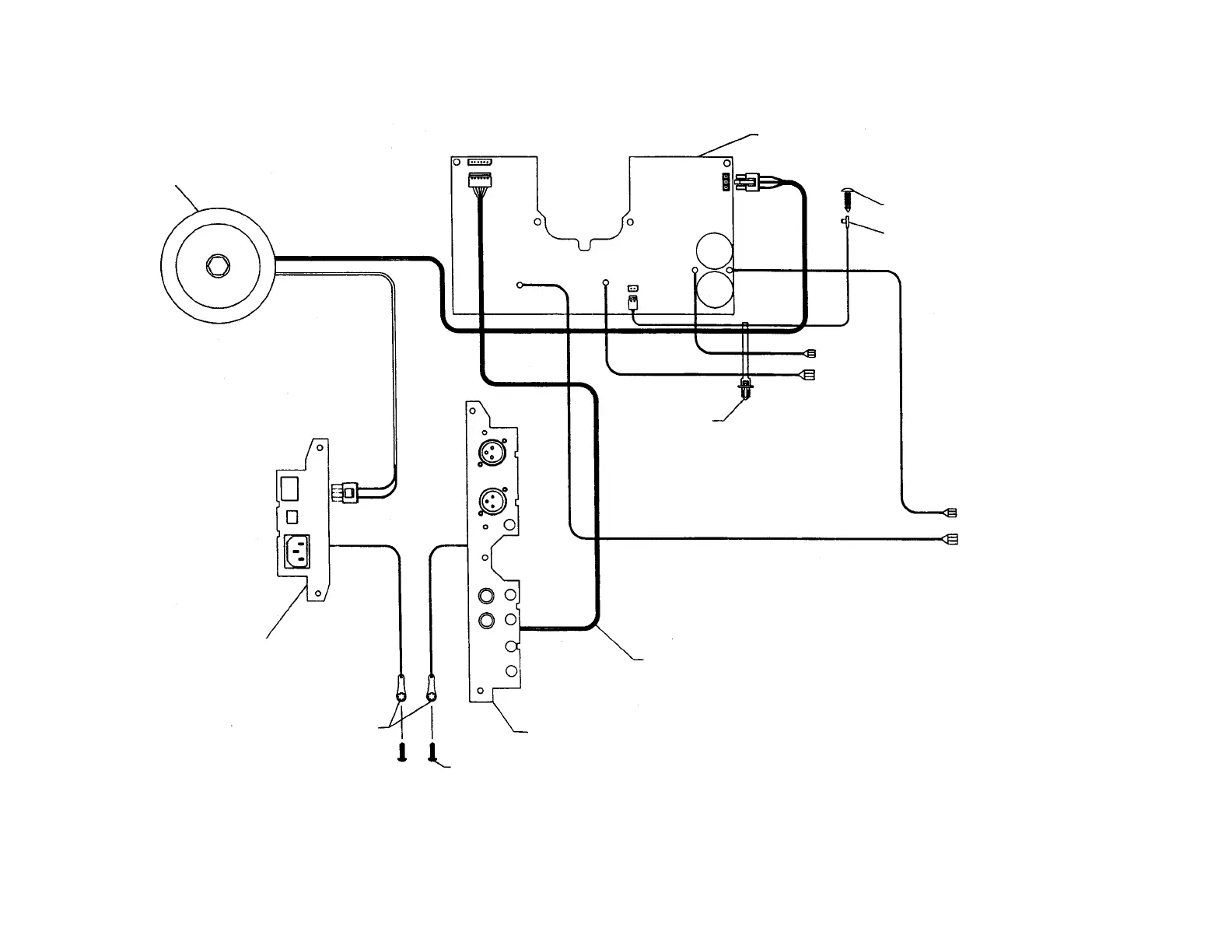

WIRE CONNECTION LAYOUT
Pictorial for Refference Only
L.F.
(Woofer/Baffle)
BLACK
WHITE
BLUE
RED
F .187 -
F .250 +
H.F. (2418H-1)
F .205 -
F .250 +
Amplifier PCA
Transformer
AC Power Input, PCA
Signal Input, PCA
Harness Assy
(Supplied with
Signal Input)
Tree Mount Tie
925-0000-00
Ground Wires
Connect to
Aluminum Baffle
Screw (2)
905002-006
10-32 x 3/8 PN PH
JBL EON15-G2
JBL EON15-G2
