JBL EON15 G2 Technical Manual

JBL EON15-G2
JBL EON15-G2

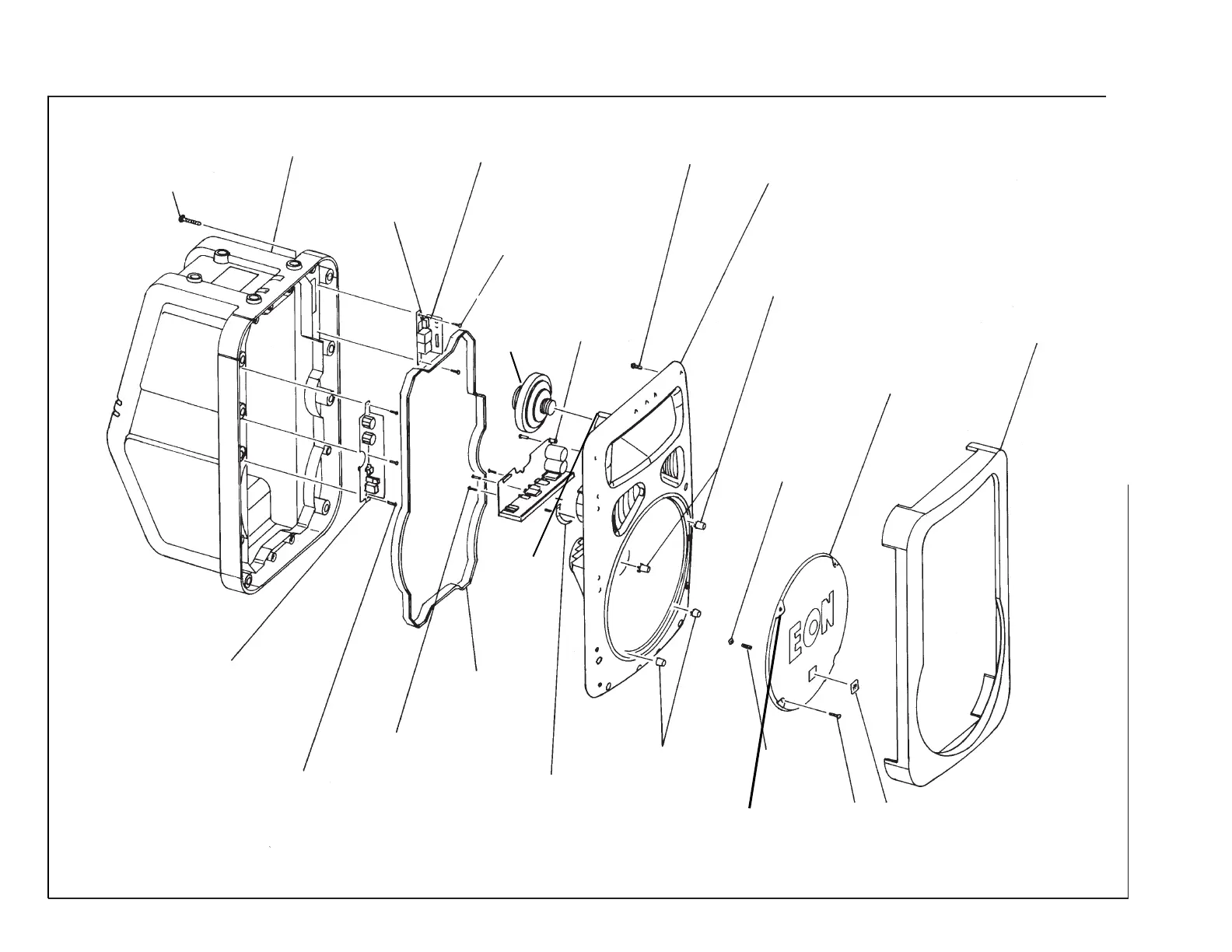

COMPONENT EXPLODED VIEW
Screw (18)
804-41110-20
10-32 x 1 1/4
PAN, PH, BLK
Screw (6)
864-41600-06
10-32 x 3/8 PN PH
Signal Input Assy
350317-001
Screw (2)
904902-010
MS, PPH,
10-16 x .63 ZINC
Screw (3)
904902-010
MS, PPH,
10-16 x .63 ZINC
Srew (12)
904902-010
MS, PPH
10-16 x .63 ZINC
Rear Enclousure
EON15-G2
380-90019-00
Label, 120V
EONG2
955-00150-00
AC Power Assy
EON15-G2
250-00001-01
Baffle Assy
With Cone
EON15-G2LF
Grille,
EON15-G2
128-00428-00
Spring
337972-001
Screw (2)
862-31210-20
6-20 x 1 1/4
BLK TR PH AB
Threaded
(Bottom)
Logo Grille F. EON
950-00004-00
Use P/N 321156-001
Fastener
Tinnerman
809-45310-00
Use P/N
809-90003-00
Standoff Long EON
811-90002-13
Standoff Short
EON15
811-90001-08
Use p/N
321266-001
Bezel, BLK
Copolymer;
EON15-G2
382-00358-00
Main AMP
Board Assy
EON15P-G2
339555-001
Gasket/EON15P
382-00015-00
Use P/N
321167-001
Spring Clip, EON
423-00003-00
Use P/N 321209-001
Screw (2)
905002-006
10-32 x 3/8
PN PH CLR ZN
Driver,
High Freq
2418H-1
Screw (2)
862-31210-24
6-20 X 1 1/2
TR ,PH AB
Threaded
(Top)
Gasket,
Clocking
338463-001

JBL EON15 G2 Specifications

General

Power Output	300W LF, 100W HF
Coverage Pattern	90° x 60°
LF Driver	15 inch
HF Driver	1 inch
Input Connectors	XLR, 1/4 inch TRS
System Type	Self-powered 2-way bass-reflex
Frequency Range (-10 dB)	39 Hz - 20 kHz
Amplifier Power	300 W
Woofer	15 inch
Outputs	XLR
Dimensions	686 x 438 x 366 mm
