• Balanced loop-through / mix output. “Daisy-chain” additional EON speakers or send the mixed
output to a mixing console.
• 90˚ x 60˚ (nominal) constant directivity horn.
• Thermomaster® Total Thermal Management System®. A single piece, cast-aluminum baffle
integrates the woofer frame, horn, and amplifier heat-sink. Air movement in the finned ports
dissipates heat - no internal or external cooling fans are required.
• Rugged, light-weight, black co-polymer enclosure with cast aluminum baffle.
• Integral 35mm pole mount receptacle with securing thumb screw.
• Multi-angle enclosure for front of house or stage monitor application.
•Tailored dynamic processing protects amplifiers and speakers from being over-driven without
producing extreme changes in frequency response as level varies.
• Extended low-frequency performance. Delivers powerful bass down to 39 Hz.
Specifications
Freq. Range (-10 dB): 39 Hz - 18 kHz Freq. Response (+3 dB): 42 Hz - 17 kHz
Horz. Coverage (-6 dB): 90˚ nominal Vert. Coverage (-6 dB): 60˚ nominal
Rated Maximum SPL: 129 dB, @ 1 m (3.3 ft)
Dimensions (H x W x D): 686 mm x 430 mm x 444 mm (27 in x 17 in x 17.5 in.)
Net Weight: 21 kg (46 lbs.)
LF Driver: Integral frame with one 15” (380 mm) driver, dual neodymium
magnet, 2” Differential-Drive® voice-coil.
HF Driver: JBL2418H-1 1” (throat diameter) compression driver with 1.75”
diameter titanium diaphragm. Ferro-fluid cooled.
Amplifier Power LF: 300 watts @ low-frequency driver impedance.
Amplifier Power HF: 100 watts @ high-frequency driver impedance.
Input 1 Sensitivity: -44 dBu to -22 dBu for rated output
(Mic/Line switch in MIC position)
-12 dBu to +20 dBu for rated output
(Mic/Line switch in LINE position)
Input 2 & 3 Sensitivity: -18 dBu to +20 dBu for rated output
Output Level: +20 dBu (peak), Loop/Mix switch in MIX position
Audio Connectors
Input 1 XLR/F, balanced
Input 2 & 3 1/4” Phone, balanced (TRS)
Crossover Freq. 1.5 kHz
Limiting Low frequency amplifier controlled by dynamic filiter
Loop/Mix Out XLR/M, balanced.
EQ: High Frequency Shelving, +
15
Low Frequency Shelving, +
15 dB
@ 120 Hz.
AC Input 110 - 230 VAC, 50 - 60 Hz., 175 watts rating per UL, dectachable IEC power cable

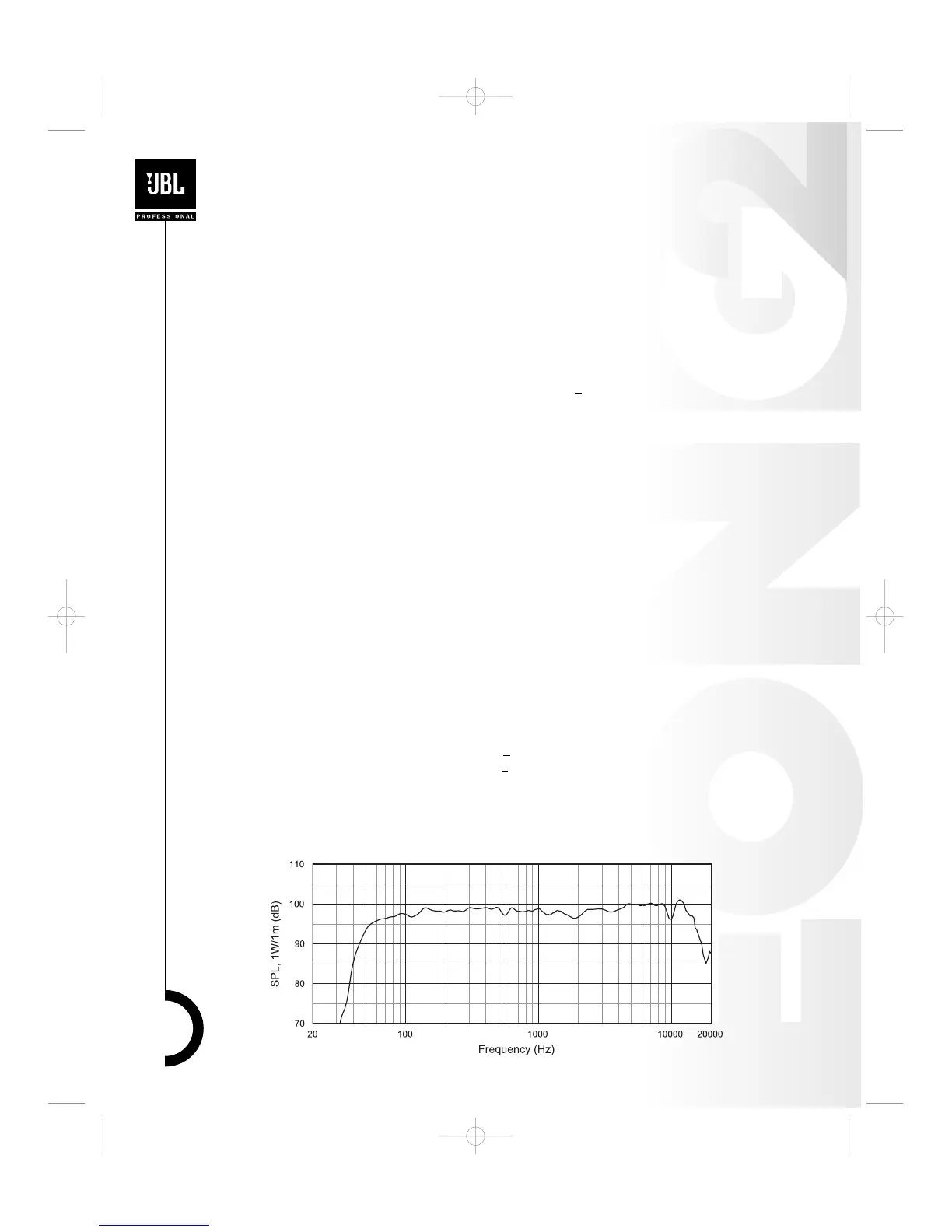

Frequency Response
6
