JBL PSW-D112 - PCB (Solder Side) PREAMP Rev1, PWRAMP Rev1

24
Amplifier/Subwoofer PSW-D112/DPS-12

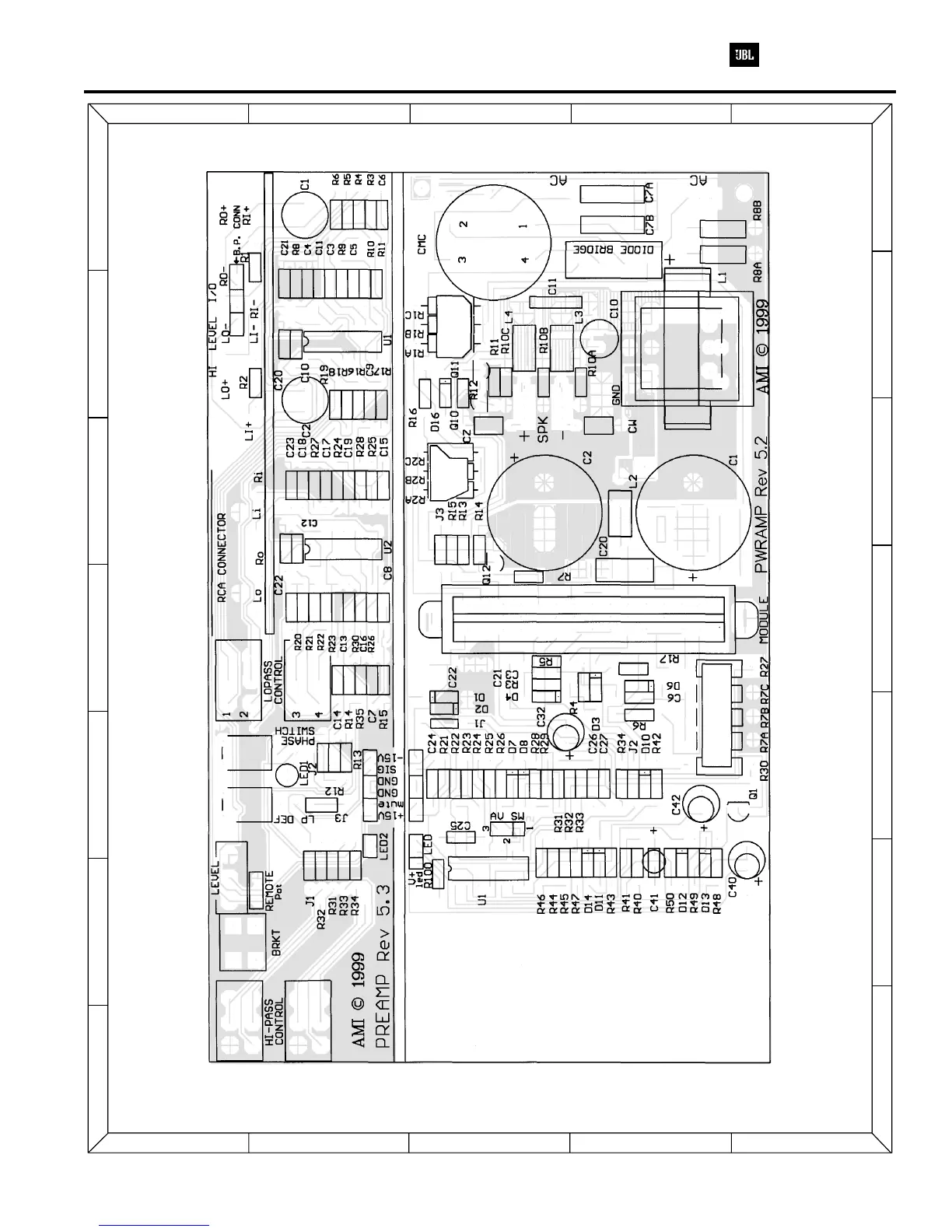

Rev1 - Solder Side Trace Layer as viewed through the board
5
5
4
4
3
3
2
2
1
1
A
A
B
B
C
C
D
D
E
E
F
F
G
G
PSW-D112/DPS-12 PCB (Solder Side) PREAMP Rev1, PWRAMP Rev1
