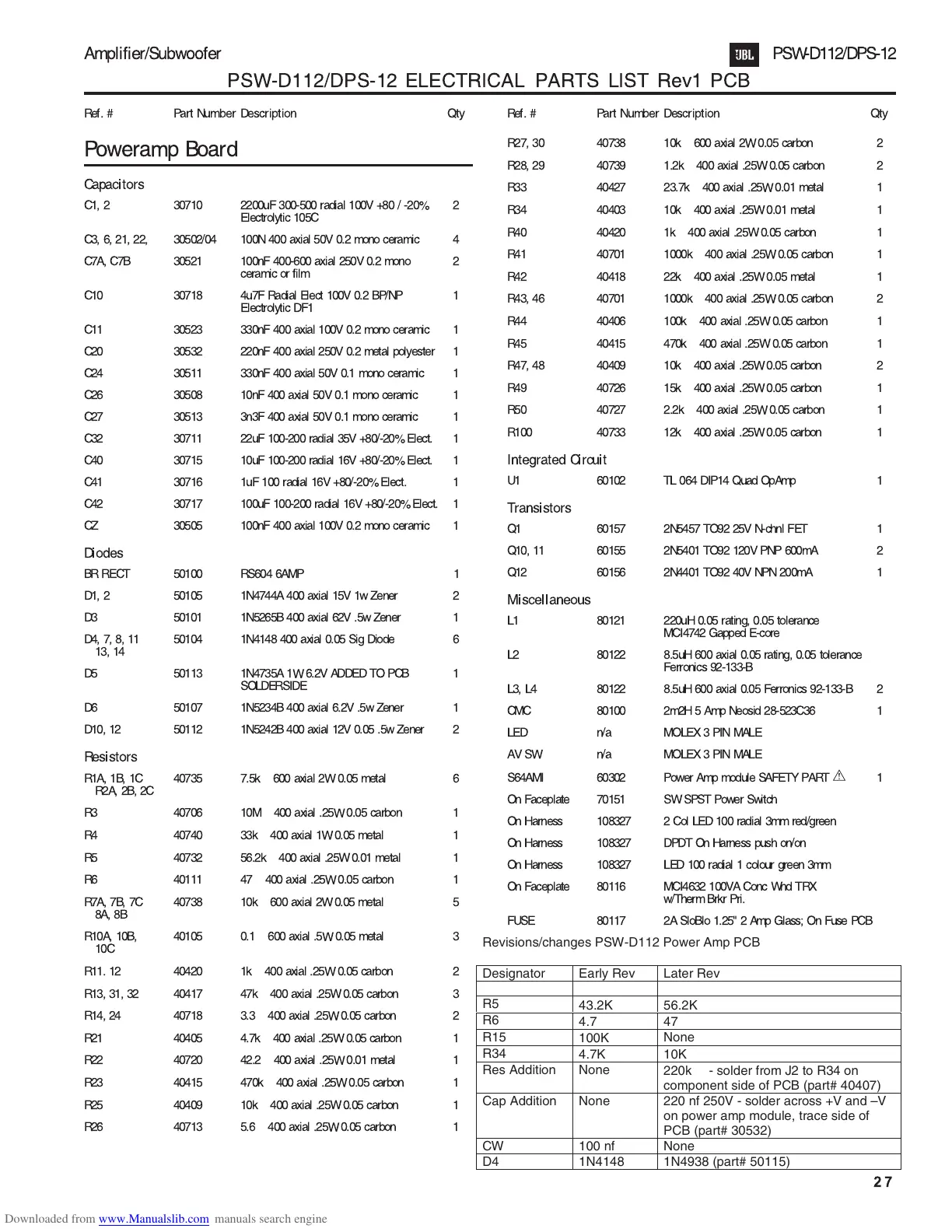

JBL PSW-D112 - ELECTRICAL PARTS LIST Rev1 PCB

PSW-D112/DPS-12 ELECTRICAL PARTS LIST Rev1 PCB
Poweramp Board
Capacitors
C1, 2 30710 2200uF 300-500 radial 100V +80 / -20% 2
Electrolytic 105C
C3, 6, 21, 22, 30502/04 100N 400 axial 50V 0.2 mono ceramic 4
C7A, C7B 30521 100nF 400-600 axial 250V 0.2 mono 2
ceramic or film
C10 30718 4u7F Radial Elect 100V 0.2 BP/NP 1
Electrolytic DF1
C11 30523 330nF 400 axial 100V 0.2 mono ceramic 1
C20 30532 220nF 400 axial 250V 0.2 metal polyester 1
C24 30511 330nF 400 axial 50V 0.1 mono ceramic 1
C26 30508 10nF 400 axial 50V 0.1 mono ceramic 1
C27 30513 3n3F 400 axial 50V 0.1 mono ceramic 1
C32 30711 22uF 100-200 radial 35V +80/-20% Elect. 1
C40 30715 10uF 100-200 radial 16V +80/-20% Elect. 1
C41 30716 1uF 100 radial 16V +80/-20% Elect. 1
C42 30717 100uF 100-200 radial 16V +80/-20% Elect. 1
CZ 30505 100nF 400 axial 100V 0.2 mono ceramic 1
Diodes
BR RECT 50100 RS604 6AMP 1
D1, 2 50105 1N4744A 400 axial 15V 1w Zener 2
D3 50101 1N5265B 400 axial 62V .5w Zener 1
D4, 7, 8, 11 50104 1N4148 400 axial 0.05 Sig Diode 6
13, 14
D5 50113 1N4735A 1W 6.2V ADDED TO PCB 1
SOLDERSIDE
D6 50107 1N5234B 400 axial 6.2V .5w Zener 1
D10, 12 50112 1N5242B 400 axial 12V 0.05 .5w Zener 2
Resistors
R1A, 1B, 1C 40735 7.5k 600 axial 2W 0.05 metal 6
R2A, 2B, 2C
R3 40706 10M 400 axial .25W 0.05 carbon 1
R4 40740 33k 400 axial 1W 0.05 metal 1
R5 40732 56.2k 400 axial .25W 0.01 metal 1
R6 40111 47 400 axial .25W 0.05 carbon 1
R7A, 7B, 7C 40738 10k 600 axial 2W 0.05 metal 5
8A, 8B
R10A, 10B, 40105 0.1 600 axial .5W 0.05 metal 3
10C
R11. 12 40420 1k 400 axial .25W 0.05 carbon 2
R13, 31, 32 40417 47k 400 axial .25W 0.05 carbon 3
R14, 24 40718 3.3 400 axial .25W 0.05 carbon 2
R21 40405 4.7k 400 axial .25W 0.05 carbon 1
R22 40720 42.2 400 axial .25W 0.01 metal 1
R23 40415 470k 400 axial .25W 0.05 carbon 1
R25 40409 10k 400 axial .25W 0.05 carbon 1
R26 40713 5.6 400 axial .25W 0.05 carbon 1
R27, 30 40738 10k 600 axial 2W 0.05 carbon 2
R28, 29 40739 1.2k 400 axial .25W 0.05 carbon 2
R33 40427 23.7k 400 axial .25W 0.01 metal 1
R34 40403 10k 400 axial .25W 0.01 metal 1
R40 40420 1k 400 axial .25W 0.05 carbon 1
R41 40701 1000k 400 axial .25W 0.05 carbon 1
R42 40418 22k 400 axial .25W 0.05 metal 1
R43, 46 40701 1000k 400 axial .25W 0.05 carbon 2
R44 40406 100k 400 axial .25W 0.05 carbon 1
R45 40415 470k 400 axial .25W 0.05 carbon 1
R47, 48 40409 10k 400 axial .25W 0.05 carbon 2
R49 40726 15k 400 axial .25W 0.05 carbon 1
R50 40727 2.2k 400 axial .25W 0.05 carbon 1
R100 40733 12k 400 axial .25W 0.05 carbon 1
Integrated Circuit
U1 60102 TL 064 DIP14 Quad OpAmp 1
Transistors
Q1 60157 2N5457 TO92 25V N-chnl FET 1
Q10, 11 60155 2N5401 TO92 120V PNP 600mA 2
Q12 60156 2N4401 TO92 40V NPN 200mA 1
Miscellaneous
L1 80121 220uH 0.05 rating, 0.05 tolerance
MCI4742 Gapped E-core
L2 80122 8.5uH 600 axial 0.05 rating, 0.05 tolerance
Ferronics 92-133-B
L3, L4 80122 8.5uH 600 axial 0.05 Ferronics 92-133-B 2
CMC 80100 2m2H 5 Amp Neosid 28-523C36 1
LED n/a MOLEX 3 PIN MALE
AV SW n/a MOLEX 3 PIN MALE
S64AMI 60302 Power Amp module SAFETY PART 1
On Faceplate 70151 SW SPST Power Switch
On Harness 108327 2 Col LED 100 radial 3mm red/green
On Harness 108327 DPDT On Harness push on/on
On Harness 108327 LED 100 radial 1 colour green 3mm
On Faceplate 80116 MCI4632 100VA Conc Wnd TRX
w/Therm Brkr Pri.
FUSE 80117 2A SloBlo 1.25" 2 Amp Glass; On Fuse PCB
27
Amplifier/Subwoofer PSW-D112/DPS-12
Ref. # Part Number Description Qty Ref. # Part Number Description Qty
Revisions/changes PSW-D112 Power Amp PCB
Designator Early Rev Later Rev
R5
43.2K 56.2K
R6
4.7 47
R15
100K
None
R34
4.7K 10K
Res Addition None
220k - solder from J2 to R34 on
component side of PCB (part# 40407)
Cap Addition None 220 nf 250V - solder across +V and –V
on power amp module, trace side of
PCB (part# 30532)
CW 100 nf None
D4 1N4148 1N4938 (part# 50115)
